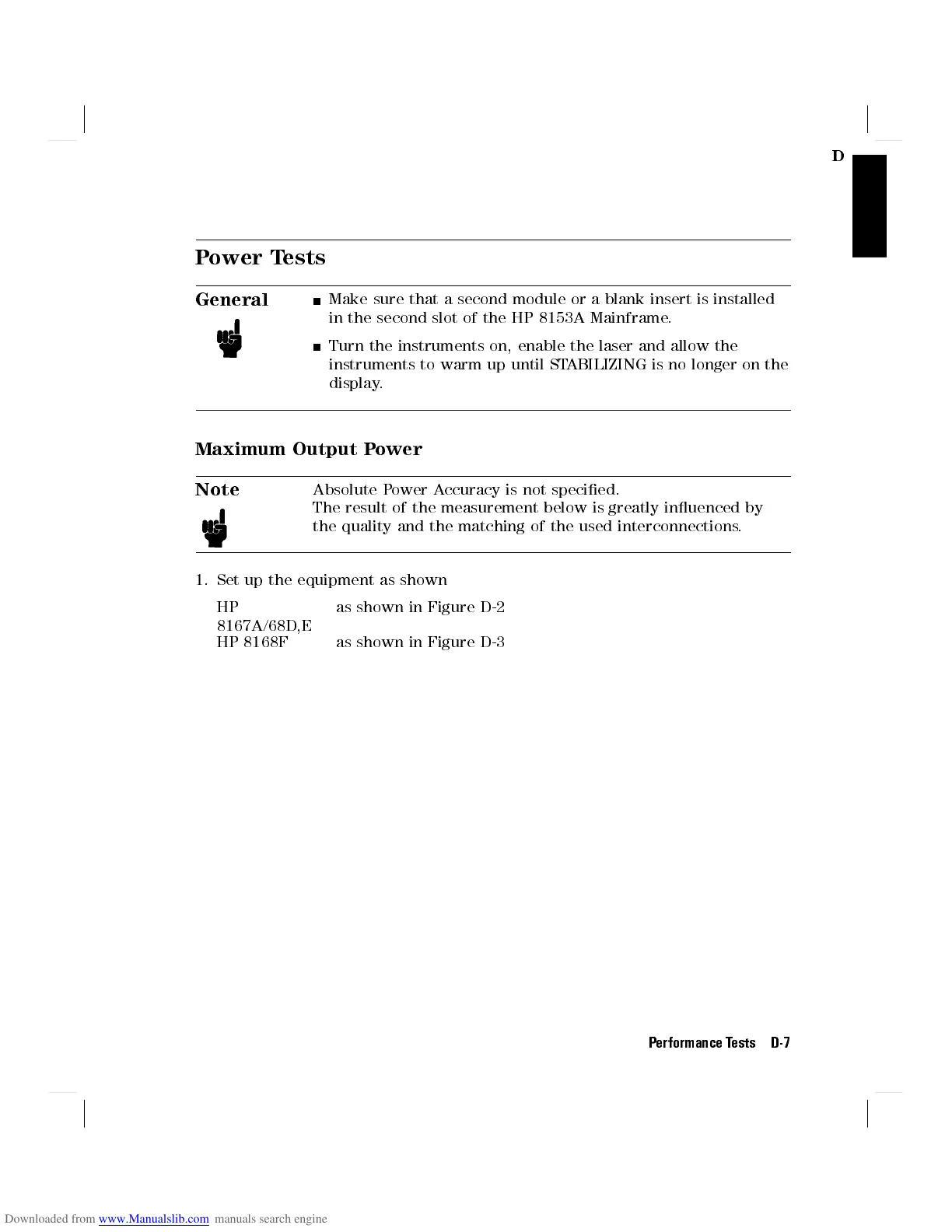

D
Power Tests
General
Make sure that a second module or a blank insert is installed
in the second slot of the HP 8153A Mainframe
.
Turn the instruments on, enable the laser and allow the
instruments to warm up until STABILIZING is no longer on the
display.
Maximum Output Power
Note
Absolute Power Accuracy is not specied.
The result of the measurement below is greatly inuenced by
the quality and the matching of the used interconnections
.
1. Set up the equipment as shown
HP
8167A/68D,E
as shown in Figure D-2
HP 8168F as shown in Figure D-3
Performance Tests D-7
