D

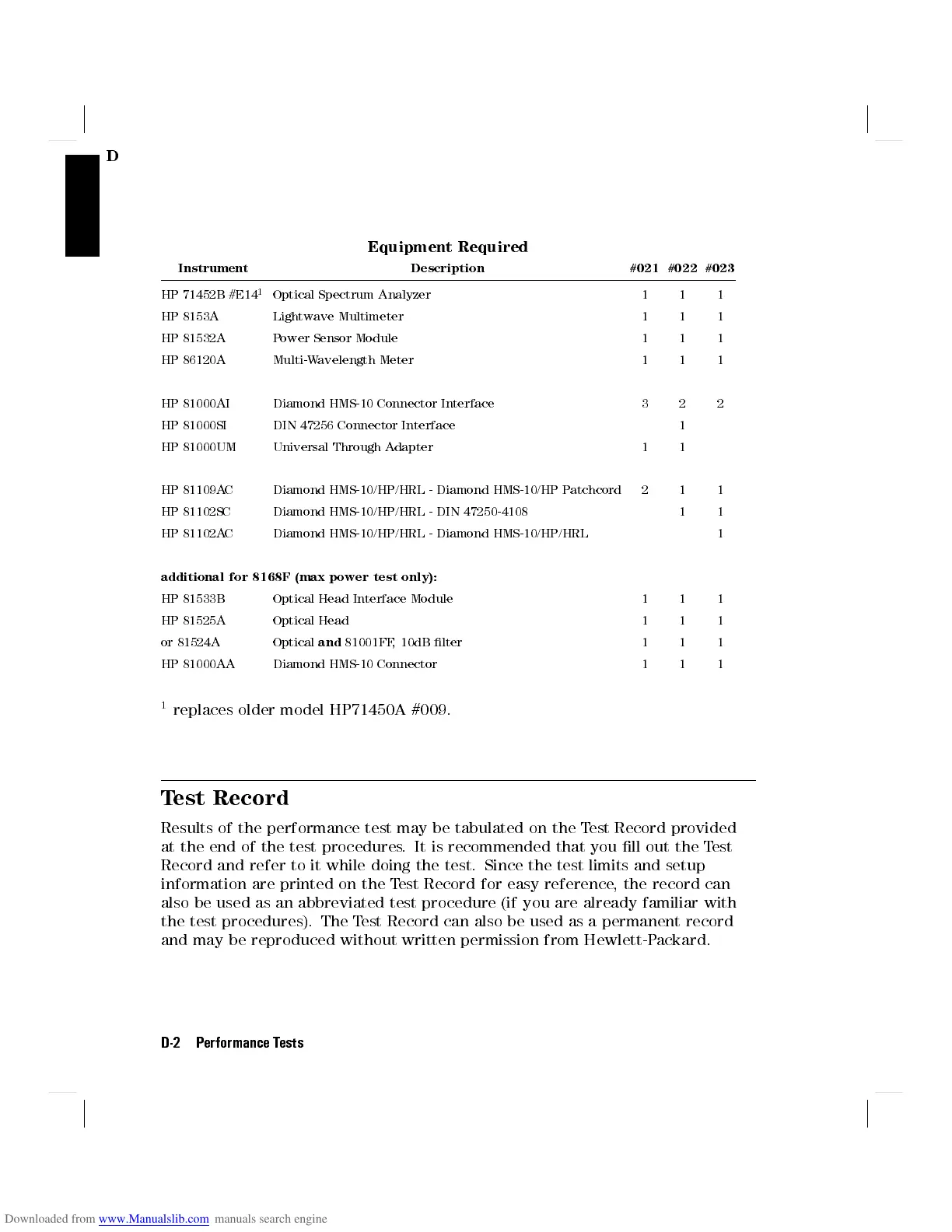

Equipment Required
Instrument Description #021 #022 #023
HP 71452B #E14
1
Optical Spectrum Analyzer 1 1 1
HP 8153A Lightwave Multimeter 1 1 1
HP 81532A Power Sensor Module 1 1 1
HP 86120A Multi-Wavelength Meter 1 1 1
HP 81000AI Diamond HMS-10 Connector Interface 3 2 2
HP 81000SI DIN 47256 Connector Interface 1
HP 81000UM Universal Through Adapter 1 1
HP 81109AC Diamond HMS-10/HP/HRL - Diamond HMS-10/HP Patchcord 2 1 1
HP 81102SC Diamond HMS-10/HP/HRL - DIN 47250-4108 1 1
HP 81102AC Diamond HMS-10/HP/HRL - Diamond HMS-10/HP/HRL 1
additional for 8168F (max power test only):
HP 81533B Optical Head Interface Module 1 1 1
HP 81525A Optical Head 1 1 1
or 81524A Optical
and
81001FF, 10dB lter 1 1 1
HP 81000AA Diamond HMS-10 Connector 1 1 1
1
replaces older model HP71450A #009.
Test Record
Results of the performance test may be tabulated on the Test Record provided
at the end of the test procedures. It is recommended that you ll out the Test
Record and refer to it while doing the test. Since the test limits and setup
information are printed on the Test Record for easy reference, the record can
also be used as an abbreviated test procedure (if you are already familiar with
the test procedures). The Test Record can also be used as a permanent record
and may be reproduced without written permission from Hewlett-Packard.
D-2 Performance Tests
