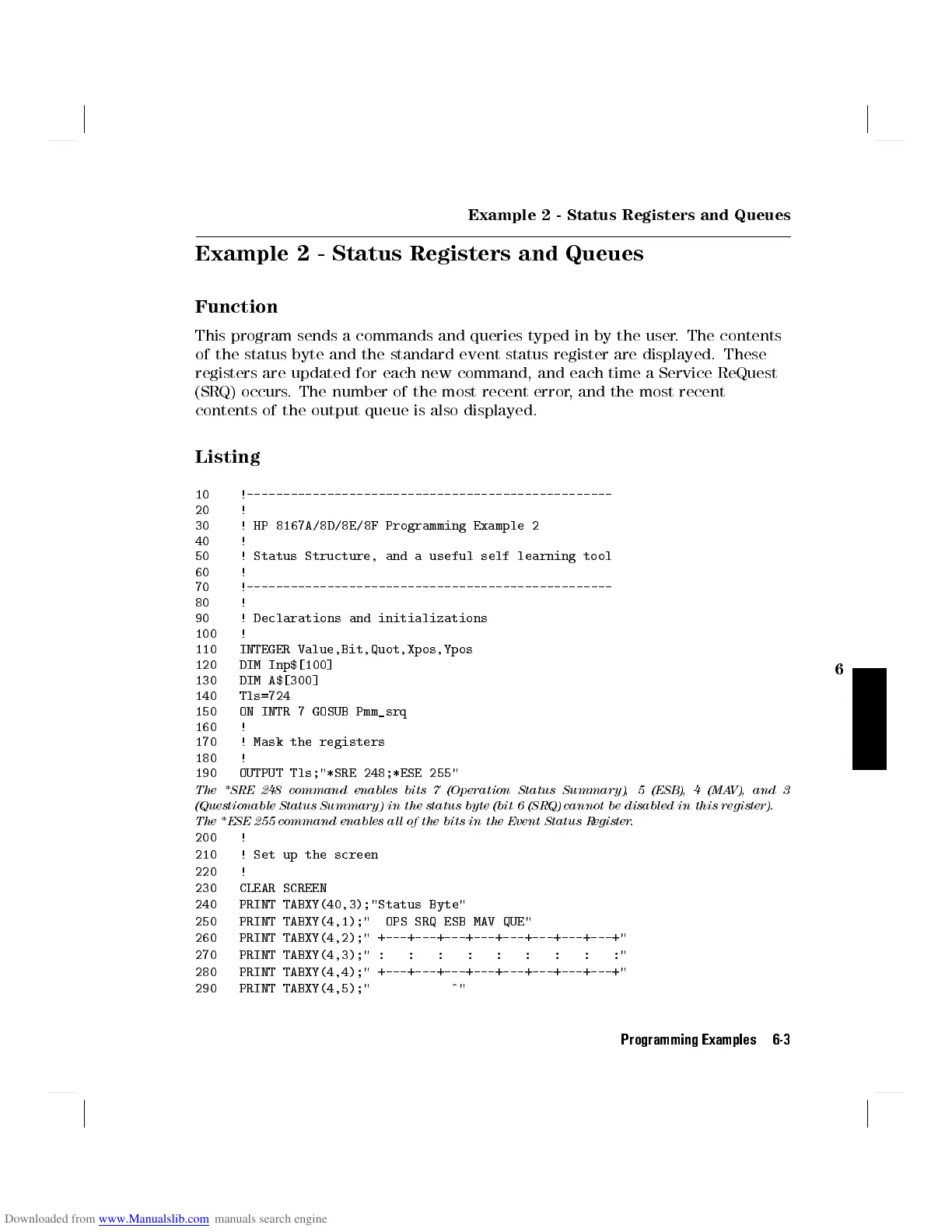

Example 2 - Status Registers and Queues
Example 2 - Status Registers and Queues
Function
This program sends a commands and queries typed in by the user. The contents
of the status byte and the standard event status register are displayed. These
registers are updated for each new command, and each time a Service ReQuest
(SRQ) occurs. The number of the most recent error, and the most recent
contents of the output queue is also displayed.
Listing
10 !--------------------------------------------------
20 !
30 ! HP 8167A/8D/8E/8F Programming Example 2
40 !
50 ! Status Structure, and a useful self learning tool
60 !
70 !--------------------------------------------------
80 !
90 ! Declarations and initializations
100 !
110 INTEGER Value,Bit,Quot,Xpos,Ypos
120 DIM Inp$[100]
130 DIM A$[300]
140 Tls=724
150 ON INTR 7 GOSUB Pmm_srq
160 !
170 ! Mask the registers
180 !
190 OUTPUT Tls;"*SRE 248;*ESE 255"
The *SRE 248 command enables bits 7 (Operation Status Summary), 5 (ESB), 4 (MAV), and 3
(Questionable Status Summary) in the status byte (bit 6 (SRQ) cannot be disabled in this register).
The *ESE 255 command enables all of the bits in the Event Status Register.
200 !
210 ! Set up the screen
220 !
230 CLEAR SCREEN
240 PRINT TABXY(40,3);"Status Byte"
250 PRINT TABXY(4,1);" OPS SRQ ESB MAV QUE"
260 PRINT TABXY(4,2);" +---+---+---+---+---+---+---+---+"
270 PRINT TABXY(4,3);" : : : : : : : : :"
280 PRINT TABXY(4,4);" +---+---+---+---+---+---+---+---+"
290 PRINT TABXY(4,5);" ^"
