HP 8168E - Remote Commands

5
5

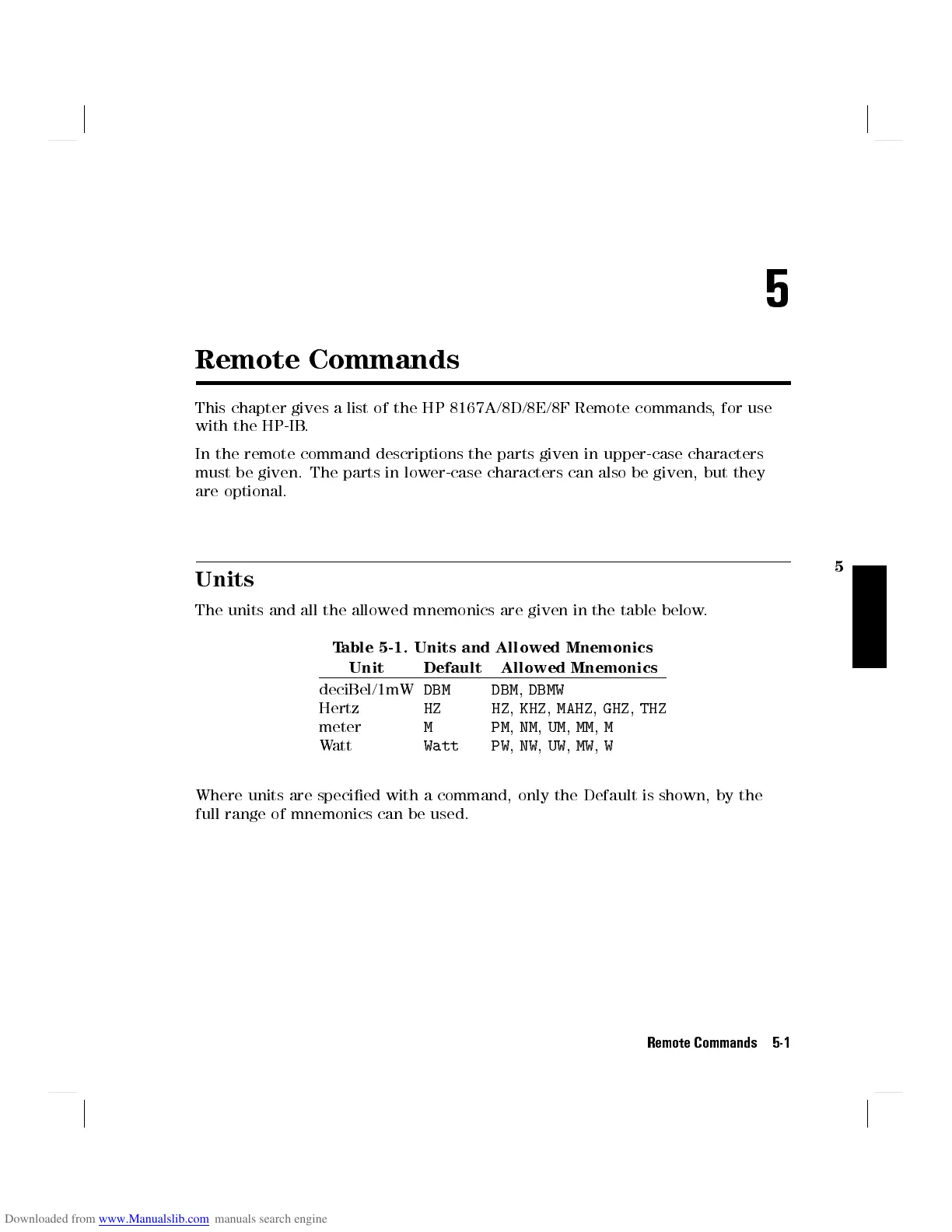

Remote Commands
This chapter gives a list of the HP 8167A/8D/8E/8F Remote commands, for use
with the HP-IB.
In the remote command descriptions the parts given in upper-case characters
must be given. The parts in lower-case characters can also be given, but they
are optional.
Units
The units and all the allowed mnemonics are given in the table below
.
Table 5-1. Units and Allowed Mnemonics
Unit Default Allowed Mnemonics
deciBel/1mW DBM DBM , DBMW
Hertz HZ HZ , KHZ , MAHZ , GHZ , THZ
meter M PM , NM , UM , MM , M
Watt Watt PW , NW , UW , MW , W
Where units are specied with a command, only the Default is shown, by the
full range of mnemonics can be used.
Remote Commands 5-1
