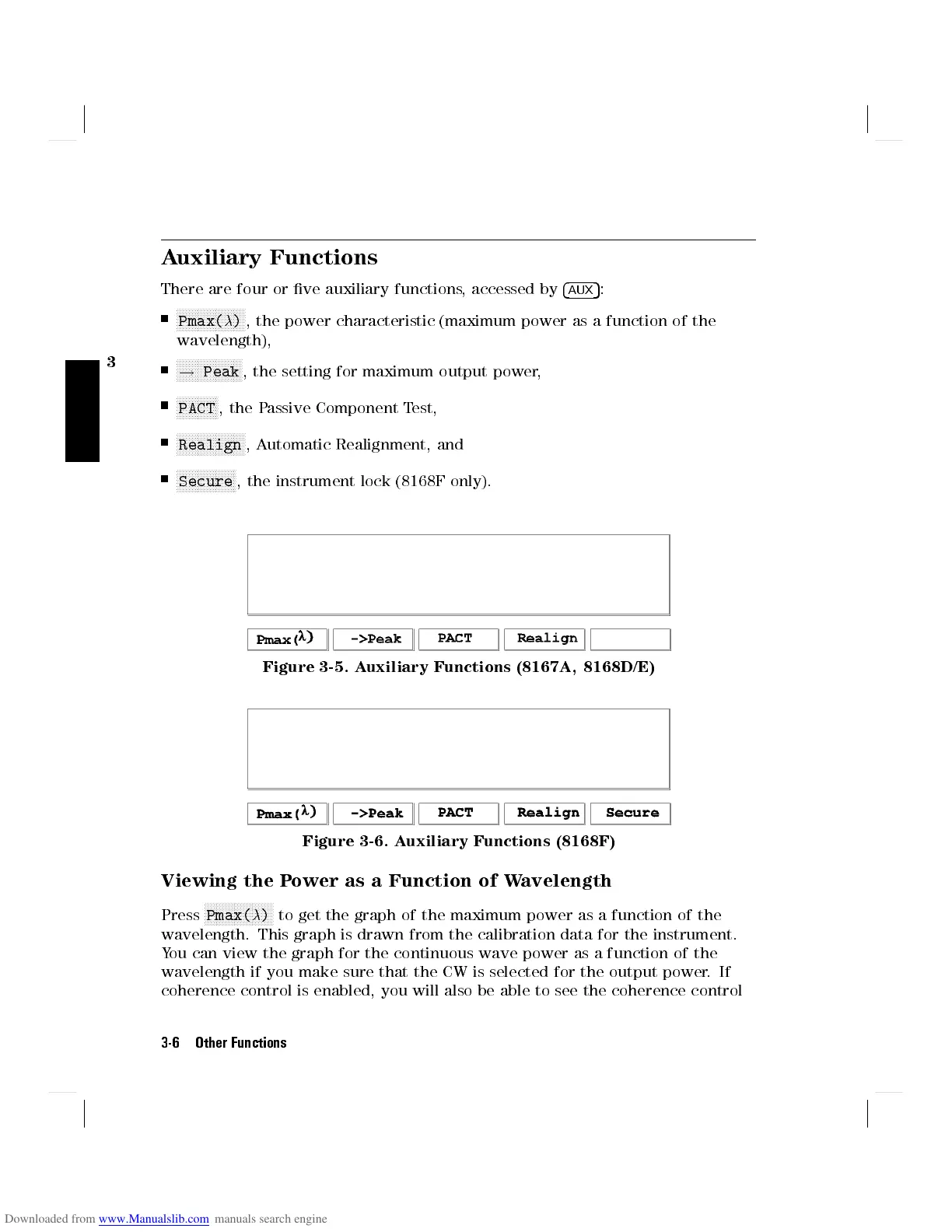

Auxiliary Functions
There are four or ve auxiliary functions, accessed by 4
AUX
5 :
NNNNNNNNNNNNNNNNNNNNNNN
Pmax(  ) , the power characteristic (maximum power as a function of the
wavelength),
NNNNNNNNNNNNNNNNNNNNNN
! Peak , the setting for maximum output power,
NNNNNNNNNNNNNN
PACT , the Passive Component Test,
NNNNNNNNNNNNNNNNNNNNNNN
Realign ,Automatic Realignment, and
NNNNNNNNNNNNNNNNNNNN
Secure , the instrument lock (8168F only).
Figure 3-5. Auxiliary Functions (8167A, 8168D/E)
Figure 3-6. Auxiliary Functions (8168F)
Viewing the Power as a Function of Wavelength
Press
NNNNNNNNNNNNNNNNNNNNNNN
Pmax(  ) to get the graph of the maximum power as a function of the
wavelength. This graph is drawn from the calibration data for the instrument.
You can view the graph for the continuous wave power as a function of the
wavelength if you make sure that the CW is selected for the output power.If
coherence control is enabled, you will also be able to see the coherence control
3-6 Other Functions
