Channel Measurements
Making Channel Measurements
6. Press MAIN MENU to exit the test.
83:29:56 JAN 12. 1993
& CHRNNEL m (STD)
REF 22.7 dEmV ATTEN IO dB
MKR A 18.8E kHz =
-37.73 dB
MAIN
MENU
CENTER 67.23675 NHz
SPAN 5B.BB kHz
RES SW i.B kHz
YUBW 10 Hz SWP 15.8 5cc

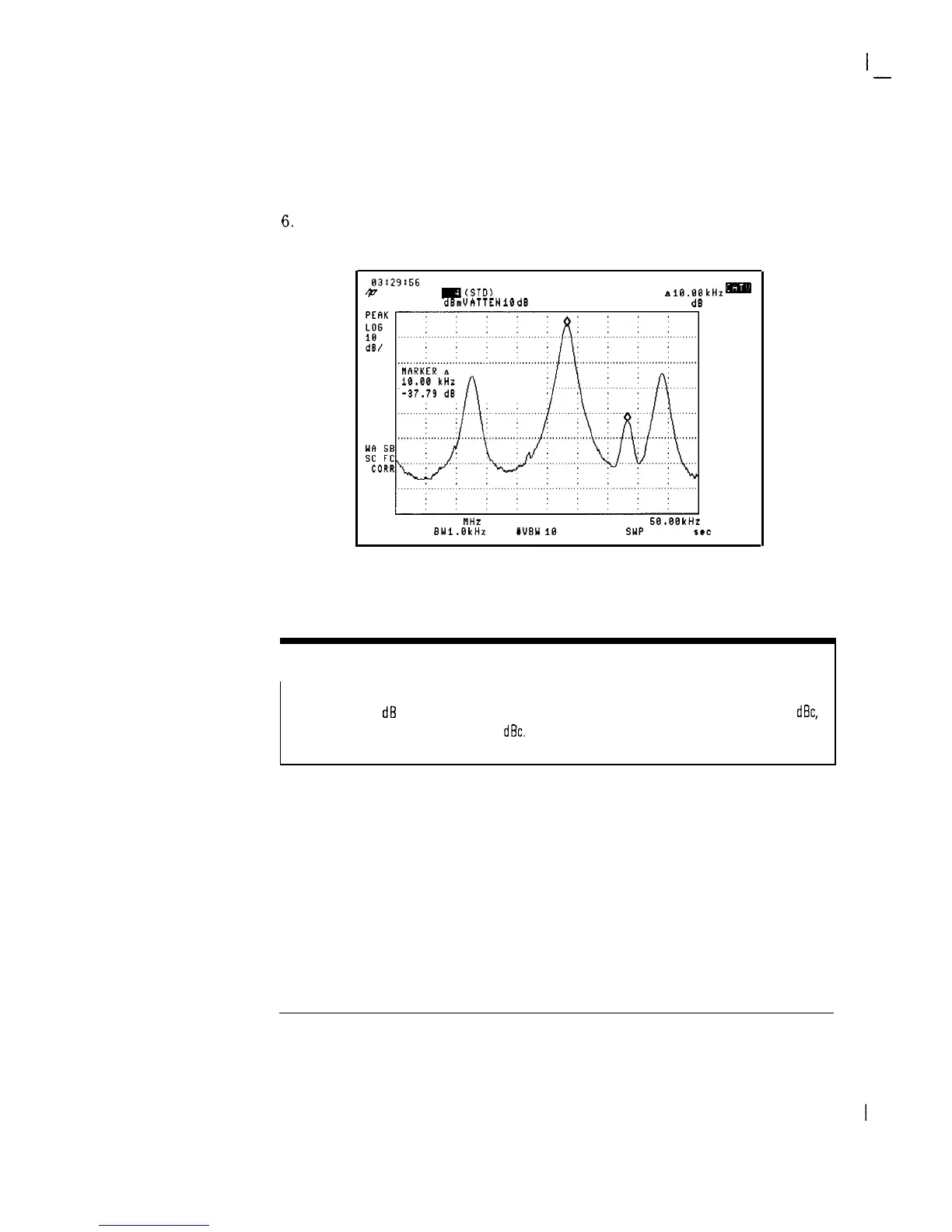

Figure 2-41. View Co-Channel Measurement
NOTE
Because of the minimum hold function used in this measurement, the delta marker display is
approximately 3 dB lower than the actual signal level. For example, if the marker displays -50 dBc,
the actual signal level is closer to -47 dBc.
2-61
