HP 8591C User Manual

I
-
Channel Measurements Menu Map and Softkey Descriptions
Channel Measurements Softkey Function Descriptions
15:
k
34: 37 NOV 23. 1993
MKR A -289.4 MHZ
REF 48.5 dBmV AT 10 dB -.49 d8
PEAK
LOG
dB/
MARKER A
40.5
dBmV
WA VB
SYSTEY FRE3UENCY RES’ONSE
YEASUREMENT IN ?ROGRESZ
CENTER 239.5 MHz SPAN 371.0 MHz
#RES BW 5.0 MHz XVBW 1 MHz #SWP 8 00 set
CONTS
SWEEP
CENTER
FREQ
MARKER
ON
MARKER
MARKER
OFF
STOP
TEST

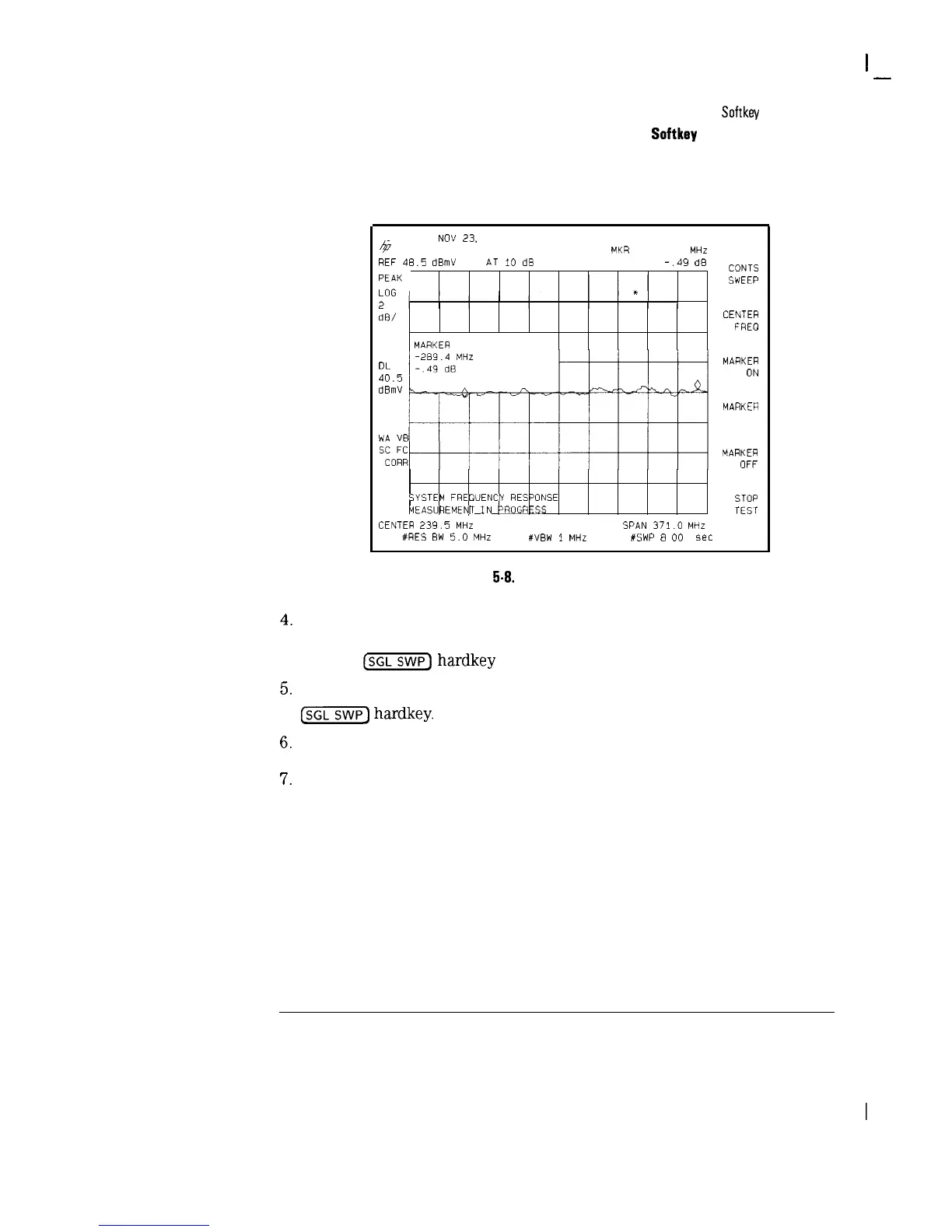

Figure 5-8. System Frequency Response
4. Pressing MARKER ON or MARKER DELTA assists the operator to End the
peak-to-valley values using the marker. For ease of use, it is recommended
to press (SGLSWP) hardkey before using these keys.
5. Pressing CONTS SWEEP restarts the sweep after having pressed the
@i’GZr] hardkey.
6. Pressing MARKER OFF turns the marker off.
7. To stop the test, press STOP TEST . This will stop the measurement and
display the frequency response trace.
8. The results can now be stored to internal memory, memory card, or
printed.
5-15
