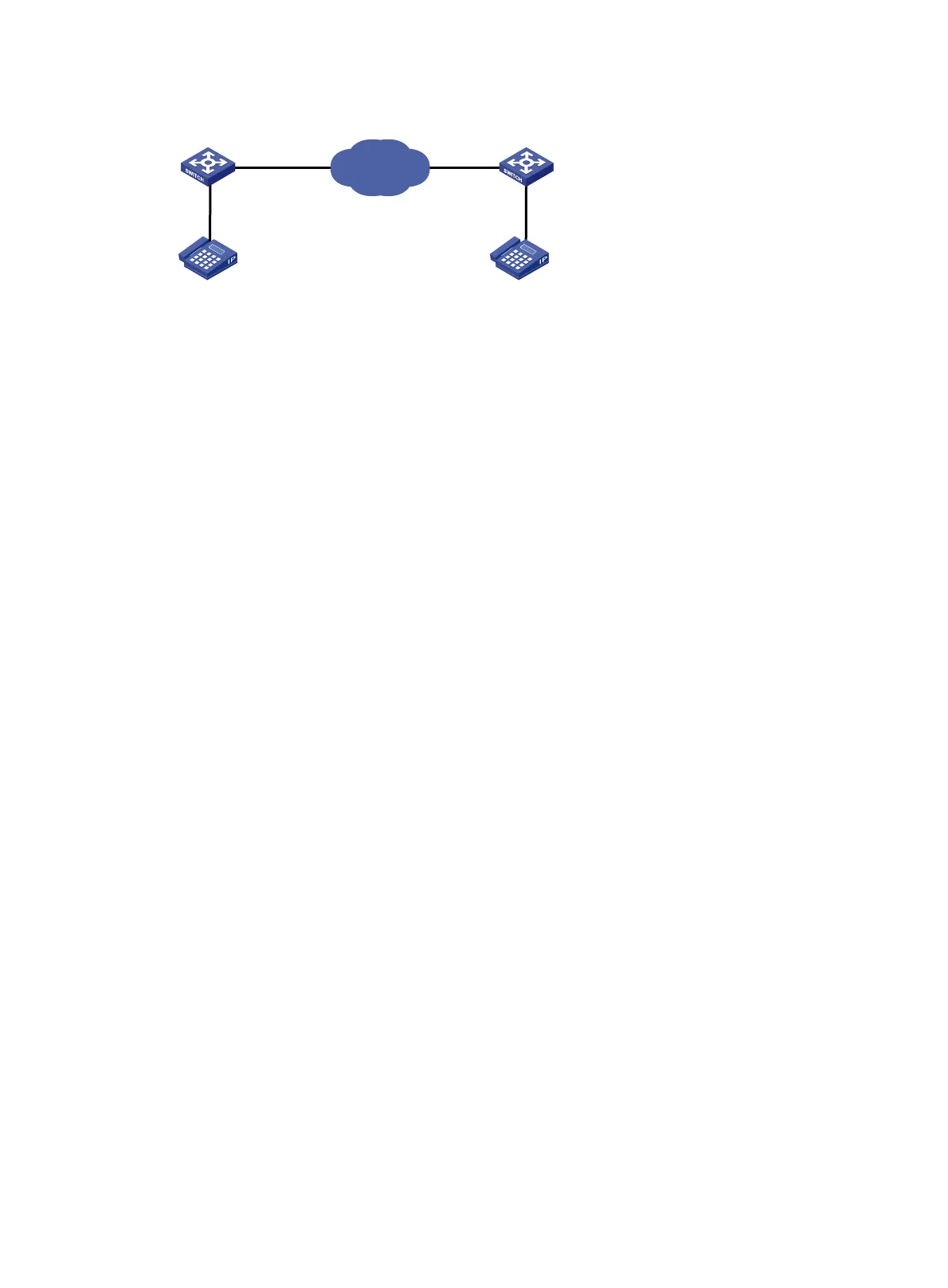

Figure 37 Network diagram for manual voice VLAN assignment mode configuration
Device A Device B
Eth1/0/1
Eth1/0/1
VLAN 2
010-1001
OUI: 0011-2200-0000
Mask: ffff-ff00-0000
0755-2002
Internet
Configuration procedure
# Configure the voice VLAN to operate in security mode. (Optional. A voice VLAN operates in security
mode by default.)
<DeviceA> system-view
[DeviceA] voice vlan security enable
# Add a recognizable OUI address 0011-2200-0000.
[DeviceA] voice vlan mac-address 0011-2200-0000 mask ffff-ff00-0000 description test
# Create VLAN 2.
[DeviceA] vlan 2
[DeviceA-vlan2] quit
# Configure Ethernet 1/0/1 to operate in manual voice VLAN assignment mode.
[DeviceA] interface ethernet 1/0/1
[DeviceA-Ethernet1/0/1] undo voice vlan mode auto
# Configure Ethernet 1/0/1 as a hybrid port.
[DeviceA-Ethernet1/0/1]port link-type hybrid
# Configure the voice VLAN (VLAN 2) as the PVID of Ethernet 1/0/1 and configure Ethernet 1/0/1 to
permit the voice traffic of VLAN 2 to pass through untagged.
[DeviceA-Ethernet1/0/1] port hybrid pvid vlan 2
[DeviceA-Ethernet1/0/1] port hybrid vlan 2 untagged
# Enable voice VLAN on Ethernet 1/0/1.
[DeviceA-Ethernet1/0/1] voice vlan 2 enable
Verification
# Display the OUI addresses, OUI address masks, and description strings.
<DeviceA> display voice vlan oui
Oui Address Mask Description
0001-e300-0000 ffff-ff00-0000 Siemens phone
0003-6b00-0000 ffff-ff00-0000 Cisco phone
0004-0d00-0000 ffff-ff00-0000 Avaya phone
0011-2200-0000 ffff-ff00-0000 test
00d0-1e00-0000 ffff-ff00-0000 Pingtel phone
0060-b900-0000 ffff-ff00-0000 Philips/NEC phone
00e0-7500-0000 ffff-ff00-0000 Polycom phone
00e0-bb00-0000 ffff-ff00-0000 3com phone
