To do… Use the command… Remarks
Configure the destination multicast
MAC address for BPDUs
bpdu-tunnel tunnel-dmac
mac-address
Optional
0x010F-E200-0003 by default.
NOTE:
For BPDUs to be reco
nized, the destination multicast MAC addresses confi
ured for BPDU tunnelin
mus
be the same on the edge devices on the service provider network.
BPDU tunneling configuration examples
BPDU tunneling for STP configuration example
Network requirements
As shown in Figure 26:
• CE 1 and CE 2 are edges devices on the geographically dispersed network of User A; PE 1 and PE
2 are edge devices on the service provider network.
• All ports that connect service provider devices and customer devices are access ports and belong
to VLAN 2. All ports that interconnect service provider devices are trunk ports and allow packets of
any VLAN to pass through.
• MSTP is enabled on User A’s network.
After the configuration, CE 1 and CE 2 must implement consistent spanning tree calculation across the
service provider network, and the destination multicast MAC address carried in BPDUs must be
0x0100-0CCD-CDD0.

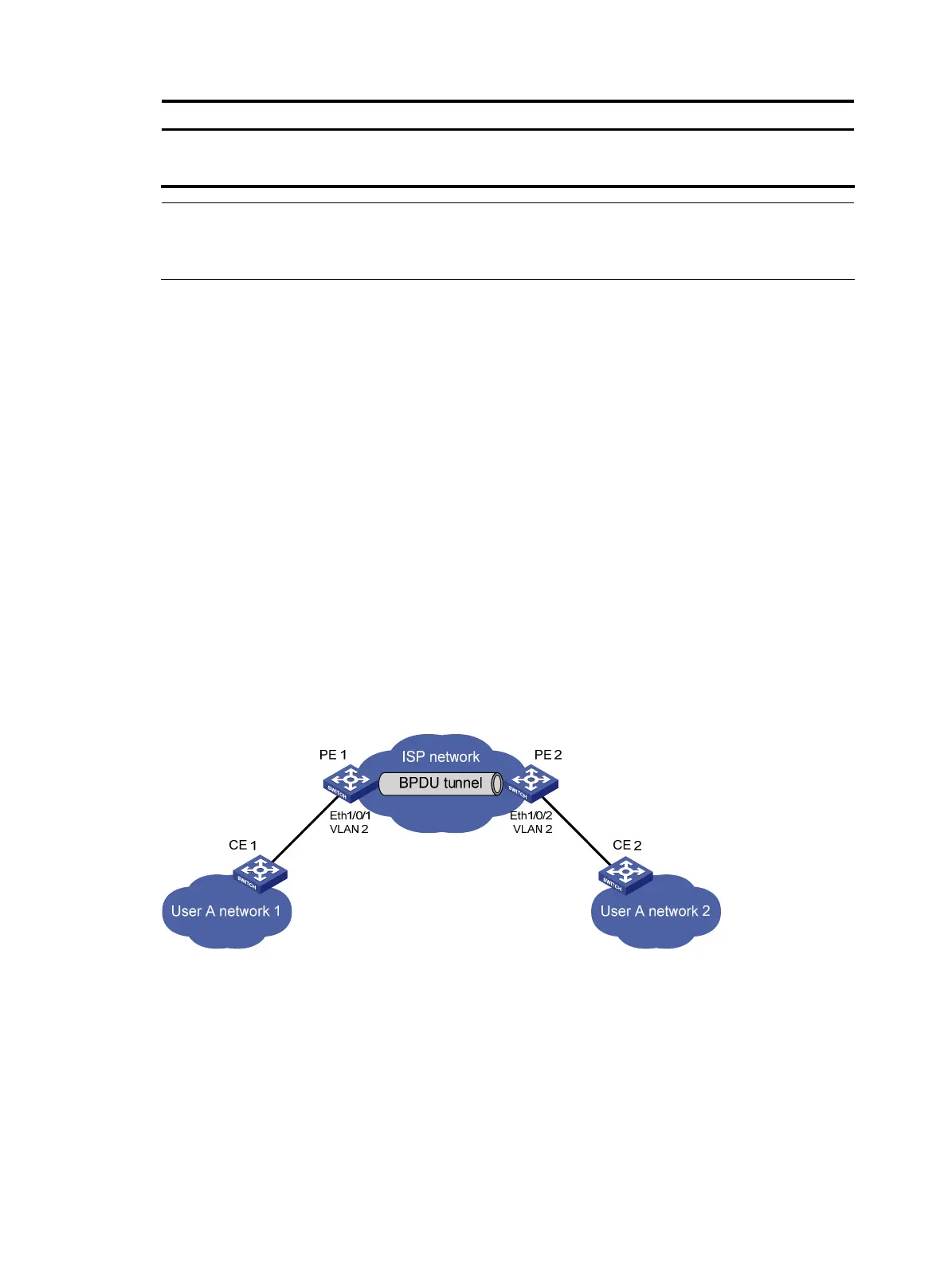

Figure 26 Network diagram for configuring BPDU tunneling for STP
Configuration procedure
1. Configure PE 1.
# Configure the destination multicast MAC address for BPDUs as 0x0100-0CCD-CDD0.
<PE1> system-view
[PE1] bpdu-tunnel tunnel-dmac 0100-0ccd-cdd0
# Create VLAN 2 and assign Ethernet 1/0/1 to VLAN 2.
[PE1] vlan 2
[PE1-vlan2] quit
91
