to the same VLAN by customer, so the uplink device can obtain traffic statistics for different customers
based on VLANs.

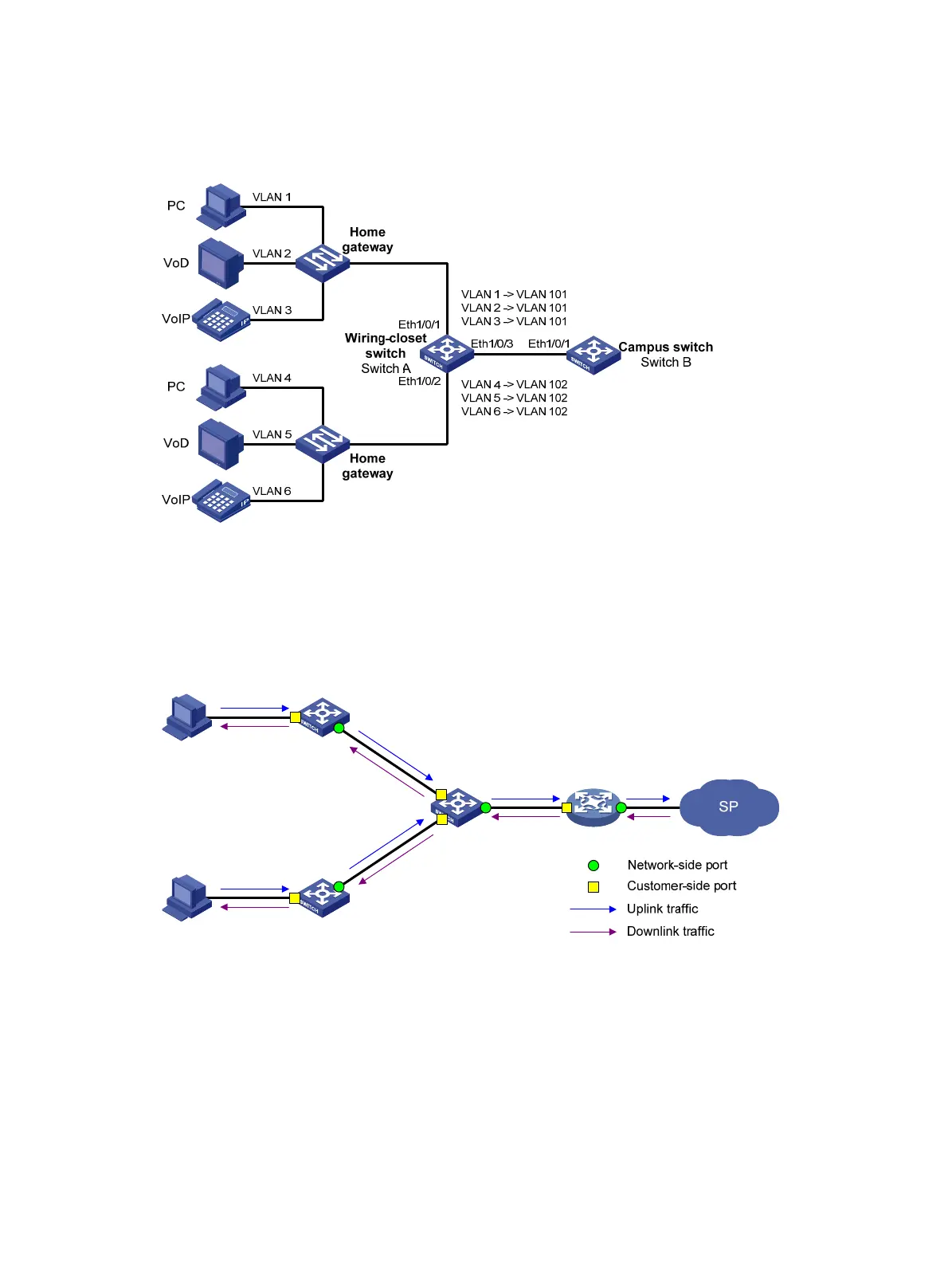

Figure 50 Application scenario of many-to-one VLAN mapping
Concepts and terms
Figure 51 shows a simplified network to help explain the concepts and terms that you might encounter
when you work with VLAN mapping.
Figure 51 Basic concepts of VLAN mapping
Uplink traffic—Traffic transmitted from the customer network to the service provider network.
Downlink traffic—Traffic transmitted from the service provider network to the customer network.
Network-side port—A port connected to the service provider network.
Customer-side port—A port connected to the customer network.
Uplink policy—A QoS policy that defines VLAN mapping rules for uplink traffic.
Downlink policy—A QoS policy that defines VLAN mapping rules for downlink traffic.
Customer VLANs (CVLANs)—VLANs assigned for customers.
152
