HP EliteDesk 800 G3 TWR User Manual

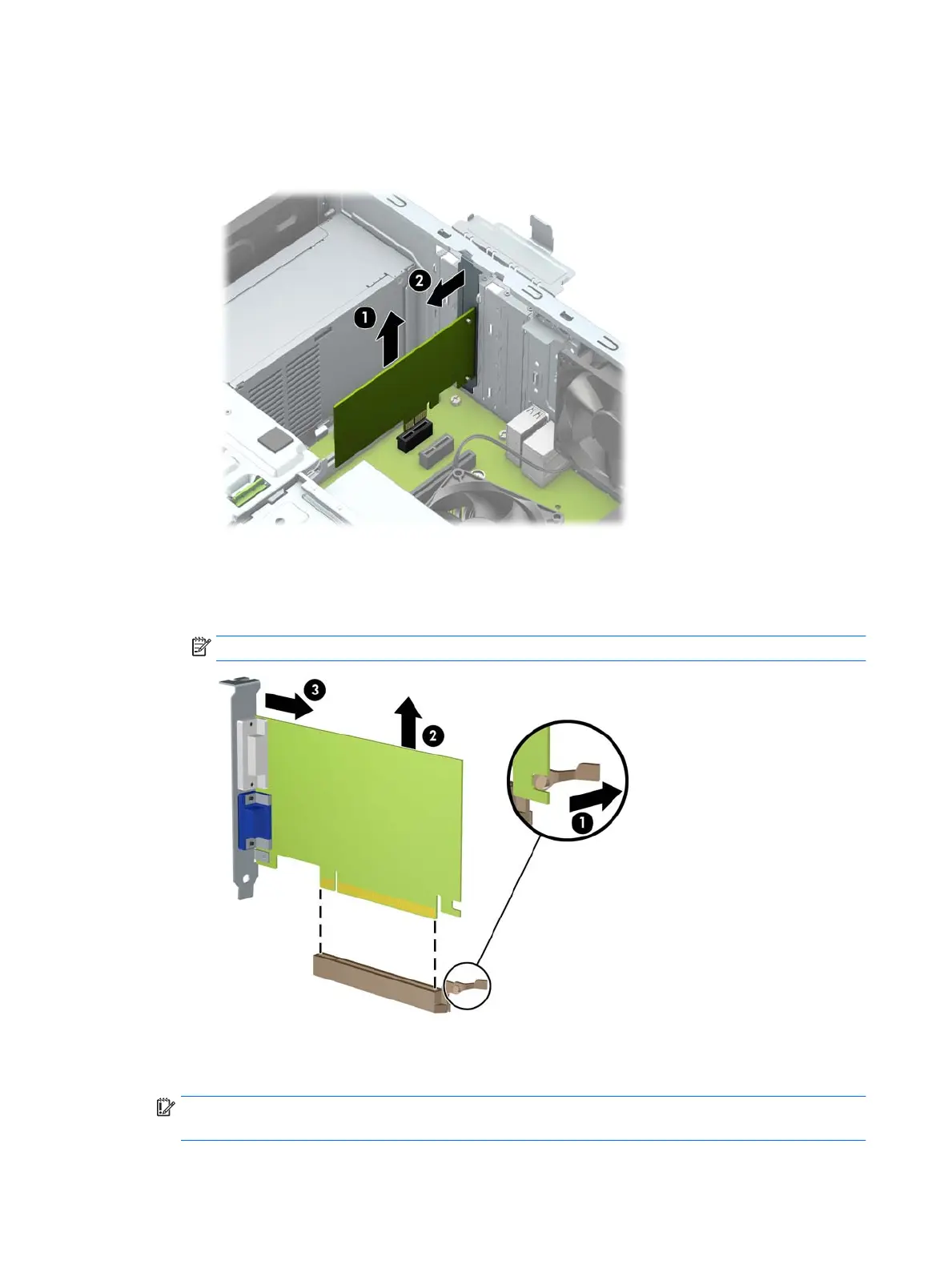

b. If you are removing a PCI Express x1 card, hold the card at each end and carefully rock it back and
forth until the connectors pull free from the socket. Lift the card straight up (1), and then away
from the inside of the chassis (2) to remove it. Be sure not to scrape the card against other
components.
c. If you are removing a PCI Express x16 card, pull the retention arm on the back of the expansion
socket away from the card (1) and carefully rock the card back and forth until the connectors pull
free from the socket. Lift the card straight up (2), and then away from the inside of the chassis (3)
to remove it. Be sure not to scrape the card against other components.
NOTE: If the card is full length, you may need to remove the drive cage to remove the card.
6. Store the removed card in anti-static packaging.
7. If you are not installing a new expansion card, install an expansion slot cover to close the open slot.
IMPORTANT: After removing an expansion card, you must replace it with a new card or expansion slot
cover for proper cooling of internal components during operation.
32 Chapter 4 Removal and replacement procedures – Microtower (MT) chassis

HP EliteDesk 800 G3 TWR Specifications

General

Form Factor	Tower
Processor Options	Intel Pentium, Intel Celeron
Memory	Up to 64 GB DDR4-2400 SDRAM
Storage Options	2.5" HDD/SSD, M.2 SSD
Graphics	Intel HD Graphics 630
Operating System	Windows 10 Pro
Audio	Realtek HD ALC221-VB Audio
Expansion Slots	1 PCIe x16
Ports (Front)	2 x USB 3.1 Gen 1, 2 x USB 2.0, 1 x headphone/microphone combo
Ports (Rear)	4 x USB 3.1 Gen 1, 4 x USB 2.0, 1 x VGA, 1 x DisplayPort, 1 x RJ-45, 1 x audio line-out, 1 x audio line-in
Power Supply	250W, up to 92% efficient PSU
Optical Drive	Optional DVD-Writer
Chipset	Intel® Q270
