Hardware options installation 60
8.

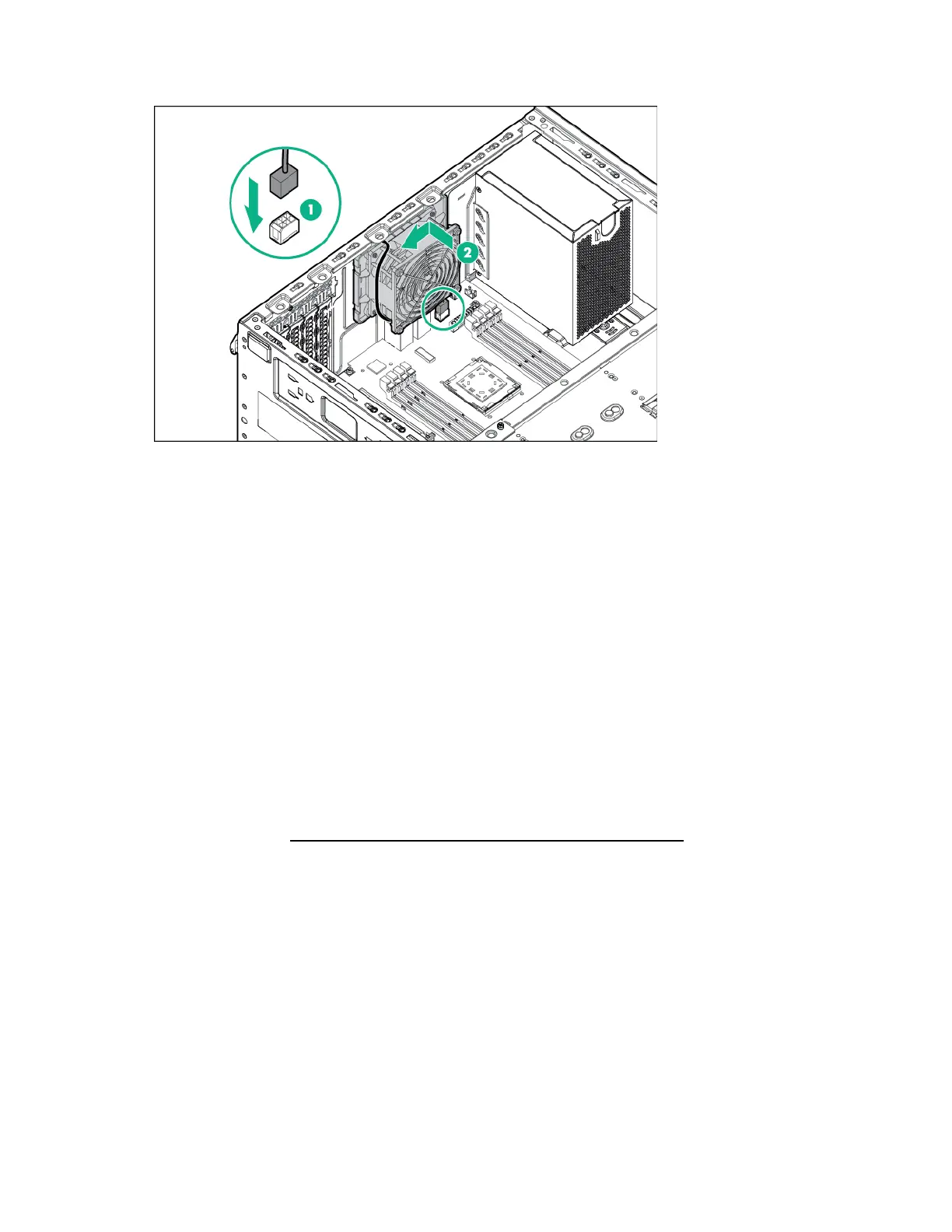

Install the 92×38 mm system fan.
9. Install the system air baffle (on page 22).
10. If removed, install the PCI air baffle ("Install the PCI air baffle" on page 20).
11. Install the access panel (on page 18).
12. Return the server to an upright position.
13. Connect each power cord to the server.
14. Connect each power cord to the power source.
15. Power up the server.
Dual 8Gb microSD Enterprise Midline USB device
This server supports the installation of the Dual 8Gb microSD Enterprise Midline USB device on the
server internal USB connector.
This USB storage device contains a dual-SD card module that supports up to two SD, SDHC, or SDXC
storage cards providing data redundancy through a mirrored RAID-1 configuration. This USB storage
device connects to an internal USB connector and is configured upon boot.
To locate the internal USB connector, see "System board components (on page 10)." For more
information, see the Dual 8Gb microSD EM USB storage device documentation on the Hewlett Packard
Enterprise website (http://www.hpe.com/support/8GBDualMicrosd_ug_en).
To install the component:
1. Power down the server (on page 17).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Place the server on its side.
4. Remove the access panel (on page 17).
5. If installed, remove the PCI air baffle (on page 20).
6. Remove the system air baffle (on page 21).
7. If installed, remove the Smart Storage Battery.
