Hardware options installation 33
14.

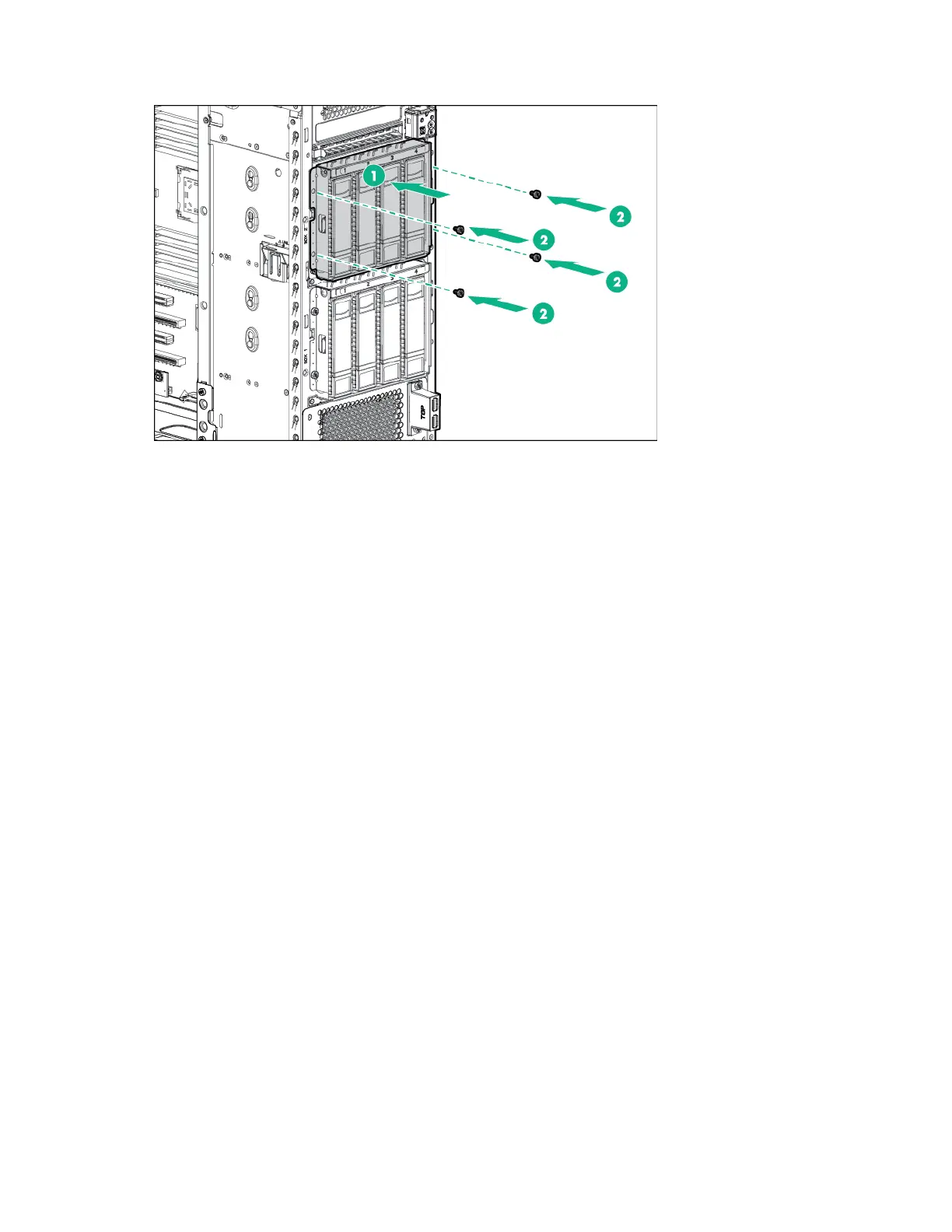

Install the 4-bay LFF hot-plug drive cage assembly in box 2.
15. Connect the drive cage cables. See "4-bay LFF hot-plug drive cabling (on page 84)." Then, install
the drives.
16. Install the system air baffle (on page 22).
17. If removed, install the PCI air baffle ("Install the PCI air baffle" on page 20).
18. Install the front bezel (on page 19).
19. Install the access panel (on page 18).
20. Return the server to an upright position.
21. Connect each power cord to the server.
22. Connect each power cord to the power source.
23. Power up the server.
8-bay SFF hot-plug drive cage option
To install the component:
1. Power down the server (on page 17).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Place the server on its side.
4. Remove the access panel (on page 17).
5. Remove the front bezel (on page 19).
6. If installed, remove the PCI air baffle (on page 20).
7. Remove the system air baffle (on page 21).
8. Disconnect all existing drive cage cables.

HP HPE ProLiant ML110 Gen9 Specifications

General

Processor Sockets	1
Memory Slots	8 DIMM slots
Processor	Intel Xeon E5-2600 v3/v4
Chipset	Intel C610
Memory	DDR4 SmartMemory
Storage	Up to 8 LFF or 16 SFF drives
Storage Controller	Dynamic Smart Array B140i or P440ar
RAID Support	RAID 0, 1, 5, 10 with optional controller
Network	1GbE
Expansion Slots	PCIe slots
Form Factor	Tower
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Maximum Internal Storage	16 TB
