Hardware options installation 44
Item Description
3
Port 2 of the Mini-SAS Y-cable to Mini-SAS port 2 on the drive
backplane

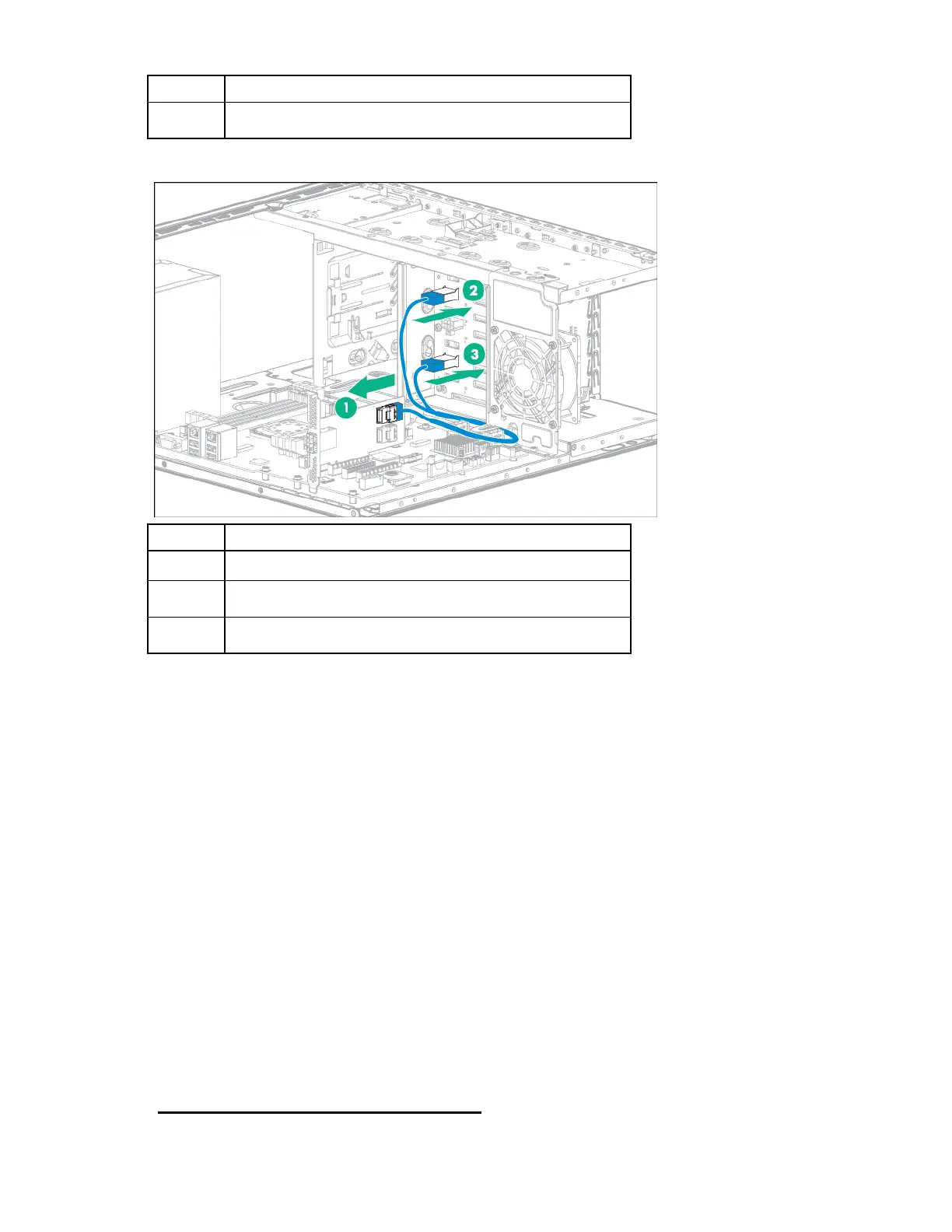

o 8 SFF hot-plug drive cage connected to a P840 controller
Item Description
1
Port 1 controller connection
2
Port 1 of the Mini-SAS Y-cable to Mini-SAS port 1 on the drive
backplane
3
Port 2 of the Mini-SAS Y-cable to Mini-SAS port 2 on the drive
backplane
For the second 8 SFF hot-plug drive cage in box 2, connect the second Mini-SAS Y cable to port
2 on the P840 controller.
9. Install the Host Bus Adapter ("Installing the storage controller and FBWC module options" on page
45).
Hewlett Packard Enterprise recommends installing the H240 Host Bus Adapter in slot 3 or slot 5.
10. If not installed, install the fan included in the PCI fan and baffle option ("PCI fan and baffle option" on
page 57).
11. Install the system air baffle (on page 22).
12. If removed, install the PCI air baffle ("Install the PCI air baffle" on page 20).
13. Install the access panel (on page 18).
14. Return the server to an upright position.
15. Connect each power cord to the server.
16. Connect each power cord to the power source.
17. Power up the server.
Storage controller options
The server ships with an embedded Dynamic Smart Array B140i Controller. This embedded controller is
supported in UEFI Boot Mode only. For more information about the controller and its features, see the
HPE Dynamic Smart Array B140i RAID Controller User Guide on the Hewlett Packard Enterprise website
(http://www.hpe.com/info/smartstorage/docs).
