HP HPE ProLiant ML110 Gen9 - 8-Bay SFF Hot-Plug Drive Cabling

Cabling 86

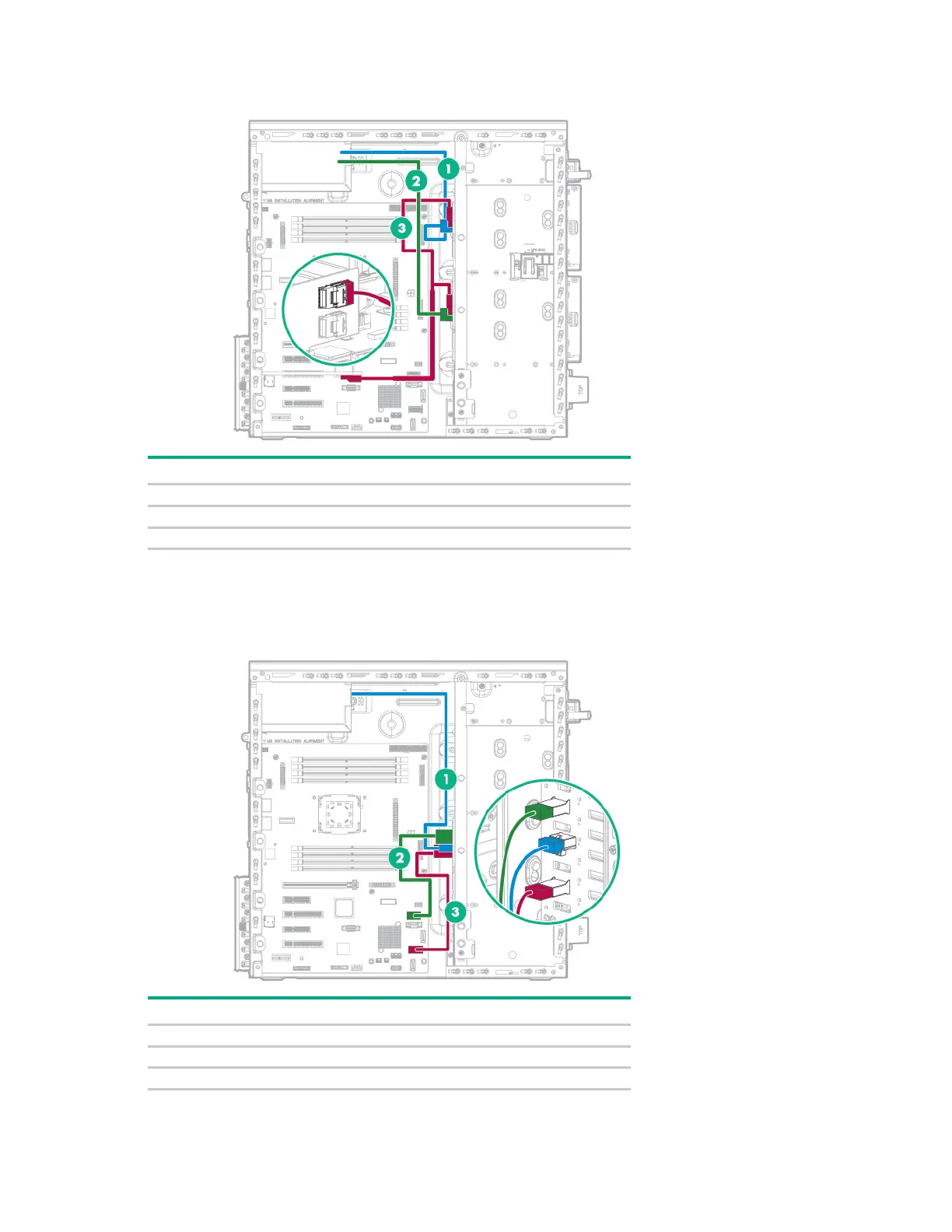

• Box 1 and box 2 drive backplane connected to a P840 controller
Item
Description
1
Box 2 drive power cable
2
Box 1 drive power cable
3
Mini-SAS Y-cable to port 1 of the controller
8-bay SFF hot-plug drive cabling
• Box 1 drive backplane connected to the system board
Item Description
1
Drive power cable
2
Mini-SAS port 1 connection
3
Mini-SAS port 2 connection
