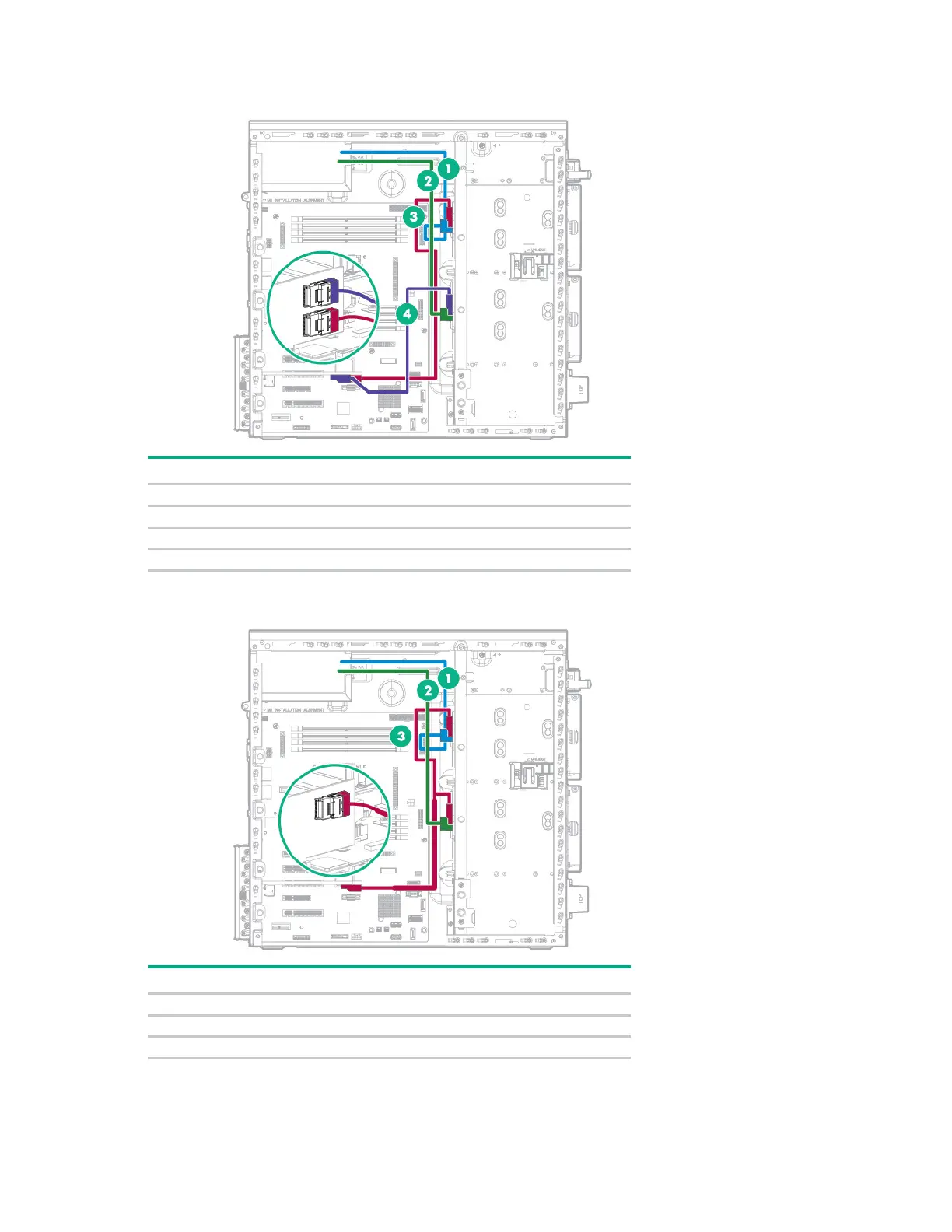

• Box 1 and box 2 drive backplanes connected to an H240 adapter
Item
Description
1
Box 2 drive power cable
2
Box 1 drive power cable
3
Mini-SAS cable to port 2 of the controller
4
Mini-SAS cable to port 1of the controller
• Box 1 and box 2 drive backplanes connected to a P440 controller
Item Description
1
Box 2 drive power cable
2
Box 1 drive power cable
3
Mini-SAS Y-cable to the controller
