HP HPE ProLiant ML110 Gen9 User Manual

Hardware options installation 68
15.
Power up the server.
After installing the DIMMs, use BIOS/Platform Configuration (RBSU) in the UEFI System Utilities ("HPE
UEFI System Utilities" on page 101) to configure the memory protection mode.
Dedicated iLO management module option
To install the component:
1. Power down the server (on page 17).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Place the server on its side.
4. Remove the access panel (on page 17).
5. If installed, remove the PCI air baffle (on page 20).
6. Remove the system air baffle (on page 21).

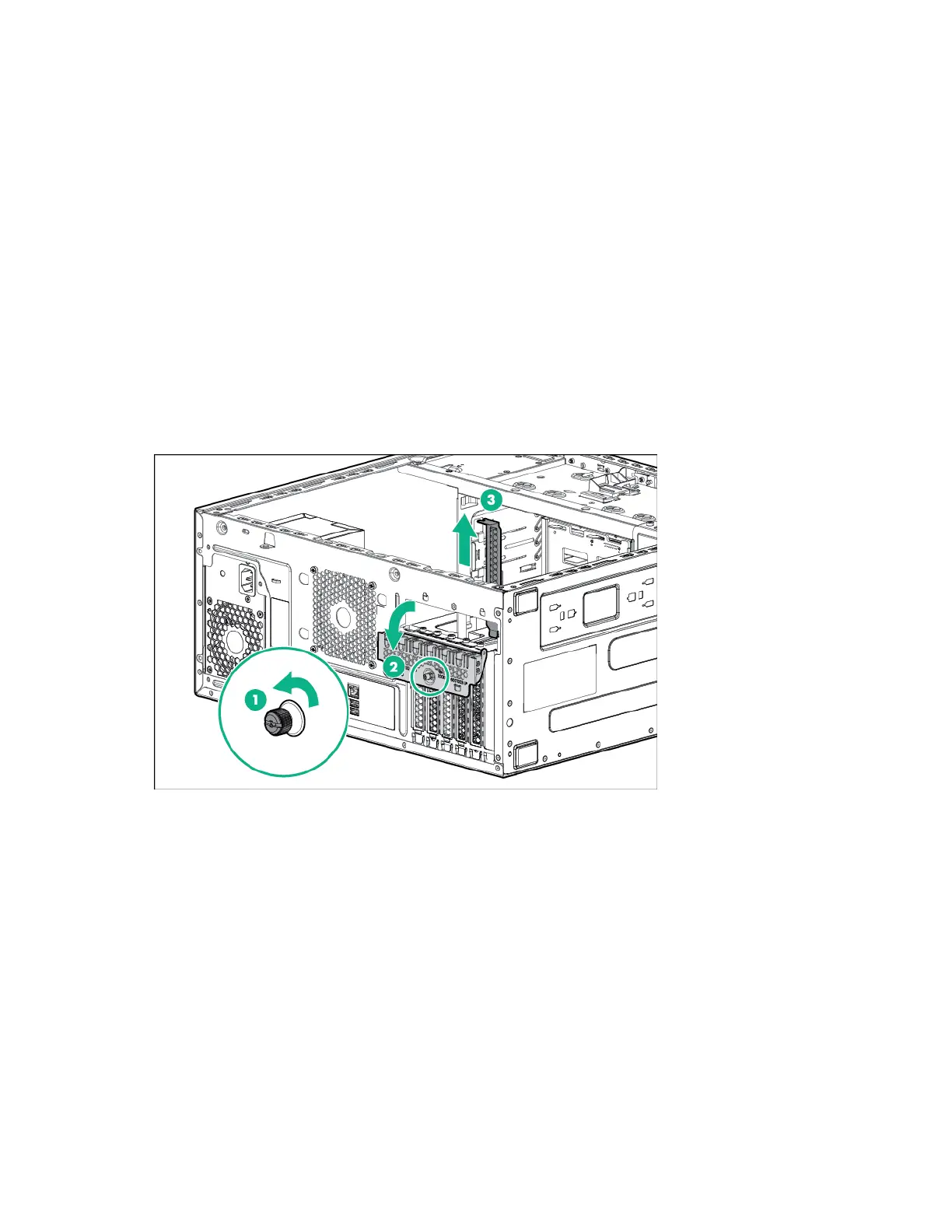

7. Open the slot cover retainer and remove the PCIe blank.

HP HPE ProLiant ML110 Gen9 Specifications

General

Processor Sockets	1
Memory Slots	8 DIMM slots
Processor	Intel Xeon E5-2600 v3/v4
Chipset	Intel C610
Memory	DDR4 SmartMemory
Storage	Up to 8 LFF or 16 SFF drives
Storage Controller	Dynamic Smart Array B140i or P440ar
RAID Support	RAID 0, 1, 5, 10 with optional controller
Network	1GbE
Expansion Slots	PCIe slots
Form Factor	Tower
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Maximum Internal Storage	16 TB
