Component identification 13
For more information, see the Hewlett Packard Enterprise website
(http://www.hpe.com/support/NMI-CrashDump).

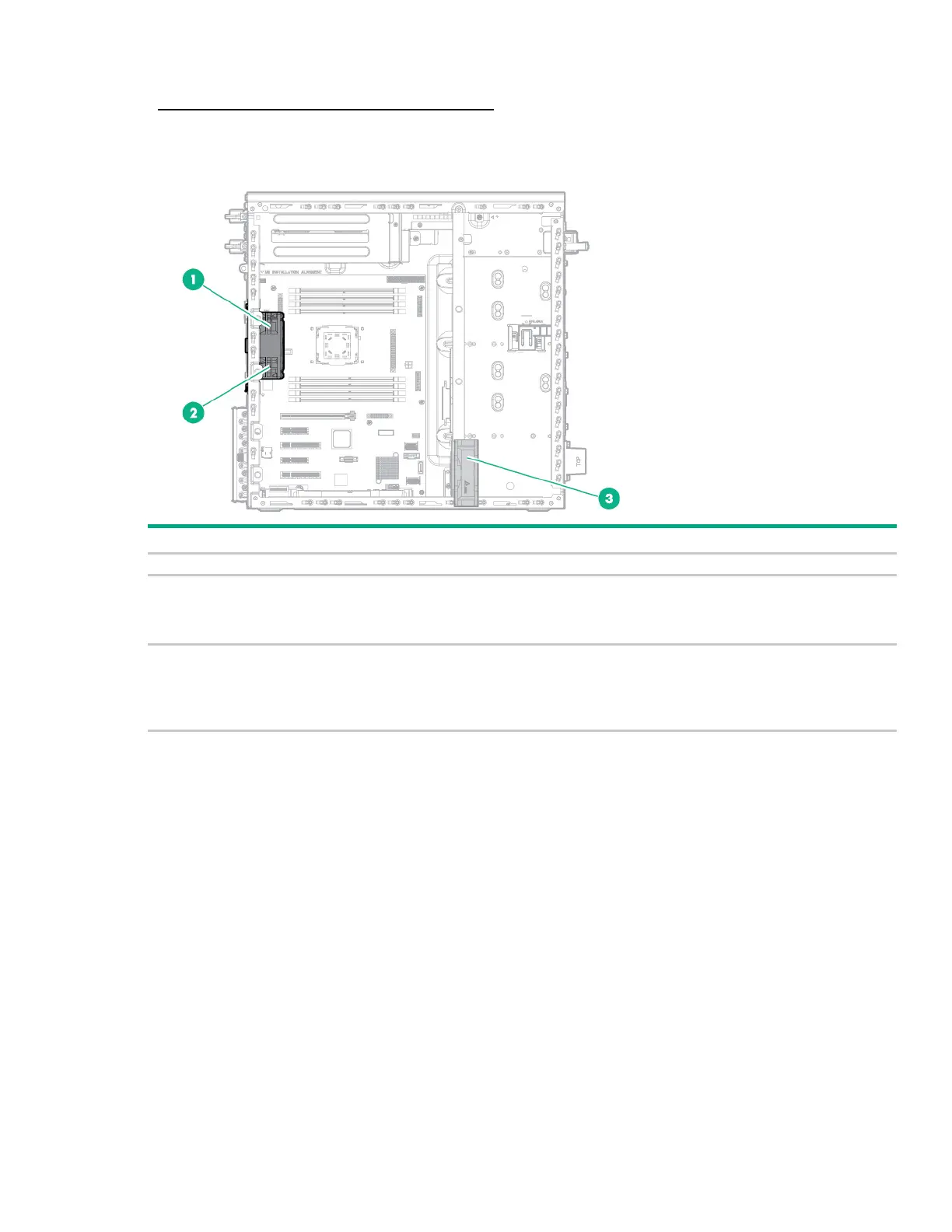

Fan locations
Item
Description
1
Default system fan (92 x 32 mm)
2
Upgrade system fan (92 x 38 mm)
The option is required to replace the default system fan when a 140 W workstation processor or
SAS SSD drives are installed.
3
PCI fan
The PCI fan is part of the PCI fan and baffle option. The option is required when a storage
controller, GPU card or any expansion board is installed in the PCIe slot area except the
dedicated iLO module.
Drive numbering
The following images show the drive numbering for each of the supported drive configurations. For drive
box numbering information, see "Front panel components (on page 6)."
With optional drive cages installed, the server supports up to 4 LFF non-hot-plug drives, 8 LFF hot-plug
drives or 16 SFF hot-plug drives. If only one drive cage is installed, it must be installed in box 1. The server
does not support mixing SFF and LFF drives.
Hewlett Packard Enterprise recommends that you populate drive bays starting with the lowest drive
number. Drives are numbered from left to right in each component box.

HP HPE ProLiant ML110 Gen9 Specifications

General

Processor Sockets	1
Memory Slots	8 DIMM slots
Processor	Intel Xeon E5-2600 v3/v4
Chipset	Intel C610
Memory	DDR4 SmartMemory
Storage	Up to 8 LFF or 16 SFF drives
Storage Controller	Dynamic Smart Array B140i or P440ar
RAID Support	RAID 0, 1, 5, 10 with optional controller
Network	1GbE
Expansion Slots	PCIe slots
Form Factor	Tower
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Maximum Internal Storage	16 TB
