Hardware options installation 81
9.

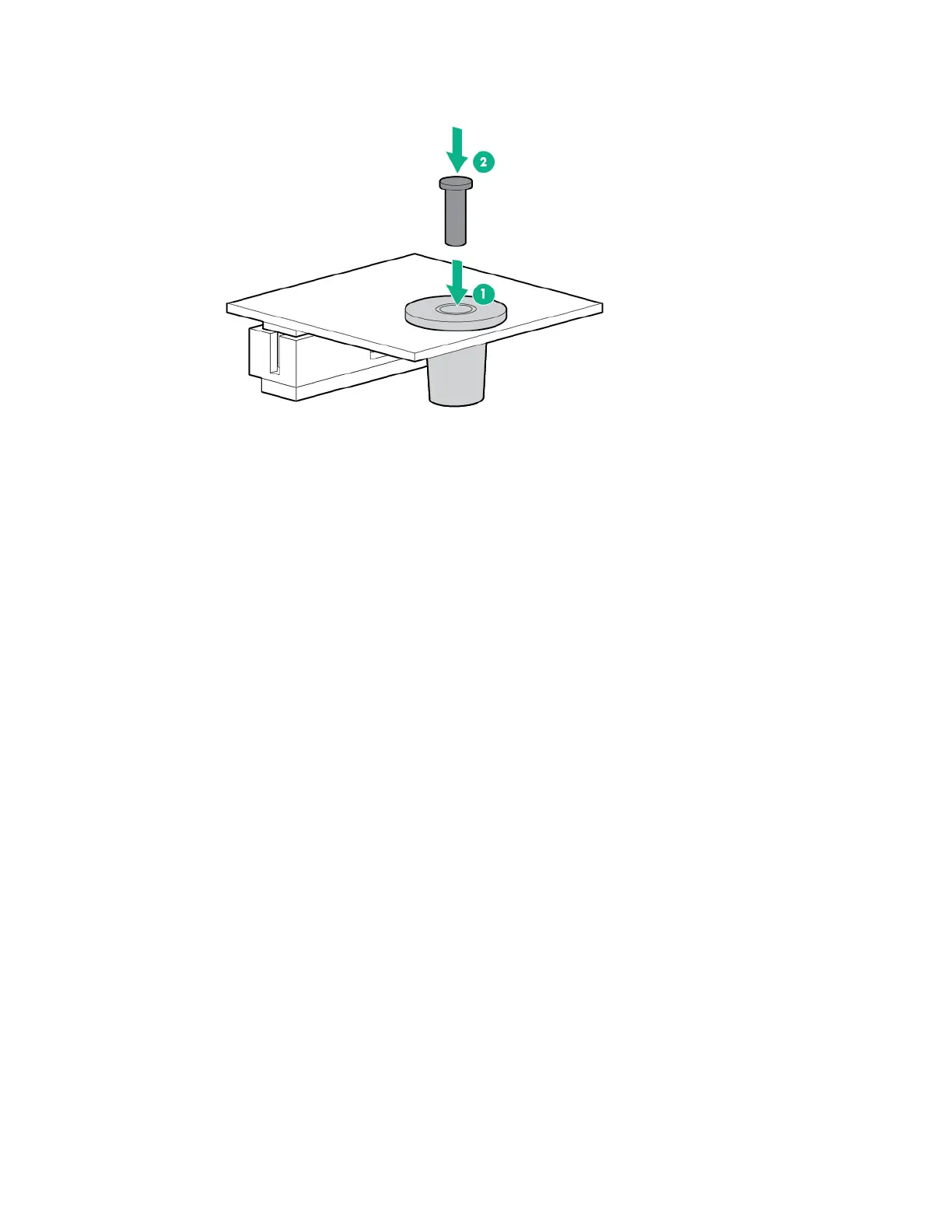

Install the TPM security rivet by pressing the rivet firmly into the system board.
10. Install the controller in slot 5.
11. Install the system air baffle (on page 22).
12. If removed, install the PCI air baffle ("Install the PCI air baffle" on page 20).
13. Install the access panel (on page 18).
14. Return the server to an upright position.
15. Connect each power cord to the server.
16. Connect each power cord to the power source.
17. Power up the server.
Retaining the recovery key/password
The recovery key/password is generated during BitLocker setup, and can be saved and printed after
BitLocker is enabled. When using BitLocker, always retain the recovery key/password. The recovery
key/password is required to enter Recovery Mode after BitLocker detects a possible compromise of
system integrity.
To help ensure maximum security, observe the following guidelines when retaining the recovery
key/password:
• Always store the recovery key/password in multiple locations.
• Always store copies of the recovery key/password away from the server.
• Do not save the recovery key/password on the encrypted hard drive.
Enabling the Trusted Platform Module
1. During the server startup sequence, press the F9 key to access System Utilities.
2. From the System Utilities screen, select System Configuration > BIOS/Platform Configuration
(RBSU) > Server Security.
3. Select Trusted Platform Module Options and press the Enter key.
4. Select Enabled to enable the TPM and BIOS secure startup. The TPM is fully functional in this
mode.
5. Press the F10 key to save your selection.
6. When prompted to save the change in System Utilities, press the Y key.
