Hardware options installation 55
b.

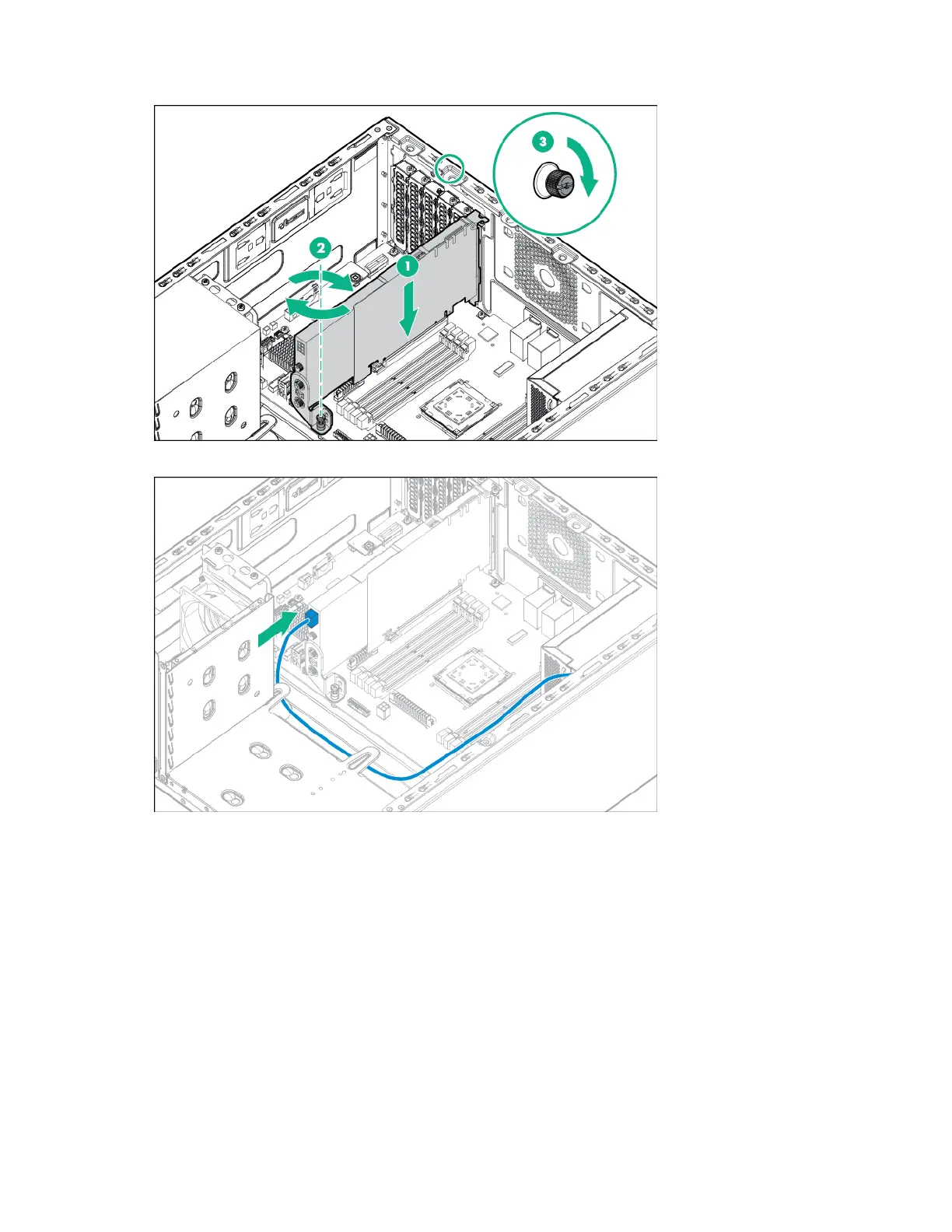

Close the PCIe slot cover retainer.
13. Connect the 6-pin power cable from the power supply to the GPU.
14. Install the PCI fan and baffle option ("PCI fan and baffle option" on page 57).
15. Install the system air baffle (on page 22).
16. Install the access panel (on page 18).
17. Return the server to an upright position.
18. Connect each power cord to the server.
19. Connect each power cord to the power source.
20. Power up the server.
Optical drive option
To install the component:
1. Power down the server (on page 17).
2. Remove all power:
