Hardware options installation 54
9.

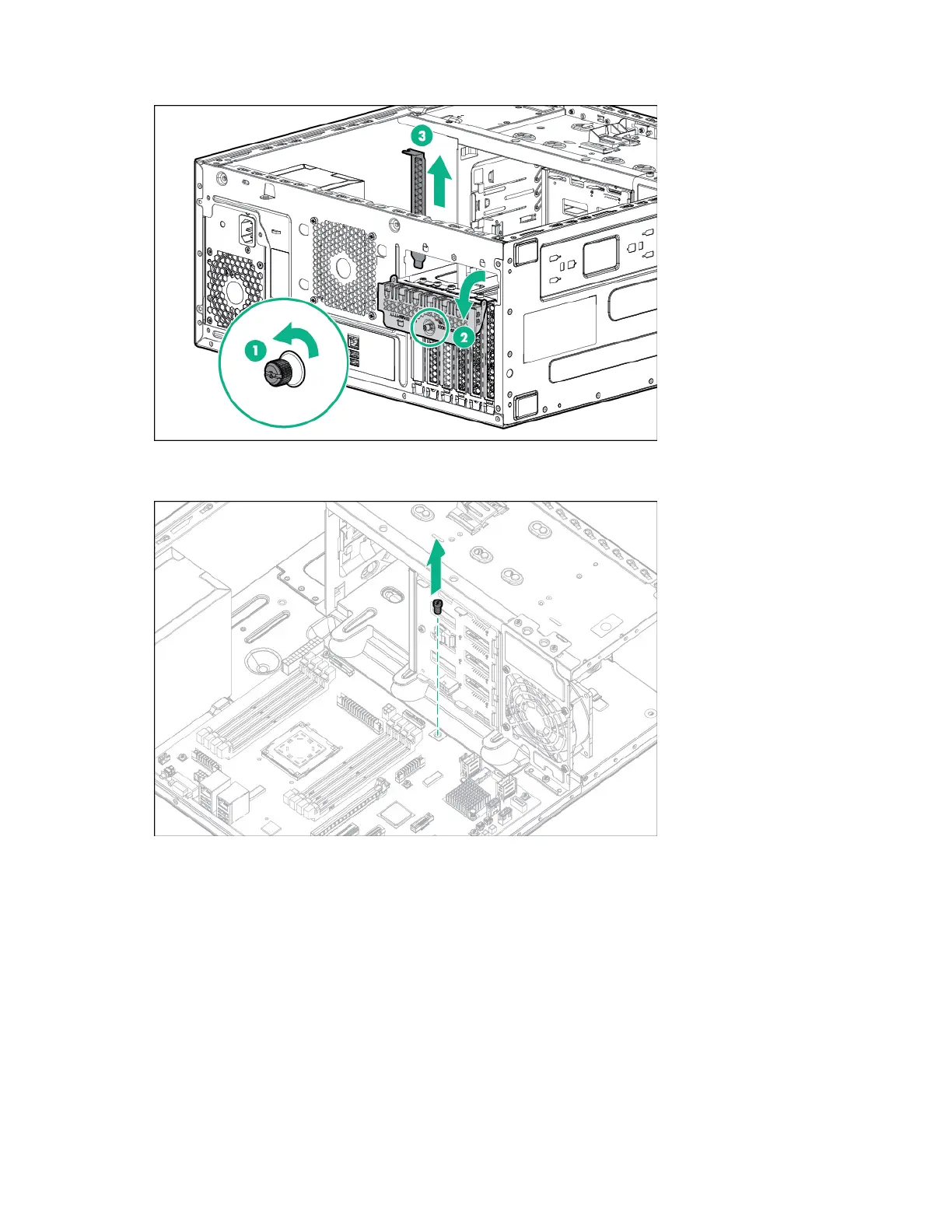

Open the PCIe slot cover retainer and remove the slot 1 blank.
10. Retain the blank for future use.
11. Remove the secured screw from the system board.
12. Install the GPU with the supporting holder in slot 1:
a. Secure the captive screw of the supporting holder to the system board.
