Hardware options installation 42
Hewlett Packard Enterprise recommends installing the H240 Host Bus Adapter in slot 3 or slot 5.
10. If not installed, install the fan included in the PCI fan and baffle option ("PCI fan and baffle option" on
page 57).
11. Install the system air baffle (on page 22).
12. If removed, install the PCI air baffle ("Install the PCI air baffle" on page 20).
13. Install the access panel (on page 18).
14. Return the server to an upright position.
15. Connect each power cord to the server.
16. Connect each power cord to the power source.
17. Power up the server.
Smart Array Controller Mini-SAS cable option
To install the component:
1. Power down the server (on page 17).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Place the server on its side.
4. Remove the access panel (on page 17).
5. If installed, remove the PCI air baffle (on page 20).
6. Remove the system air baffle (on page 21).
7. Disconnect the existing Mini-SAS cables from the drive backplane and the Mini-SAS connectors on
the system board.
8. Connect one end of the cable to the Smart Array Controller, route the cable underneath the metal
tabs, and then connect the other end to the drive backplane.

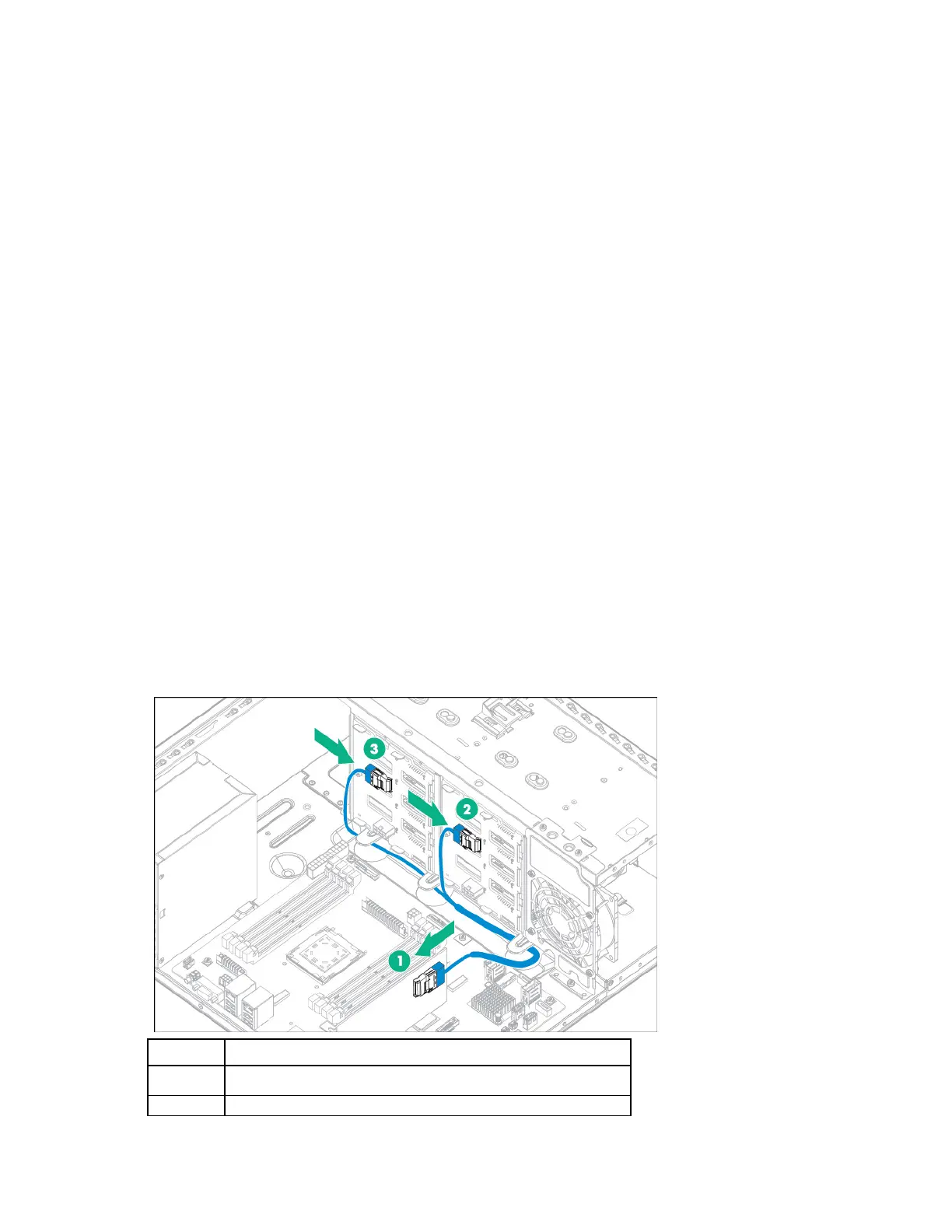

o Two 4 LFF hot-plug drive cages connected to a P440 controller
Item Description
1
Port 1 of the Mini-SAS Y-cable to box 1 drive backplane
