Hardware options installation 41
o

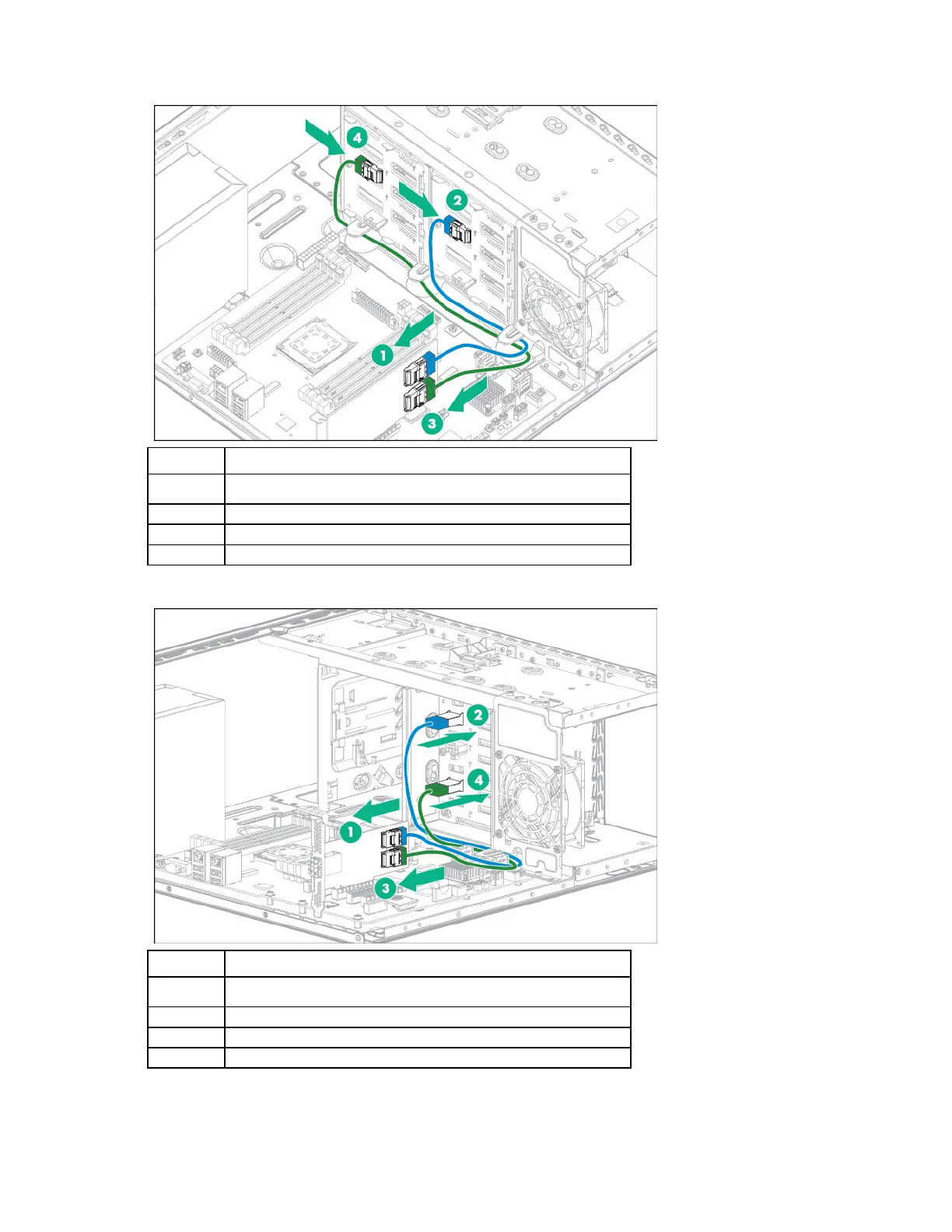

Two 4 LFF hot-plug drive cages connected to a H240 adapter
Item Description
1
Port 1 controller connection
2
Box 1 drive backplane connection
3
Port 2 controller connection
4
Box 2 drive backplane connection
o 8 SFF hot-plug drive cage connected to a H240 adapter
Item Description
1
Port 1 controller connection
2
Mini-SAS port 1 connection
3
Port 2 controller connection
4
Mini-SAS port 2 connection
9. Install the Host Bus Adapter ("Installing the storage controller and FBWC module options" on page
45).
