Hardware options installation 57
10.

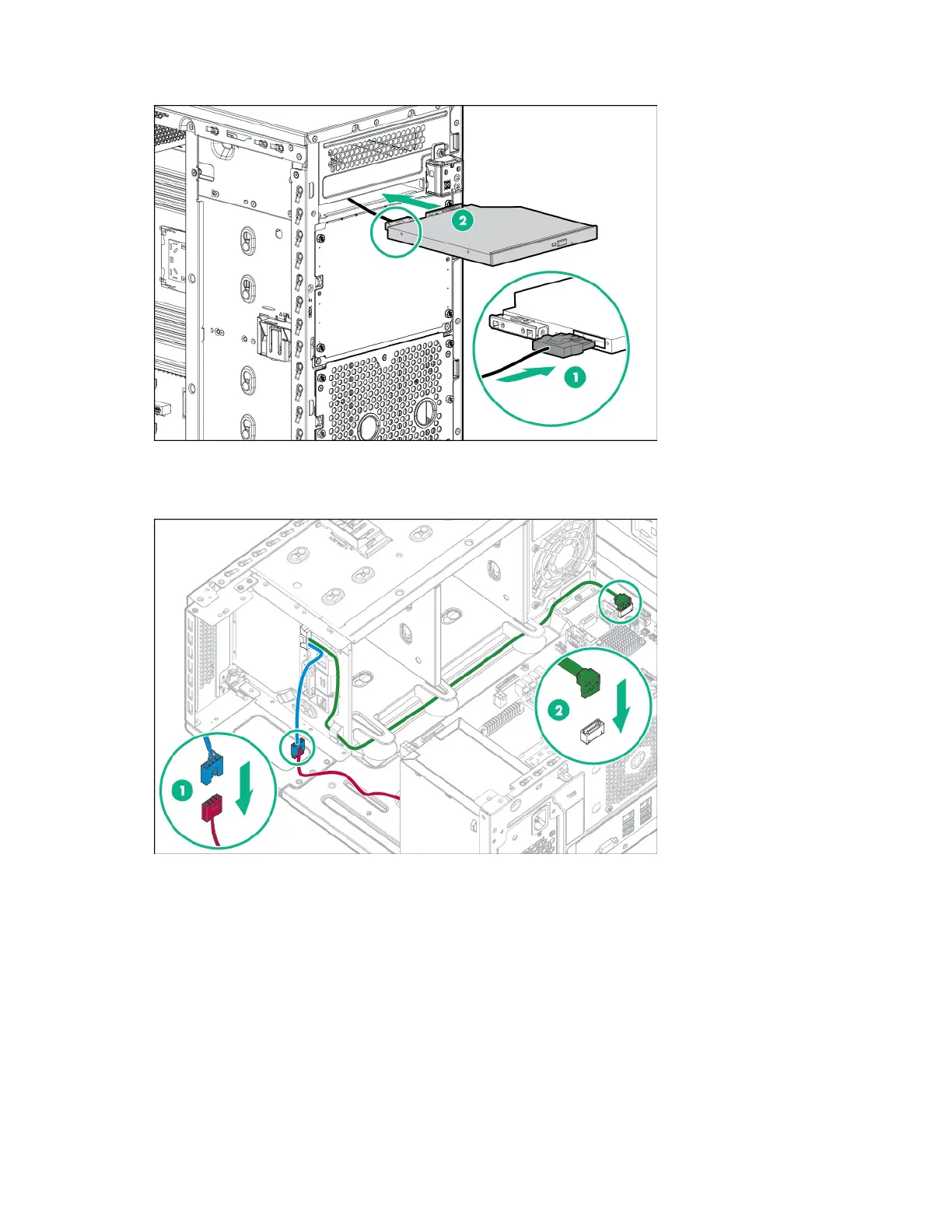

Connect the cable to the rear of the drive and then route the cable through the drive bay.
11. Connect the power cable.
12. Route the SATA cable underneath the metal tabs, and connect the opposite end of the cable to the
connector on the system board.
13. Install the system air baffle (on page 22).
14. If removed, install the PCI air baffle ("Install the PCI air baffle" on page 20).
15. Install the front bezel (on page 19).
16. Install the access panel (on page 18).
17. Return the server to an upright position.
18. Connect each power cord to the server.
19. Connect each power cord to the power source.
20. Power up the server.
PCI fan and baffle option

HP HPE ProLiant ML110 Gen9 Specifications

General

Processor Sockets	1
Memory Slots	8 DIMM slots
Processor	Intel Xeon E5-2600 v3/v4
Chipset	Intel C610
Memory	DDR4 SmartMemory
Storage	Up to 8 LFF or 16 SFF drives
Storage Controller	Dynamic Smart Array B140i or P440ar
RAID Support	RAID 0, 1, 5, 10 with optional controller
Network	1GbE
Expansion Slots	PCIe slots
Form Factor	Tower
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Maximum Internal Storage	16 TB
