Hardware options installation 58
CAUTION: For proper cooling do not operate the server without the access panel, baffles,
expansion slot covers, or blanks installed.
If you intend to install a storage controller, GPU card or any expansion boards in the PCIe slot area except
the dedicated iLO module, a PCI fan and baffle option is required to provide proper cooling of the PCIe
slot area.
To install the component:
1. Power down the server (on page 17).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Place the server on its side.
4. Remove the access panel (on page 17).
5. Remove the system air baffle (on page 21).

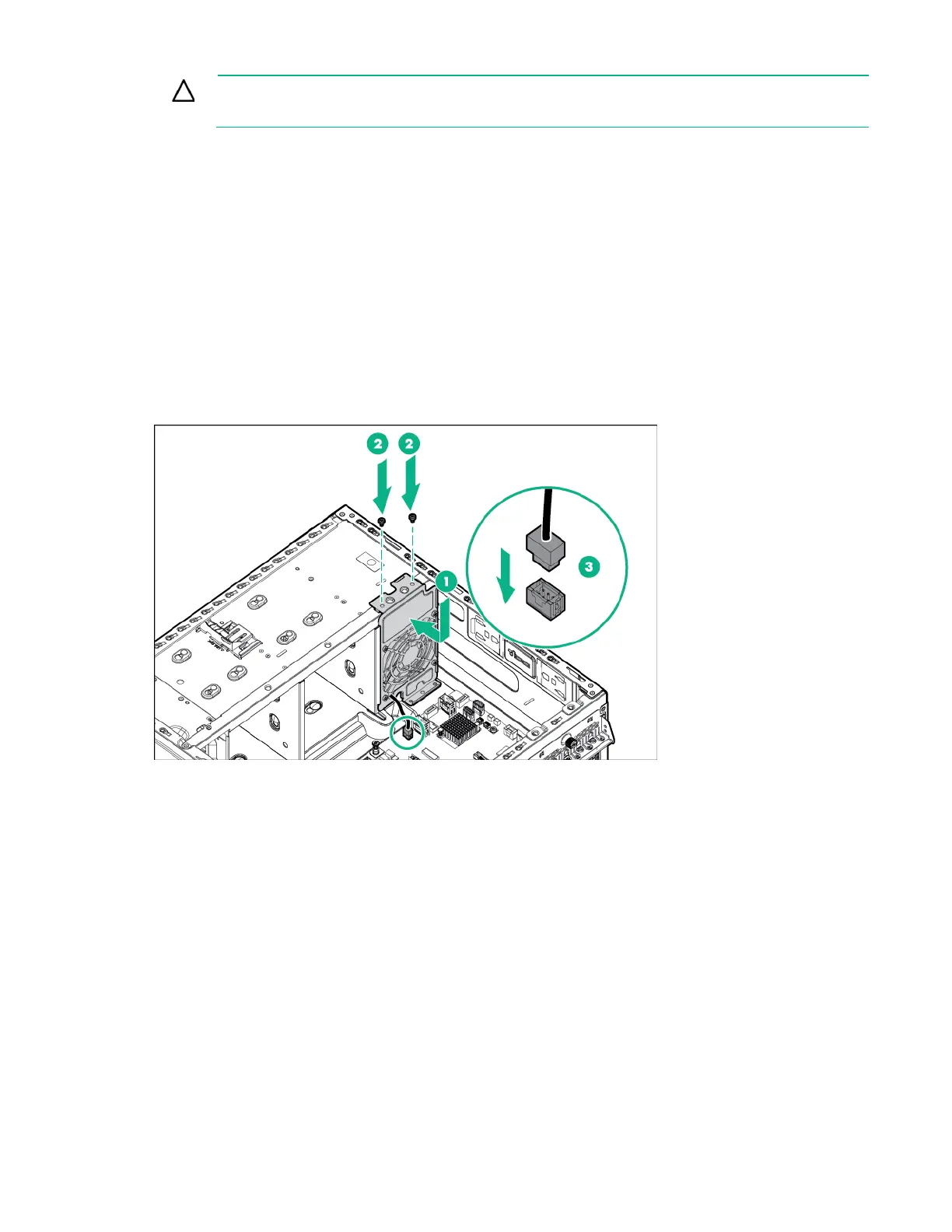

6. Install the PCI fan and connect the fan power cable.
7. Install the system air baffle (on page 22).
8. Install the PCI air baffle (on page 20).
9. Install the access panel (on page 18).
10. Return the server to an upright position.
11. Connect each power cord to the server.
12. Connect each power cord to the power source.
13. Power up the server.
