Hardware options installation 43
Item Description
3
Port 2 of the Mini-SAS Y-cable to box 2 drive backplane

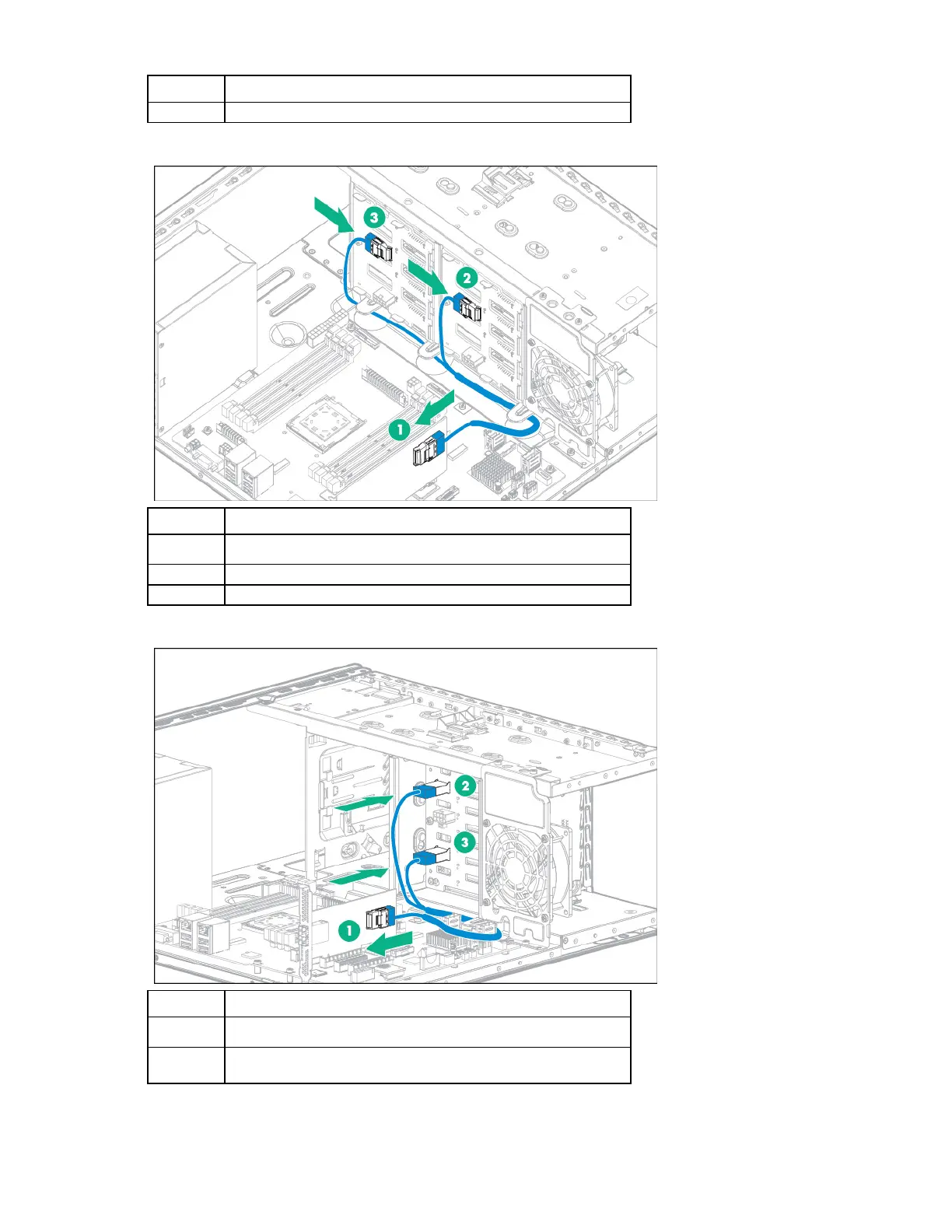

o Two 4 LFF hot-plug drive cages connected to a P840 controller
Item Description
1
Port 1 controller connection
2
Port 1 of the Mini-SAS Y-cable to box 1 drive backplane
3
Port 2 of the Mini-SAS Y-cable to box 2 drive backplane
o 8 SFF hot-plug drive cage connected to a P440 controller
Item Description
1
Controller connection
2
Port 1 of the Mini-SAS Y-cable to Mini-SAS port 1 on the drive
backplane
