Cabling 87

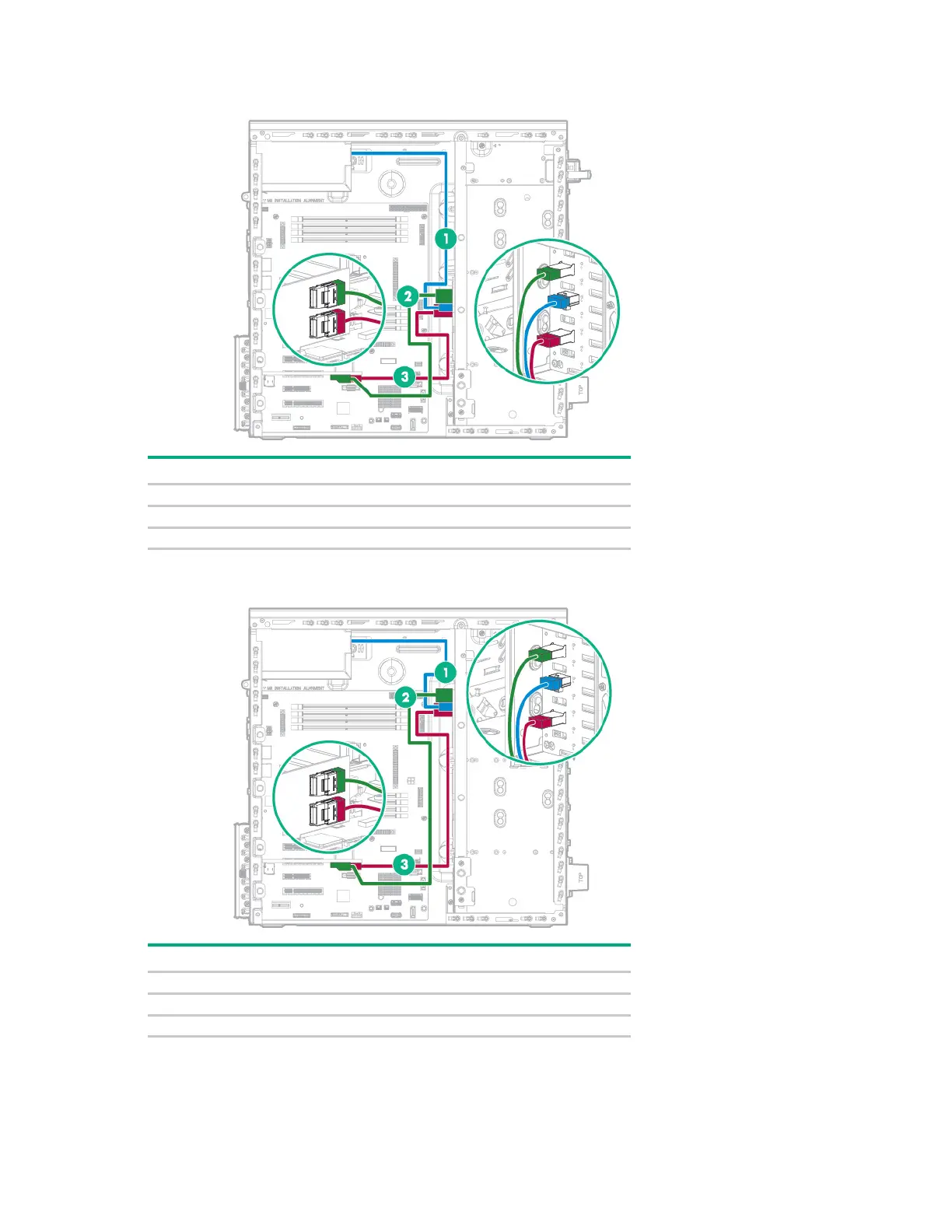

• Box 1 drive backplane connected to an H240 adapter
Item
Description
1
Drive power cable
2
Mini-SAS port 1 connection to port 1 controller
3
Mini-SAS port 2 connection to port 2 controller
• Box 2 drive backplane connected to an H240 adapter
Item Description
1
Drive power cable
2
Mini-SAS port 1 connection to port 1 controller
3
Mini-SAS port 2 connection to port 2 controller
