Hardware options installation 34
9.

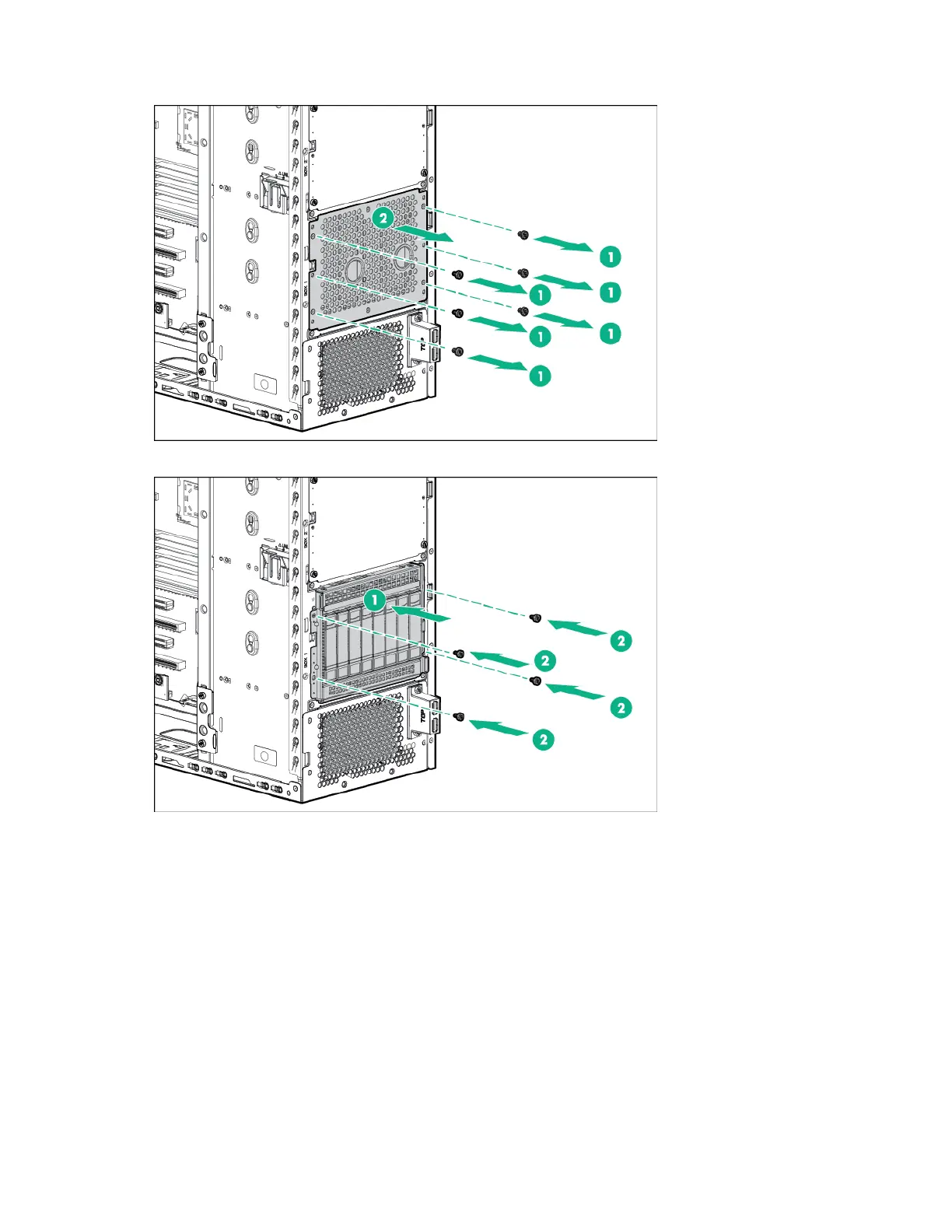

Remove the installed drive cage assembly.
10. Install the 8 SFF hot-plug drive cage in box 1.
11. Connect the drive cage cables:
a. Connect one end of the Mini-SAS cable to the drive backplane and the other end to the system
board.
b. Connect the 8-pin power cable to the drive backplane.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HP HPE ProLiant ML110 Gen9 and is the answer not in the manual?

HP HPE ProLiant ML110 Gen9 Specifications

General IconGeneral
Processor Sockets1
Memory Slots8 DIMM slots
ProcessorIntel Xeon E5-2600 v3/v4
ChipsetIntel C610
MemoryDDR4 SmartMemory
StorageUp to 8 LFF or 16 SFF drives
Storage ControllerDynamic Smart Array B140i or P440ar
RAID SupportRAID 0, 1, 5, 10 with optional controller
Network1GbE
Expansion SlotsPCIe slots
Form FactorTower
Operating System SupportWindows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Maximum Internal Storage16 TB
