HP J8697A Advanced Traffic Management Guide

1-55
Static Virtual LANs (VLANs)
Special VLAN Types
2. If Red_VLAN is configured as the Management VLAN and the DHCP server
is on Blue_VLAN, Blue_VLAN receives an IP address but Red_VLAN does
not. See figure 1-37.

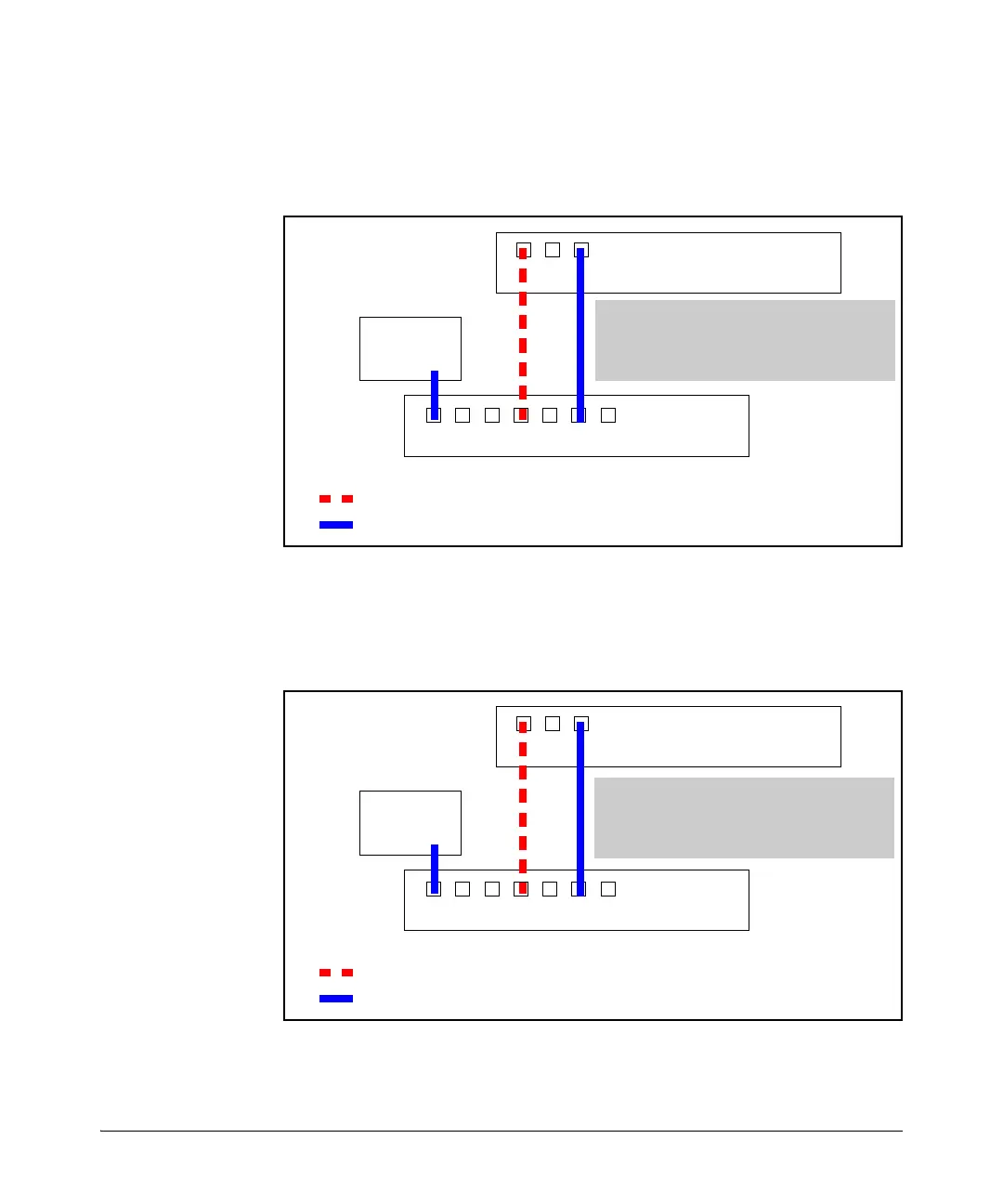

Figure 1-37. Example of DHCP Server on Different VLAN from the Management
VLAN
3. If no Management VLAN is configured, both Blue_VLAN and Red_VLAN
receive IP addresses. See figure 1-38.
Figure 1-38. Example of no Management VLANs Configured
DHCP
Server
Red_VLAN
Blue_VLAN
Red_VLAN is Management VLAN - does not
receive IP address
Blue_VLAN receives IP address
DHCP
Server
Red_VLAN
Blue_VLAN
No Management VLANs are configured.
Red_VLAN and Blue_VLAN receive IP
addresses.

HP J8697A Specifications

General

Ports	24
Form Factor	Rack-mountable
Power Supply	Internal
Management	Managed
VLAN Support	Yes
Jumbo Frame Support	Yes
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
Model	HP J8697A
Port Type	10/100/1000BASE-T
Layer	Layer 2
