HP J8697A Advanced Traffic Management Guide

1-56
Static Virtual LANs (VLANs)
Special VLAN Types
4. If Red_VLAN is configured as the Management VLAN and the client is on
Red_VLAN, but the DHCP server is on Blue_VLAN, the client will not
receive an IP address. See figure 1-39.

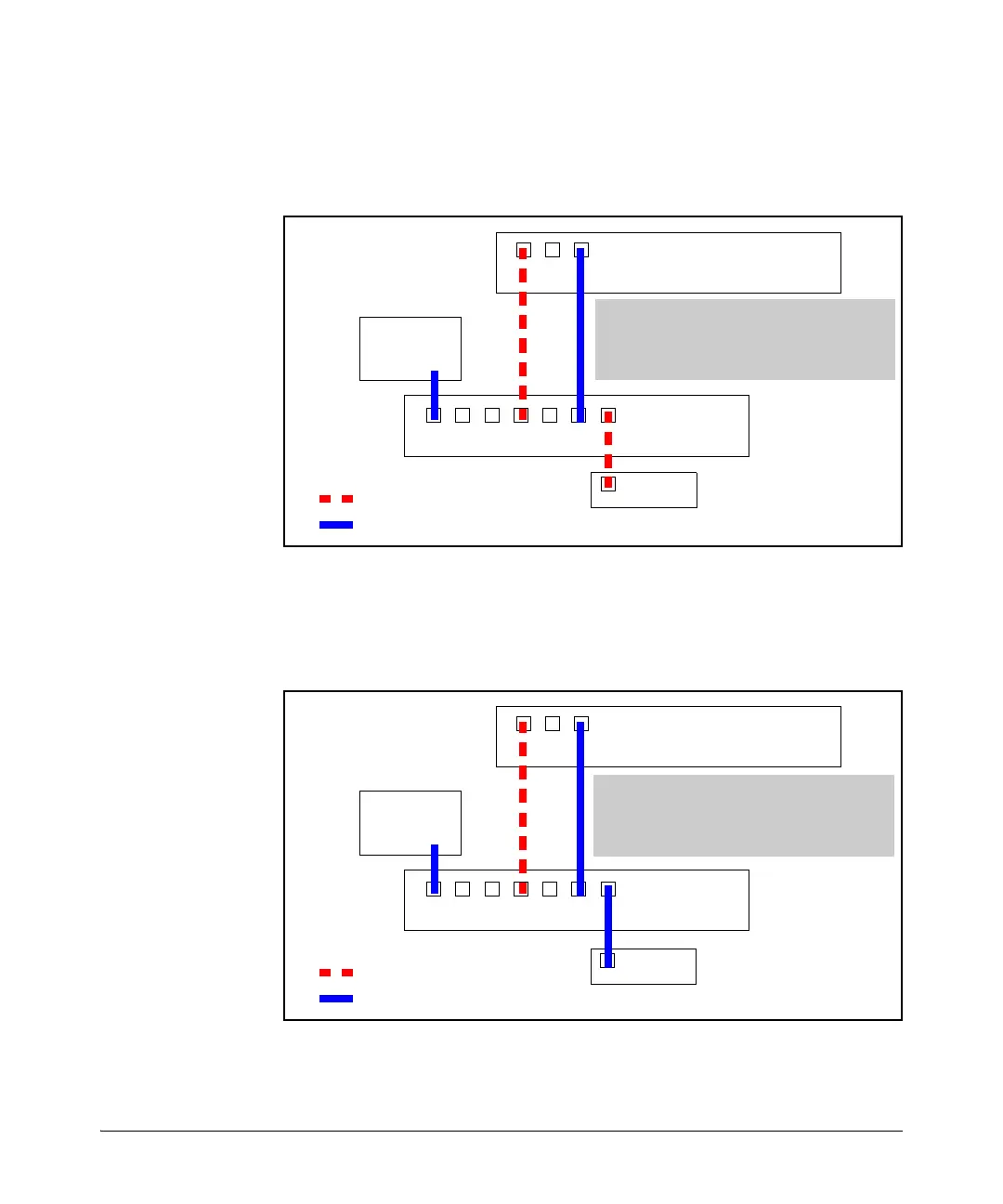

Figure 1-39. Example of Client on Different Management VLAN from DHCP Server
5. If Blue_VLAN is configured as the Management VLAN, the client is on
Blue_VLAN, and the DHCP server is on Blue_VLAN, the client receives an
IP address.
Figure 1-40. Example of DHCP Server and Client on the Management VLAN
DHCP
Server
Red_VLAN
Blue_VLAN
Red_VLAN is the Management VLAN and the
client is on Red_VLAN. The DHCP server is on
Blue_VLAN.
The client does not receive an IP address.
Client
DHCP
Server
Red_VLAN
Blue_VLAN
Blue_VLAN is the Management VLAN and the
client is on Blue_VLAN. The DHCP server is on
Blue_VLAN.
The client receives an IP address.
Client

HP J8697A Specifications

General

Ports	24
Form Factor	Rack-mountable
Power Supply	Internal
Management	Managed
VLAN Support	Yes
Jumbo Frame Support	Yes
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
Model	HP J8697A
Port Type	10/100/1000BASE-T
Layer	Layer 2
