6-24 Removing and Replacing Parts
EN
Fan

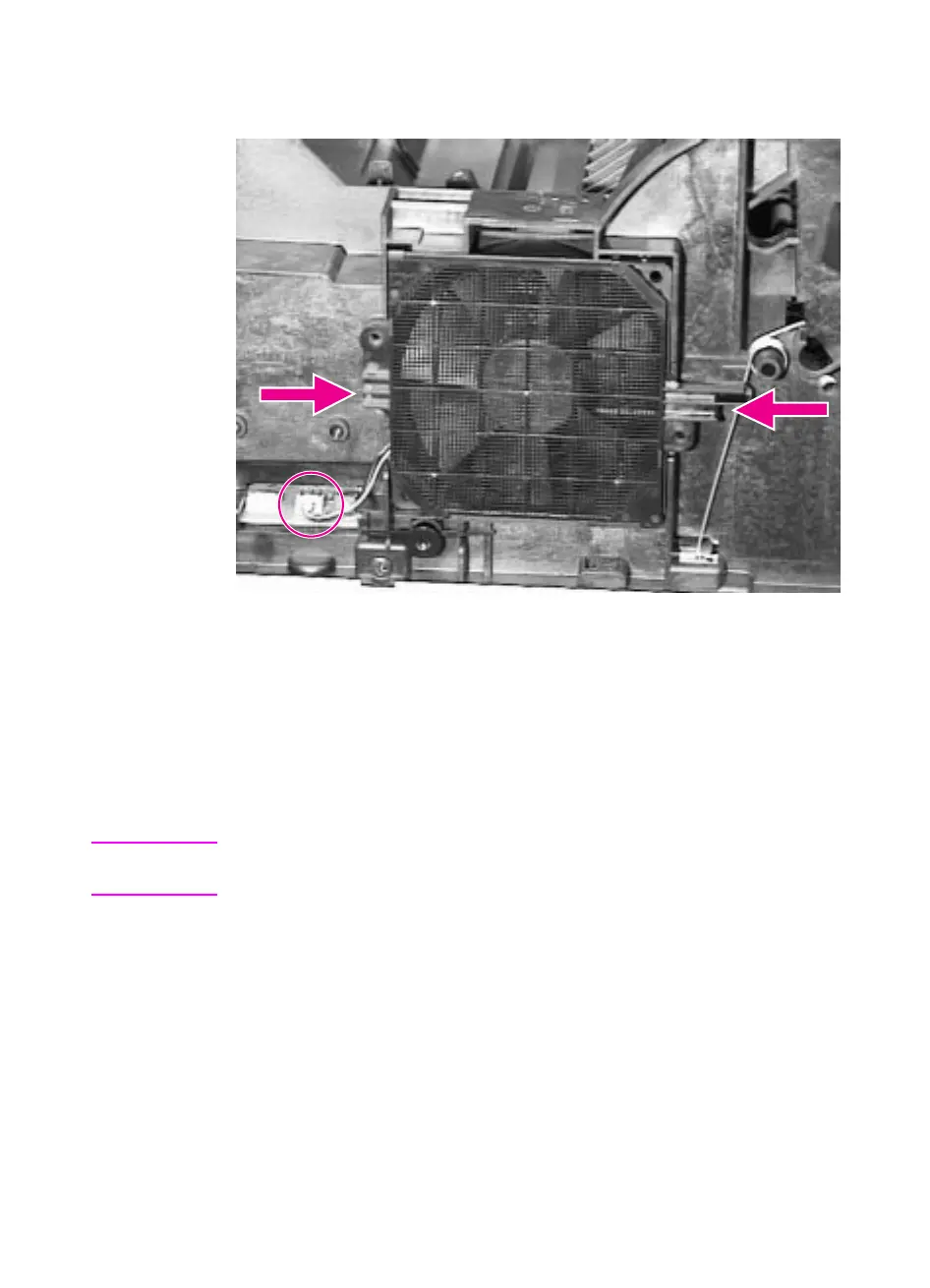

Figure 6-21 Removing the Fan
1. Remove the Top Cover (page 6-7) and the Left Side Cover (page
6-12). The Fan is on the left side of the printer.
2. Unplug the Fan’s connector to the Engine Controller Board.
3. Squeeze the latches on the left and right sides of the Fan Cover.
4. Pull the Fan straight out.
Hint The Cover attaches to the Fan at the top right and bottom left corners.
Retain the Cover; it is separate from the replacement Fan.
To Next Page
