HP LaserJet 4000 - Tray 1 Pickup Assembly

EN
Removing Assemblies
6-29
Tray 1 Pickup Assembly
1. Remove the Covers (starting on page 6-6): Top Cover, Left Side
Cover, Front Right Side Cover, and Tray 1. The Tray 1 Pickup
Assembly is on the front of the printer.

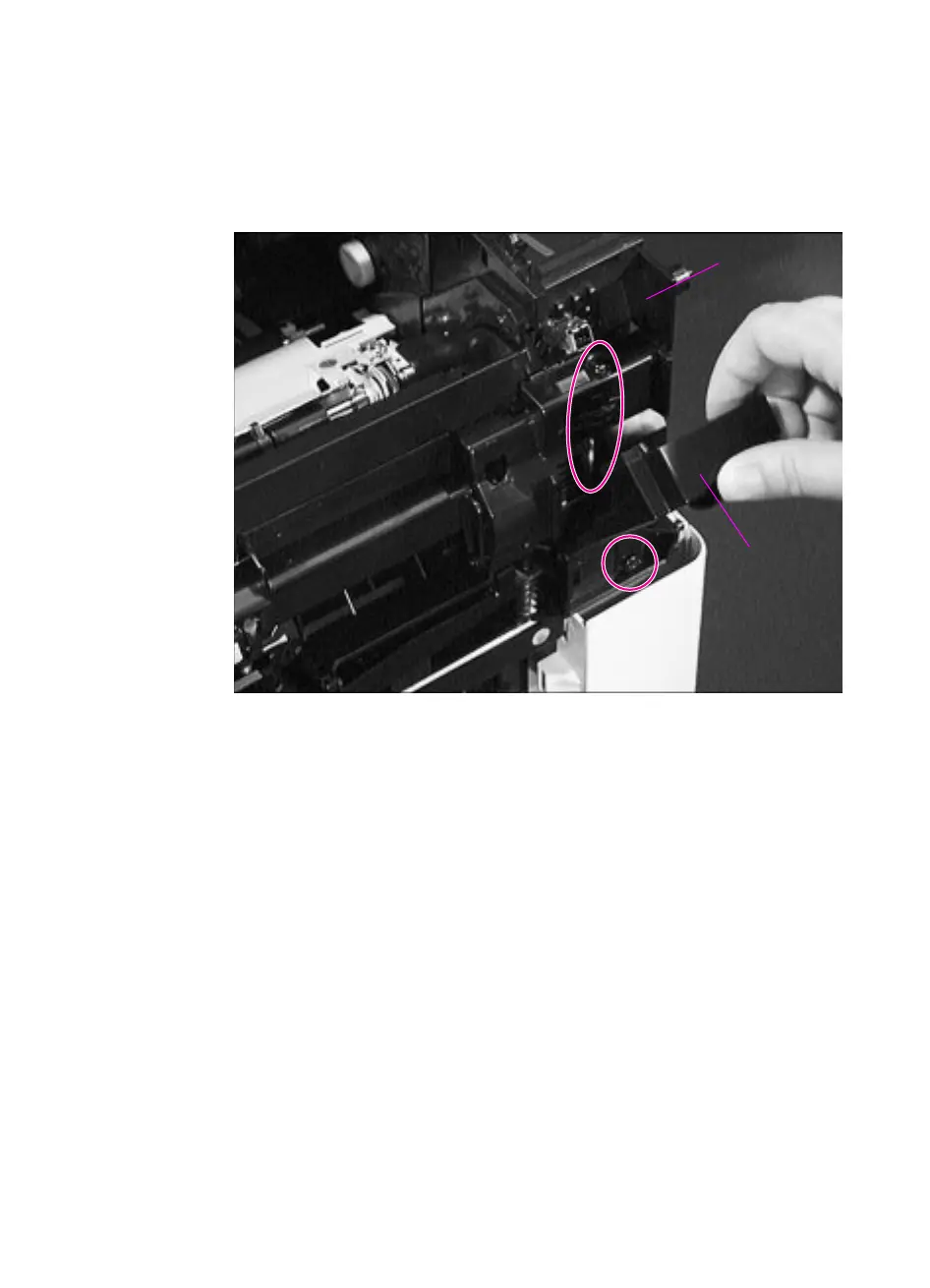

Figure 6-26
Removing the Envelope Feeder Gear Cover
2. Flip down or remove the Envelope Feeder Connector Cover.
3. Remove the Envelope Entrance Cover.
4. Remove the Envelope Feeder Gear Cover as follows:
a. Remove the black self-tapping screw at the bottom of the
Envelope Feeder Gear Cover.
b. Remove the long screw (4.8 inches/116 millimeters) on the
right side of the Tray 1 Pickup Assembly.
Envelope
Feeder Gear
Cover
Envelope
Feeder
Connector
Cover
Step 4a
Step 4b
