Removing Assemblies
6-27
Tray 1 Pickup Roller

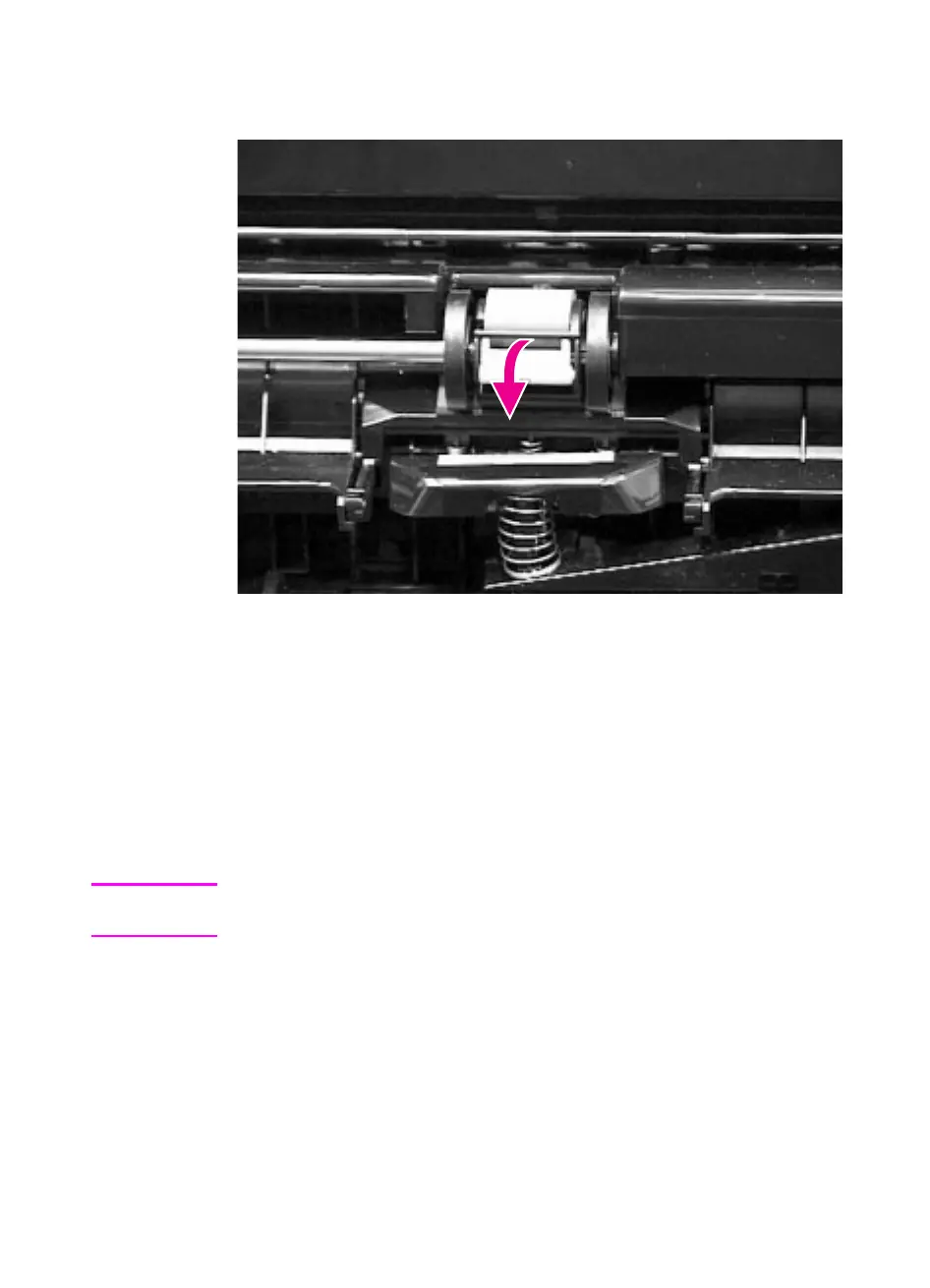

Figure 6-24
Removing the Pickup Roller (shown with Envelope Entrance Cover
removed)
1. Open Tray 1. The Tray 1 Pickup Roller is in the center of the
Tray 1 Pickup Assembly.
2. Grasp the Envelope Entrance Cover and pull it straight away from
the printer.
3. Pry open the blue latch on the Roller.
4. Lift the Roller out.
Hint
To replace the Roller, make sure the pin in the Roller lines up with the
hole in the shaft.
