Removing Assemblies
6-41
Delivery Drive Assembly

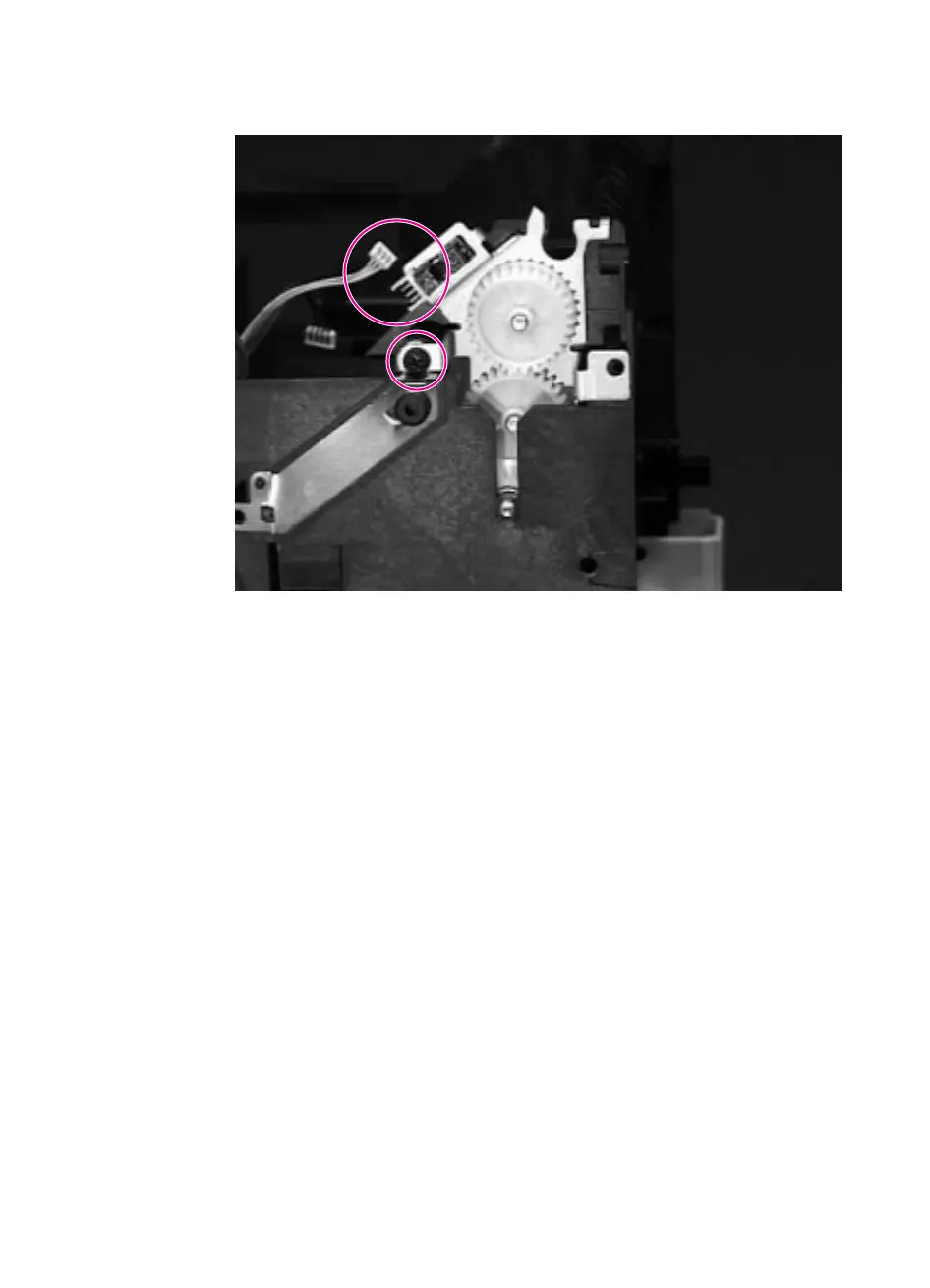

Figure 6-38
Removing the Delivery Drive Assembly
1. Remove the Covers (starting on page 6-6): Top Cover, Left Side
Cover, Front Right Side Cover, Rear Cover/Rear Output Bin, and
Tray 1. Remove the Output Assembly (page 6-21), Formatter
Cage Assembly (page 6-20), Formatter Pan (page 6-39), and
Fuser Assembly (page 6-18). The Delivery Drive Assembly is on
the right rear side of the printer.
2. Remove the single screw.
3. Unplug the 3-pin connector shown.
4. Lift the Delivery Drive Assembly upward, away from the printer.
