Paper Feed System
5-33
Paper Feed System

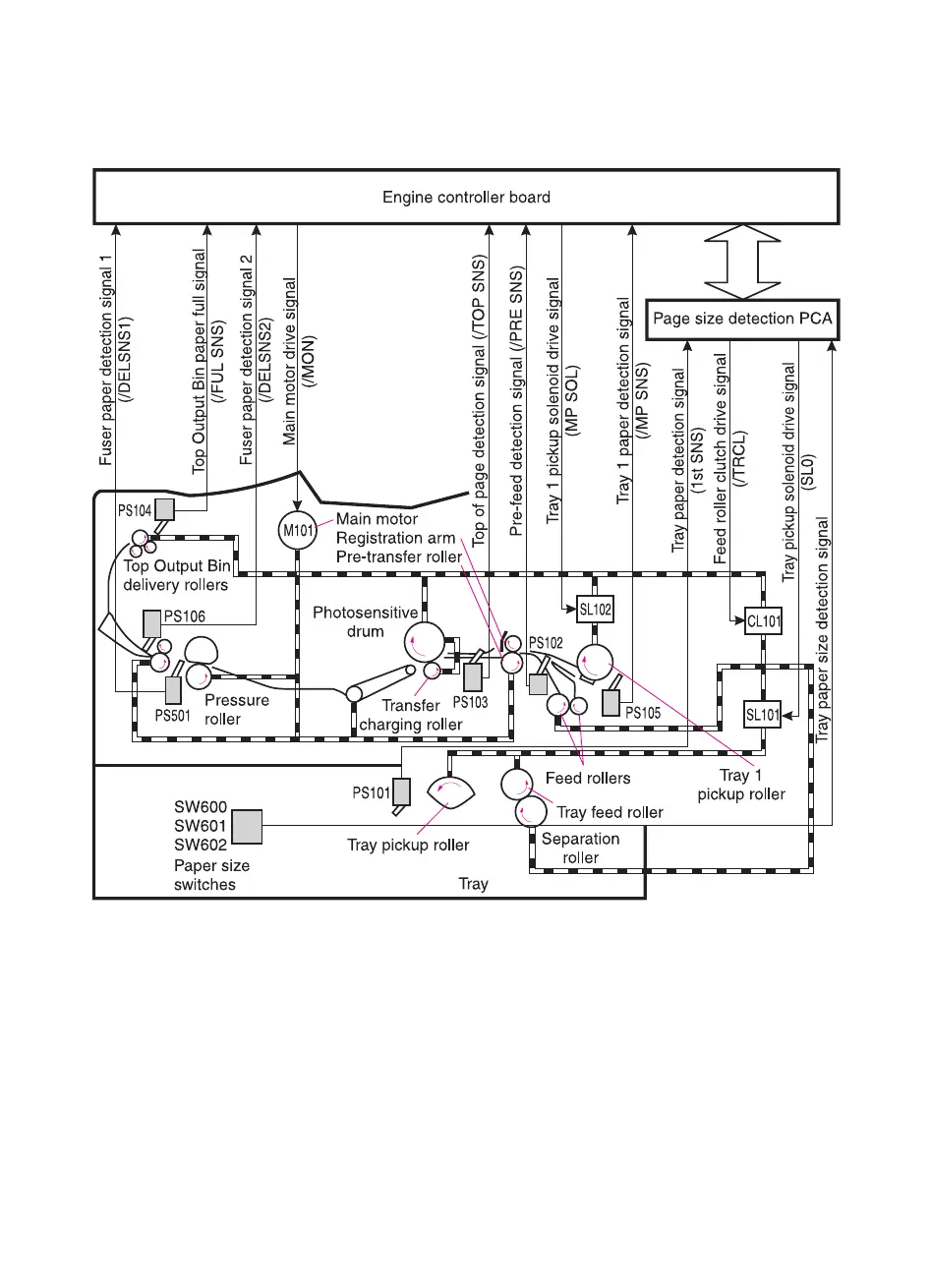

Figure 5-20
Paper Path
Presence of paper in Tray 1 is detected by the Tray 1 paper sensor
(PS105). Presence of paper in Tray 2 is detected by the Tray paper
sensor (PS101) for the HP LaserJet 4000/4000 N, and by the upper
tray paper sensor (PS101) or the lower tray paper sensor (PS102) for
the HP LaserJet 4000 T/4000 TN.
