Removing Assemblies
6-39
Formatter Pan

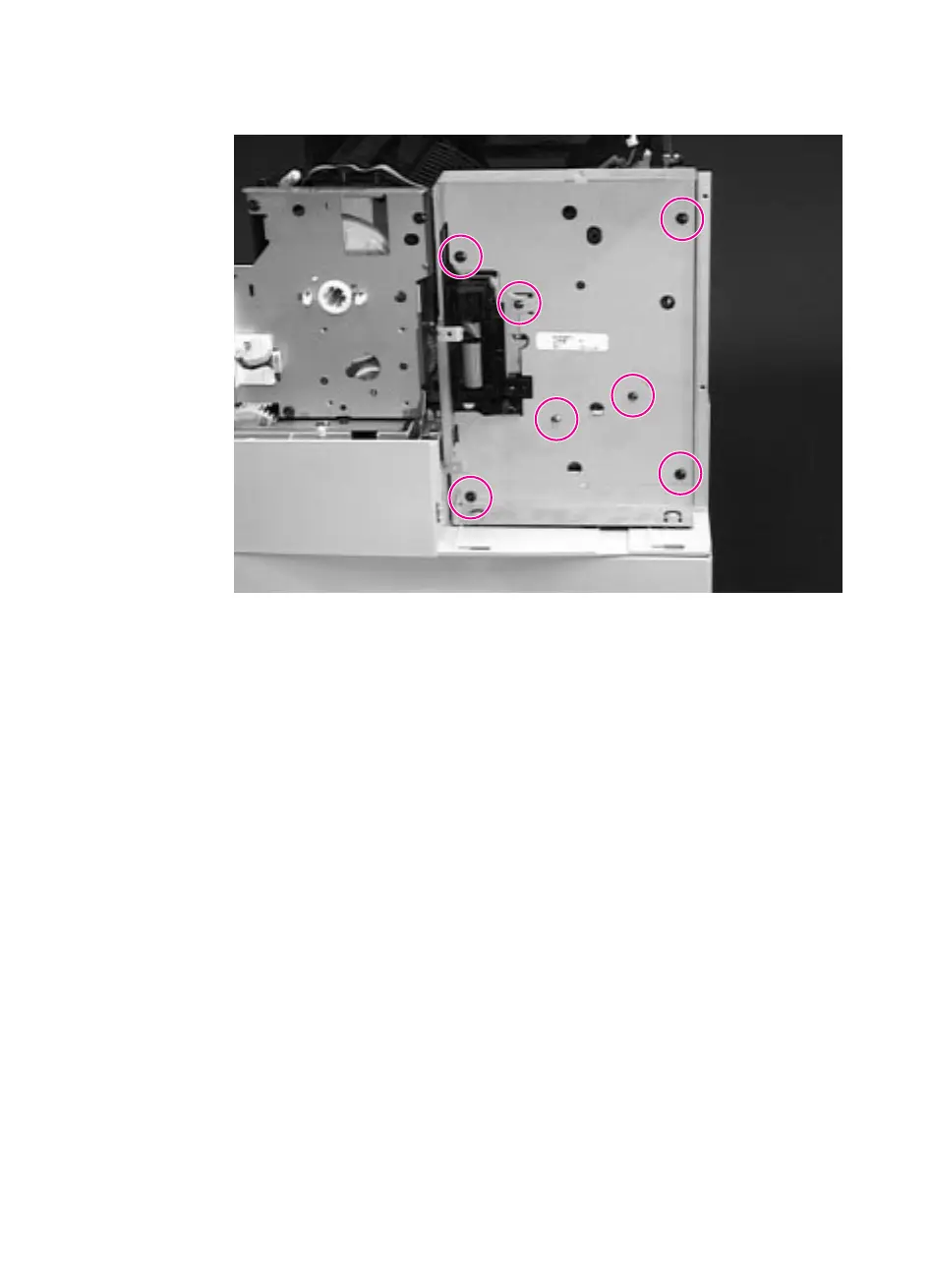

Figure 6-36
Removing the Formatter Pan
1. Remove the Top Cover (page 6-7) and the Front Right Side Cover
(page 6-13). Remove the Formatter Cage Assembly (page 6-20).
The Formatter Pan is on the right rear side. Remove the
Formatter Pan in order to split the engine from the Tray Assembly
or to access the Gear Train.
2. Remove the 4 black self-tapping screws.
3. Remove the 3 silver M-3 screws.
4. Pull the Formatter Pan straight out, away from the printer.
