6-42 Removing and Replacing Parts
EN
Separating the Engine Module from the Paper
Feed Module
This procedure is the same for printers with a single 500-sheet tray or
two 250-sheet trays.
1. Remove the Rear Right Side Cover (page 6-6). Remove the
Formatter Cage Assembly (page 6-20), Formatter Pan (page
6-39), and 2 long screws from the Tray 1 Pickup Assembly (See
Figure 6-26 on page 6-29 and Figure 6-28 on page 6-31).

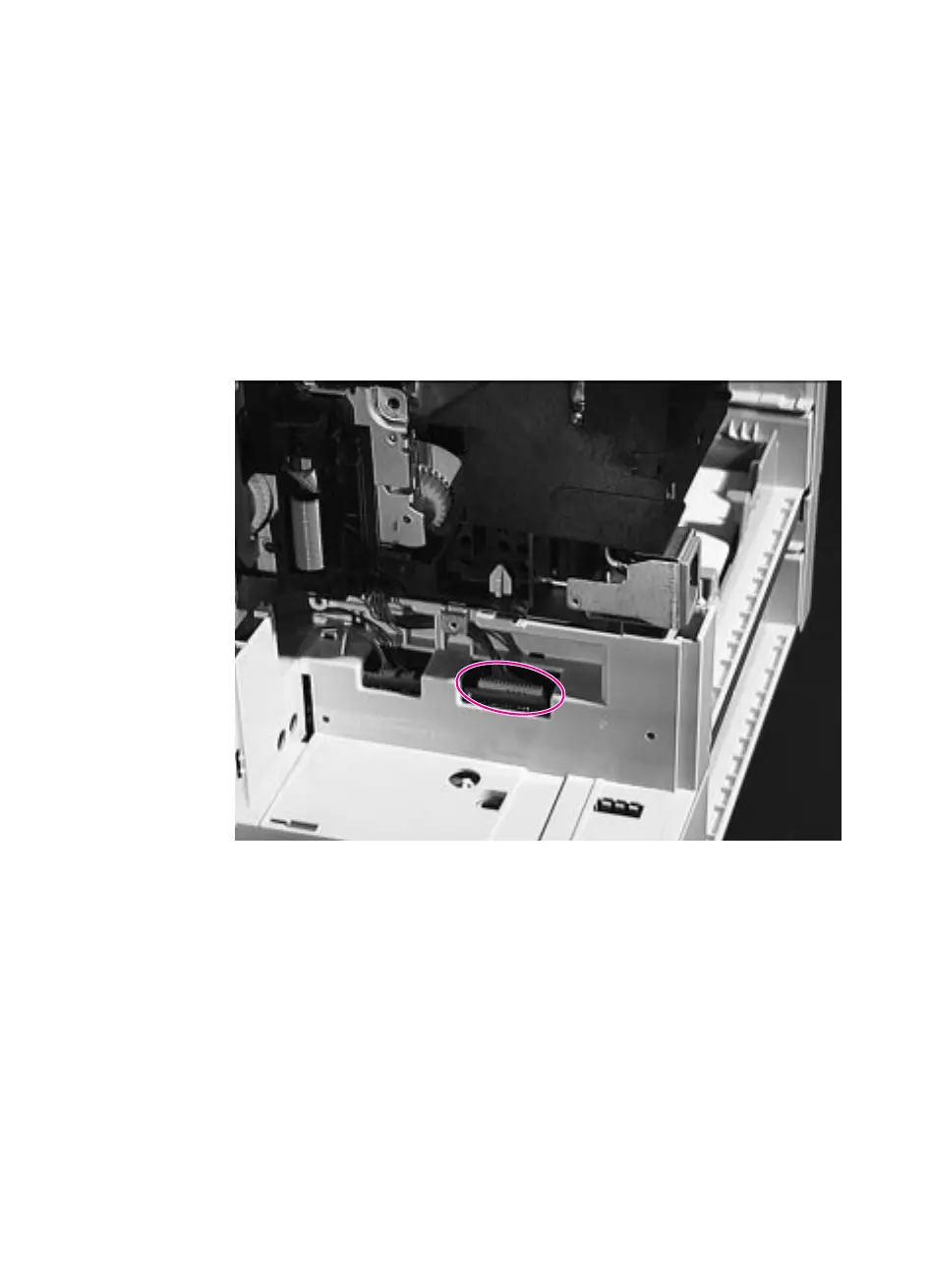

Figure 6-39 Unplugging the Connector to the Paper Feed Module
2. Unplug the connector to the Paper Feed Module on the right rear
side of the printer (under the Formatter Pan). Remove the cable
from its bracket.
