Removing Assemblies
6-31

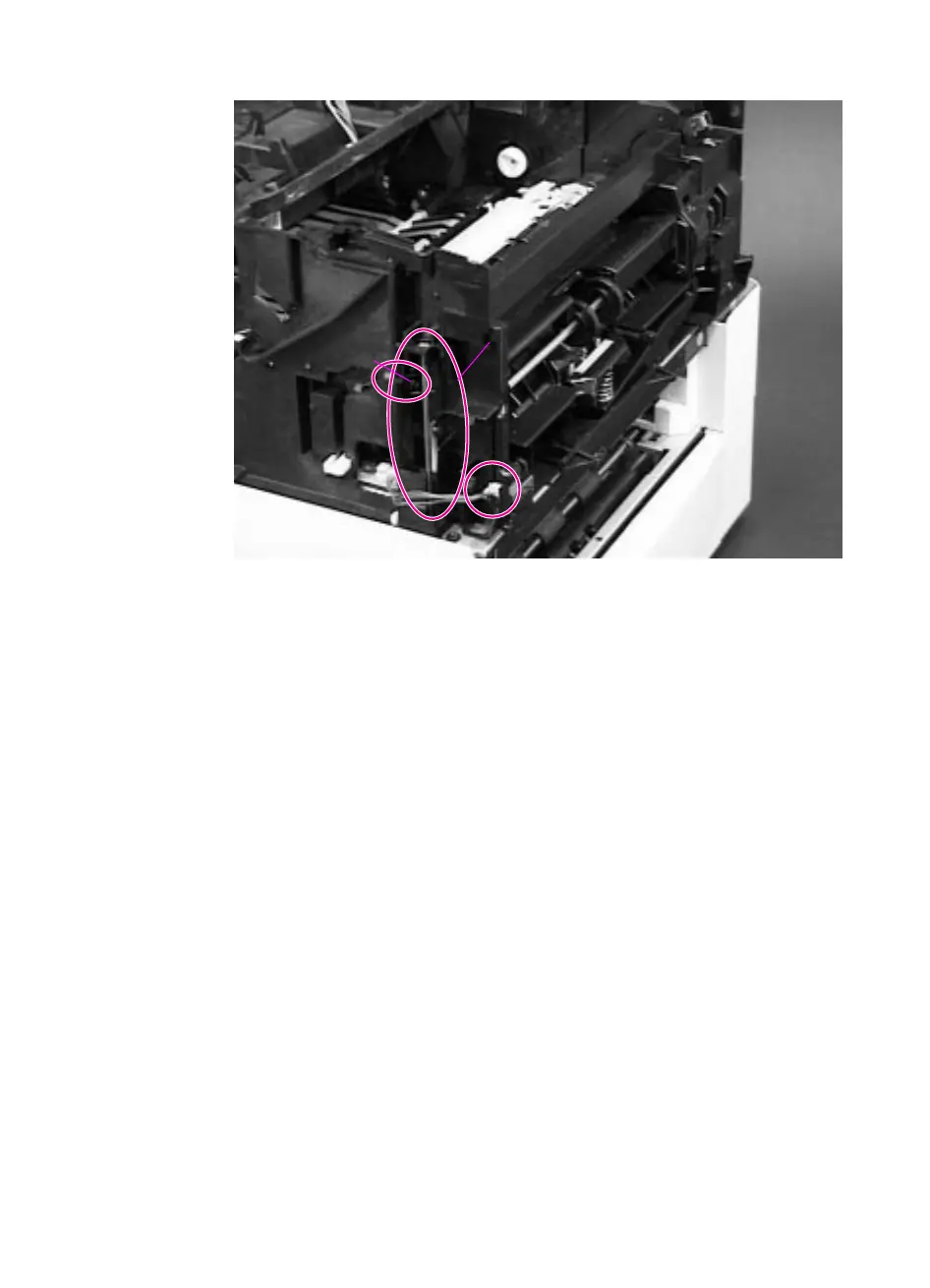

Figure 6-28
Removing the Tray 1 Pickup Assembly - Left Side
6. Unplug the connector to the Engine Controller Board on the left
side of the Tray 1 Pickup Assembly.
7. Remove the long screw (4.8 inches/116 millimeters) from the left
side of the Assembly.
8. Remove the self-tapping screw shown.
Step 6
Step 7
Step 8
