HP LaserJet 4000 - Main Motor

EN
Removing Assemblies
6-25
Main Motor

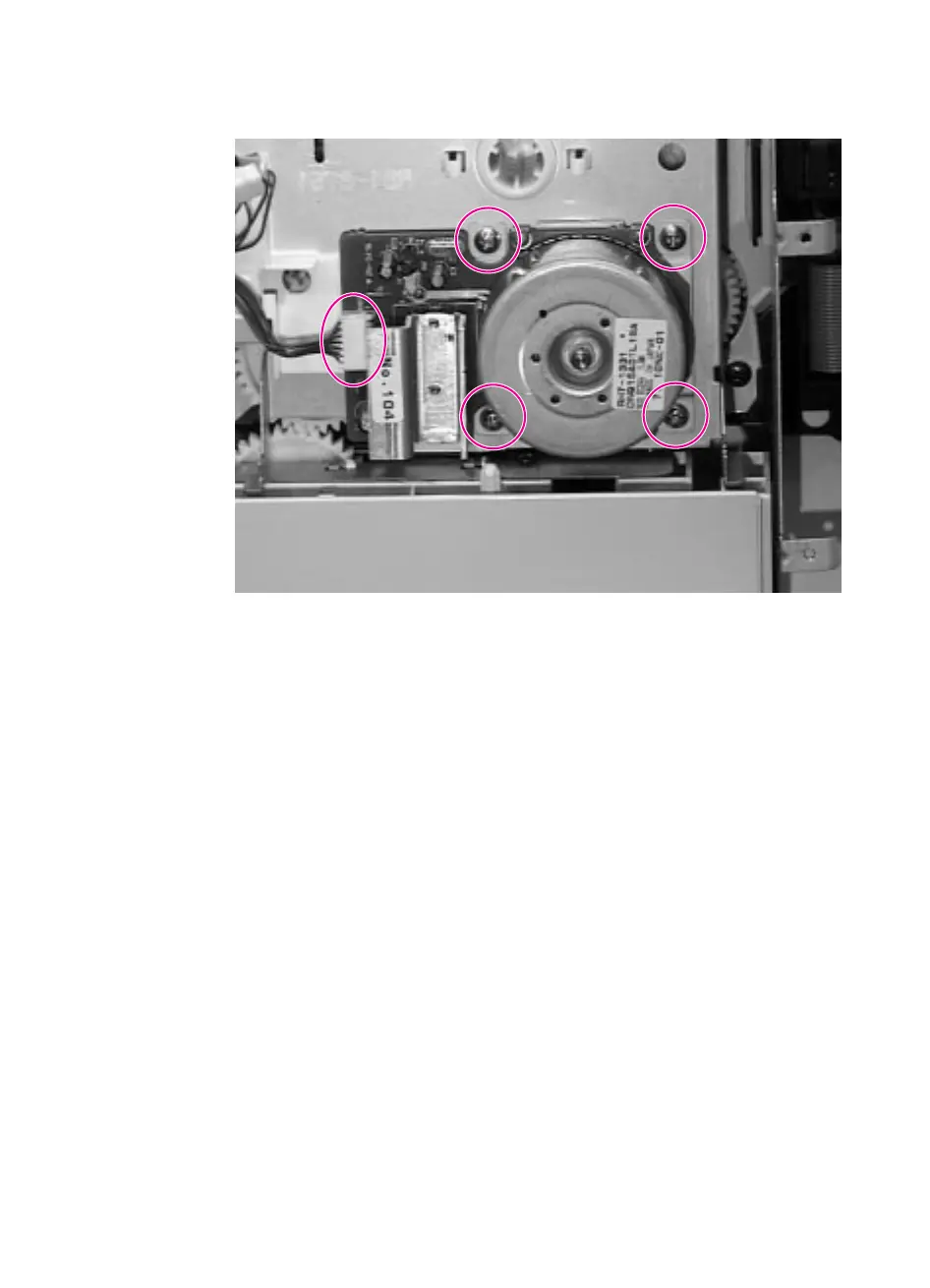

Figure 6-22
Removing the Main Motor
1. Remove the Top Cover (page 6-7) and the Front Right Side Cover
(page 6-13). The Main Motor is on the right front side of the
printer.
2. Unplug the connector.
3. Remove the 4 silver screws around the corners of the metal plate.
4. Remove the Main Motor from the printer.
