Separating the Engine Module from the Paper Feed Module
6-43

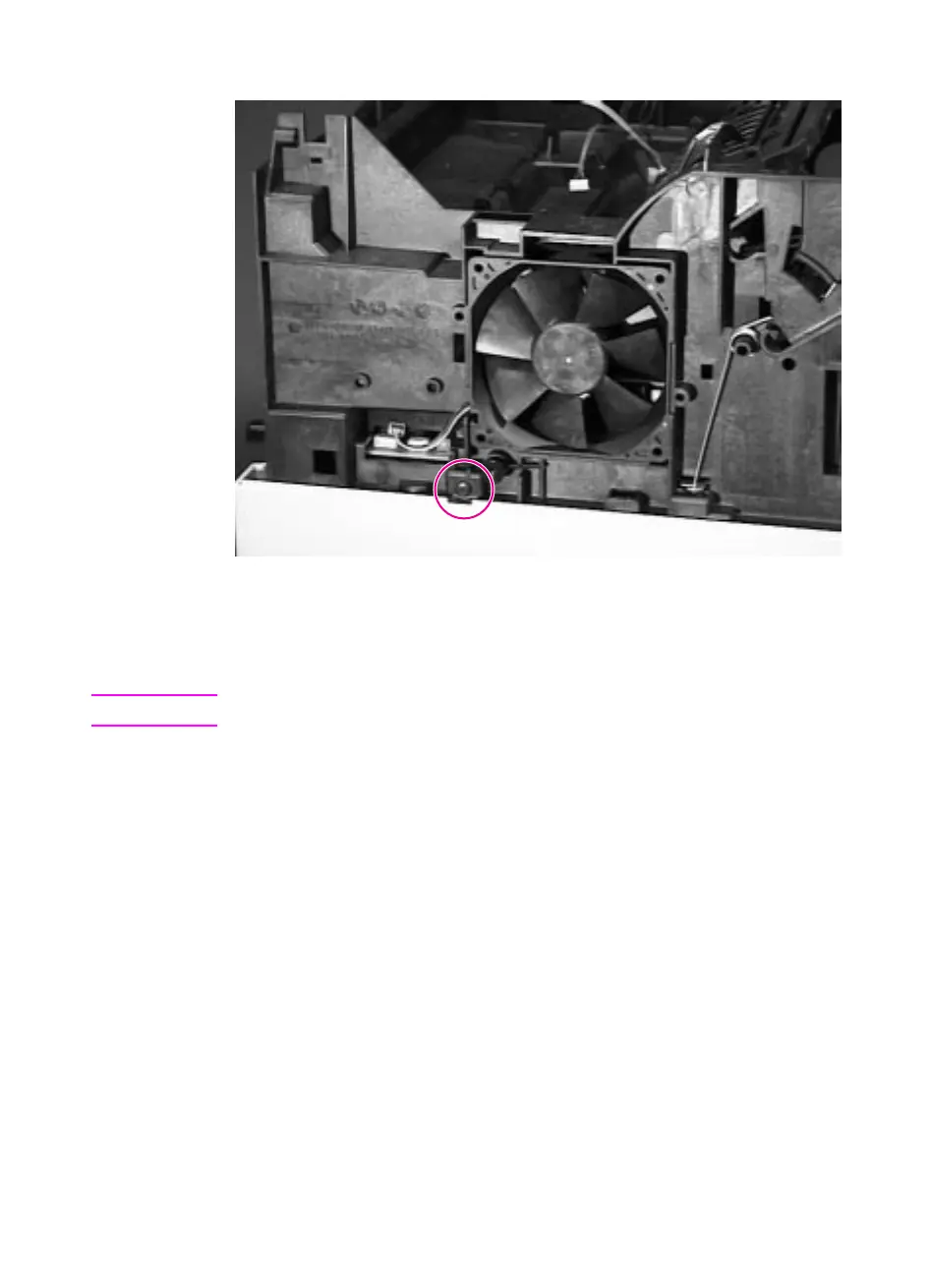

Figure 6-40
Separating the Engine from the Paper Feed Module
3. Remove the single black, self-tapping screw from the left side of
the printer, below the Fan.
CAUTION
Lift the Engine carefully, being sure that all cables are disconnected.
4. Lift the Engine away from the Paper Feed Module.
