Port Trunking
Port Status and Configuration
C
1
Switch Switch
A
W
C Y
B X
D Z
3
2
C
C

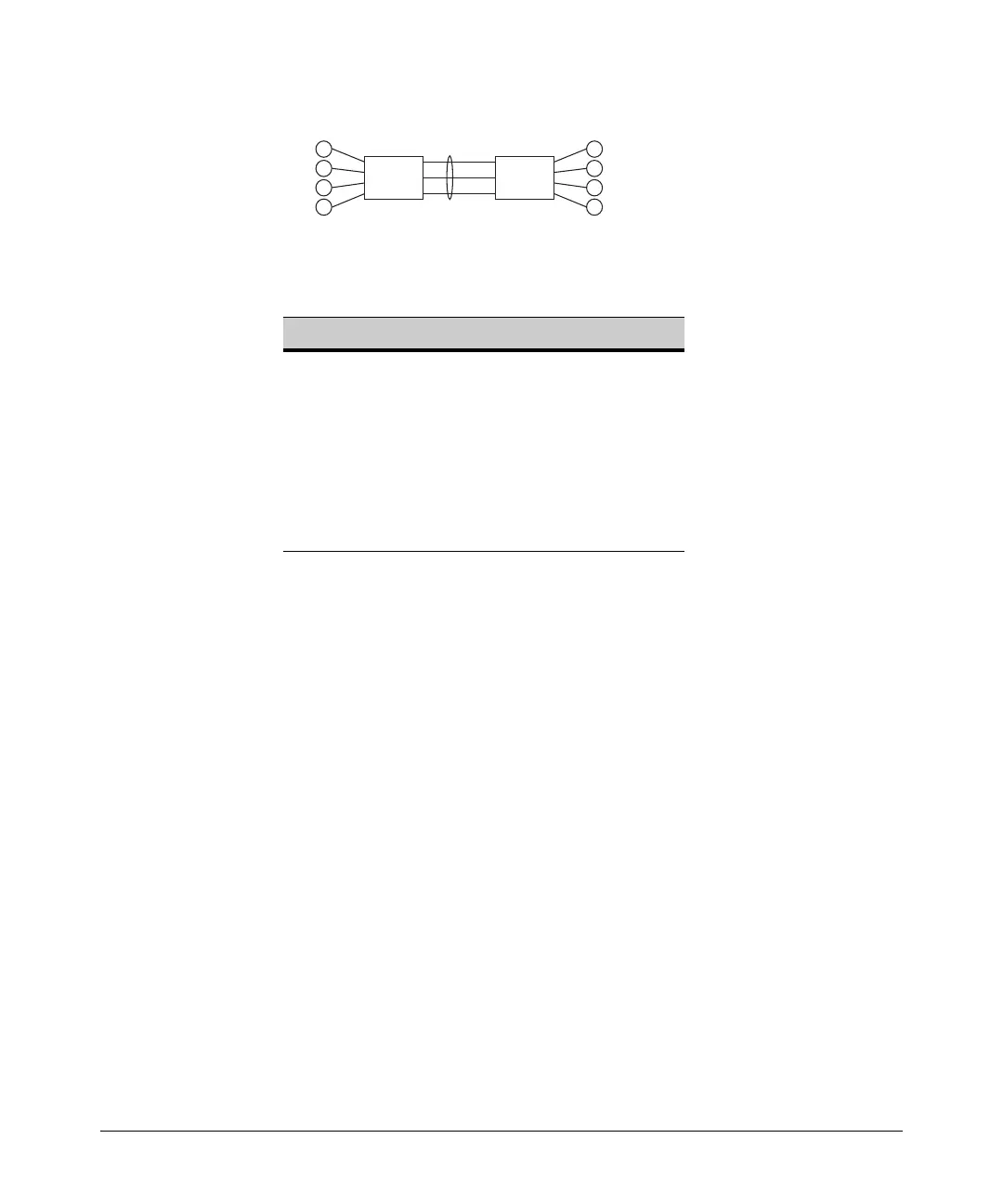

Figure 11-10. Example of Port-Trunked Network
Table 11-6. Example of Link Assignments in a Trunk Group (SA/DA Distribution)
Source: Destination: Link:
Node A Node W 1
Node B Node X 2
Node C Node Y 3
Node D Node Z 1
Node A Node Y 2
Node B Node W 3
