Planning for Network Growth
Add or Upgrade Equipment
10-13

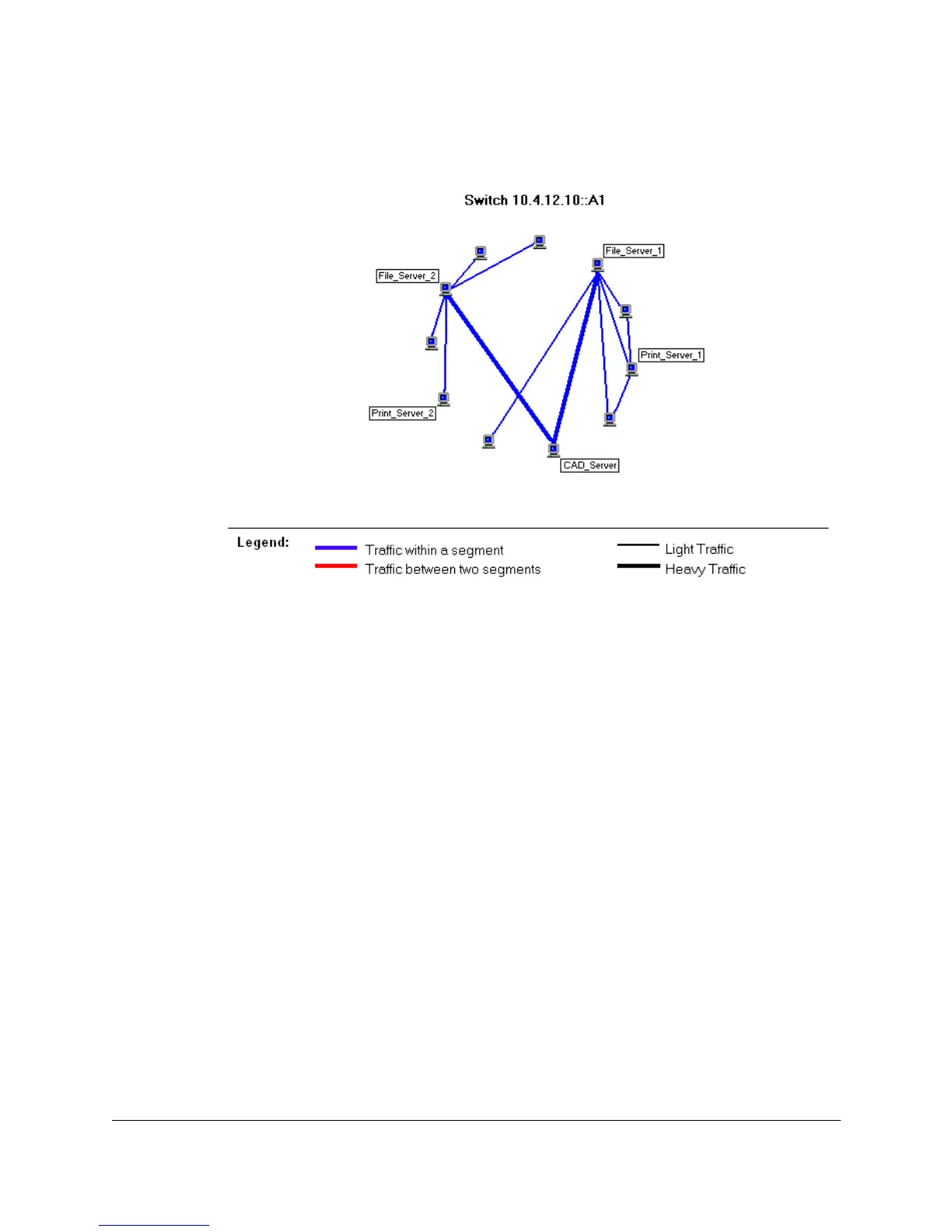

Figure 10-7. The traffic pattern before dividing into workgroups
After the segment was divided into three workgroups, the traffic could be
represented as shown in the following figure:
