Networking Devices
Custom Groups
6-7
■ Type of port, for example, 10Base-T
■ The address of the device connected to the port
■ The port number connected to on the device
Devices that are underlined (linked) have more devices connected to them.
Click on the device address; a new table with that device’s connections
displays.

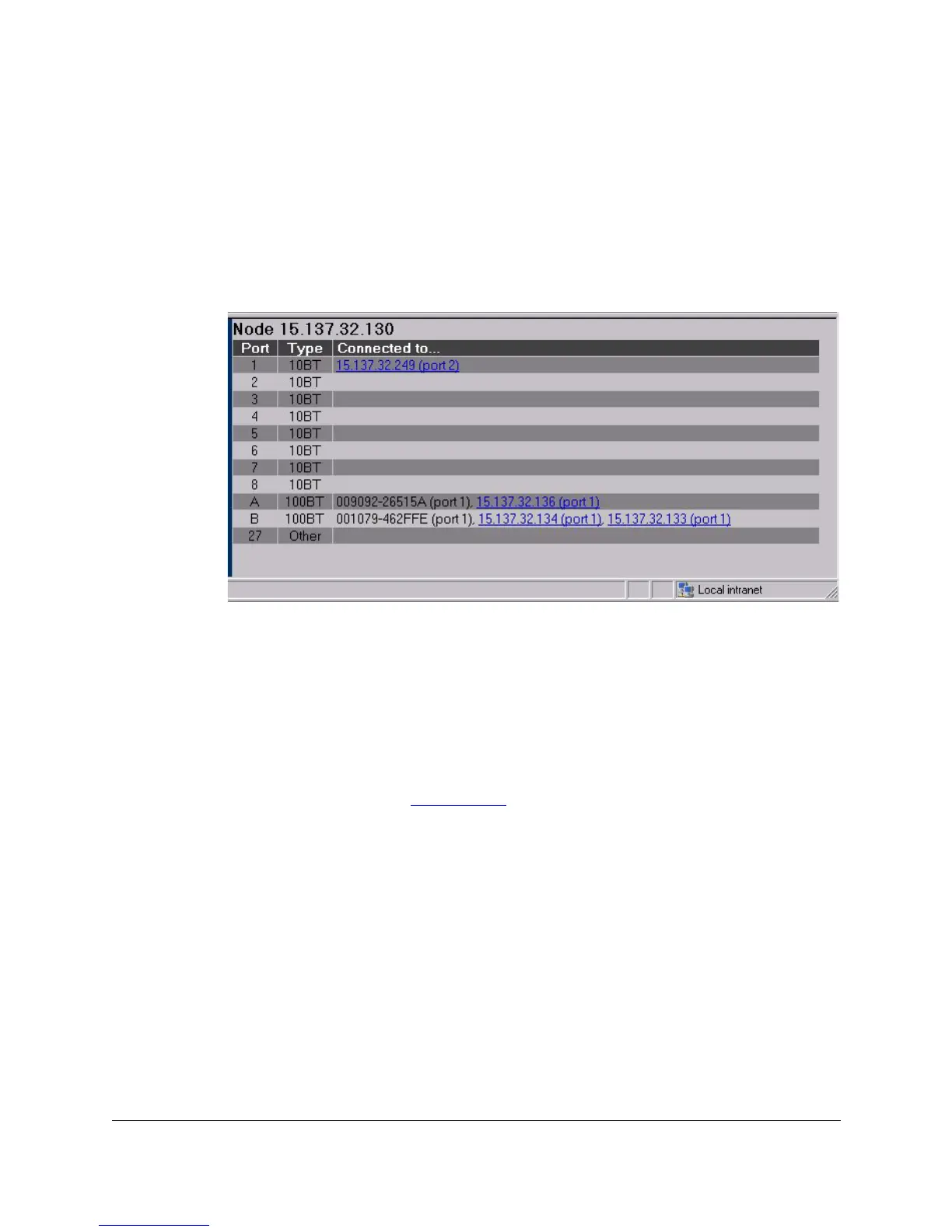

Figure 6-5. Node Port Table for device 15.37.32.130
When a link has been clicked on, it is no longer blue.
Custom Groups
You may want to perform certain maintenance tasks on a group of devices,
for example, downloading
the latest firmware for a type of hub. Select the
devices that you want in the Custom group by clicking on the device in the
list, then selecting Add to Custom Group from the Actions menu. You can select
multiple devices at one time by using Ctrl-click on each device that you want
to include. Enter the name of the Custom Group and click OK.
