HP ProCurve User Manual

Group Policies
Security Configuration Policies
7-15
■ Discovery—Enables a device to be discovered by HP Toptools for Hubs
and Switches for mapping in a Topology view. The only tasks allowed are
Link Test and Discovery.
■ Restricted—Provides partial access to HP TopTools features (not
Community Name settings or Authorized Managers)
■ User—Provides almost complete access to HP TopTools features
■ Full—Provides complete access to all HP TopTools features

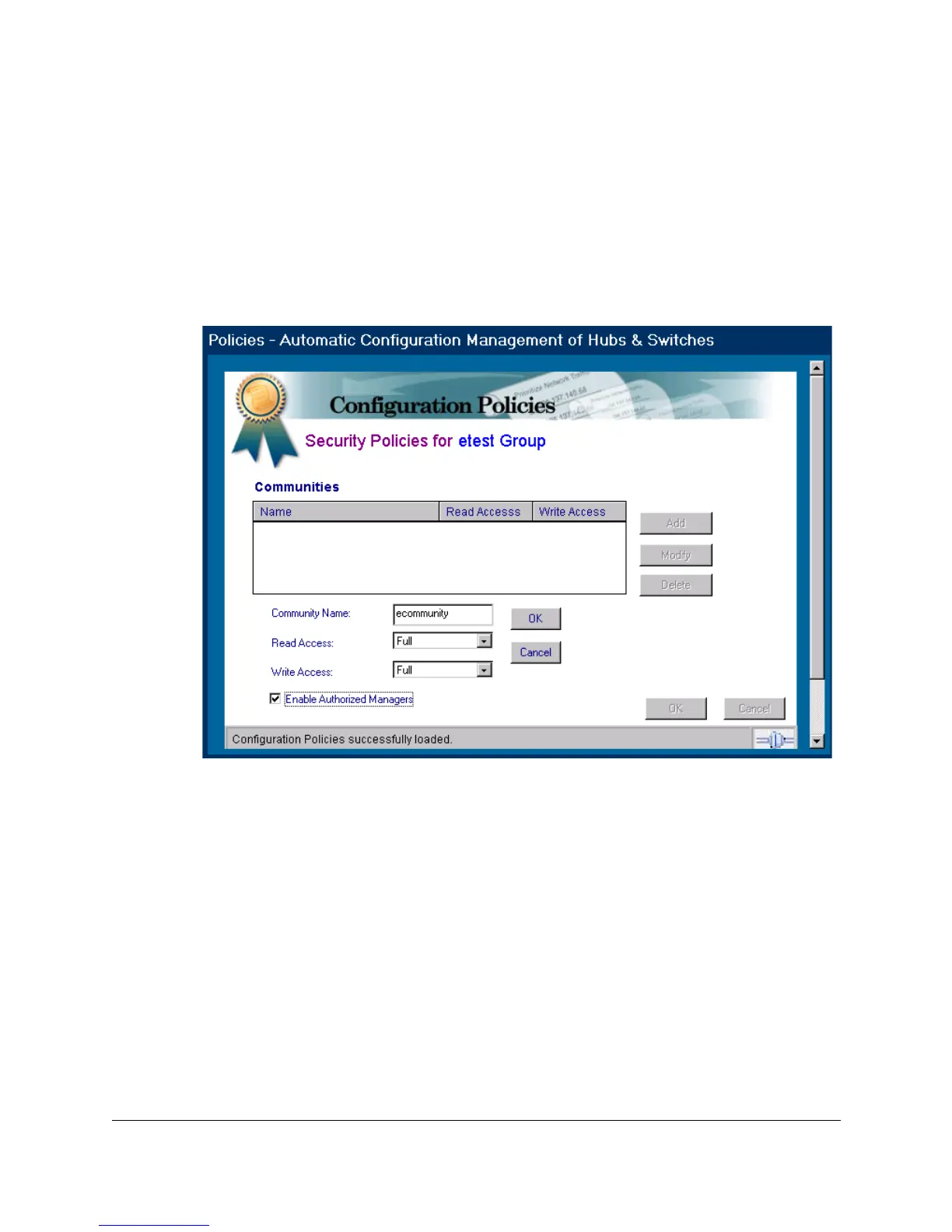

Figure 7-9. Security Policies Page
Adding a Community
To add a community for a group:
1. Click on the Add button. A blank field for the new community name
appears below the Communities box.
2. Enter the name of the new community. Then select the Read Access and
Write Access for that community.
3. Check the Enable Authorized Managers check box if you want to allow the
addition of Authorized Managers to manage this community.
4. Click on OK.
