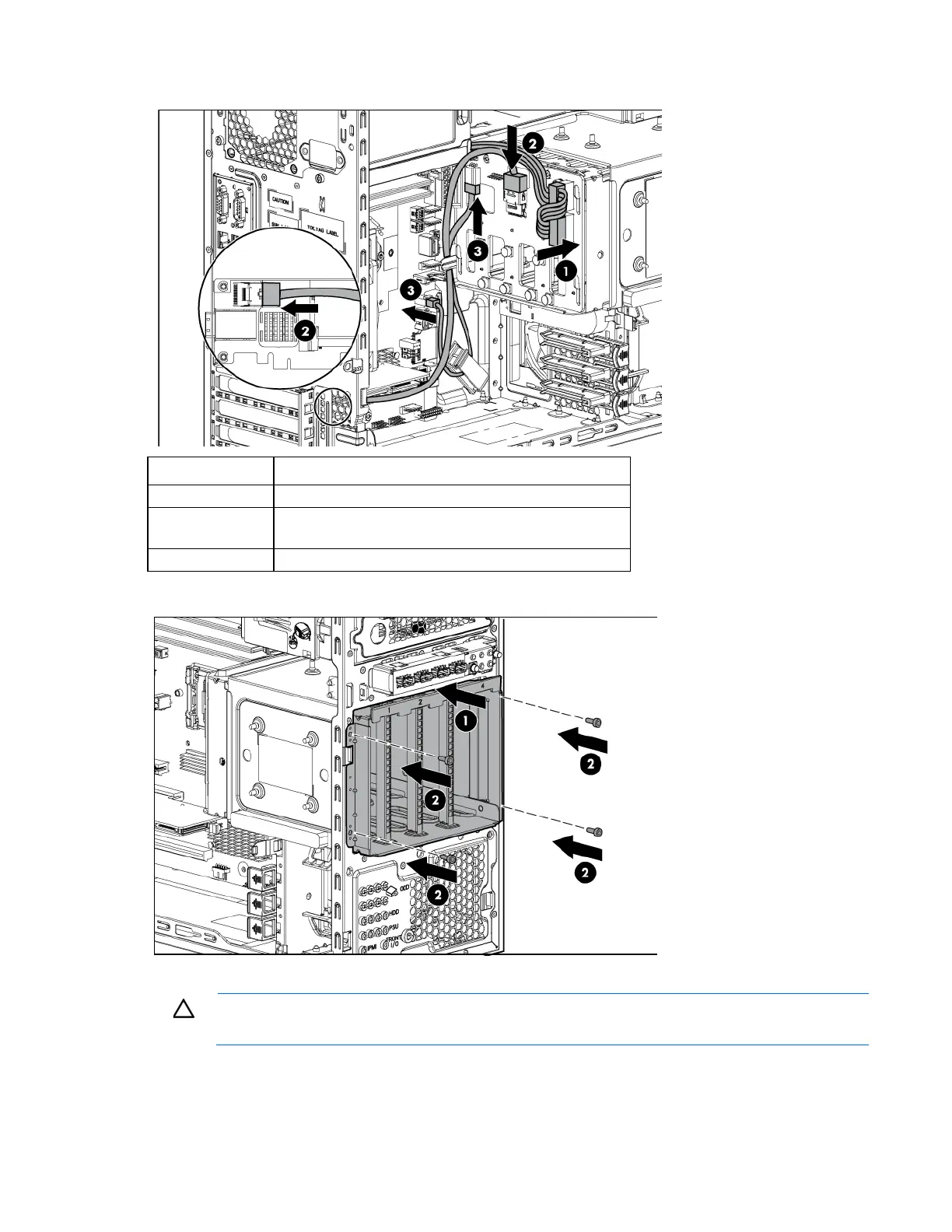

Connect the cable to an HP Smart Array SAS RAID controller.
Item Description
1
Connect the power cable
2
Connect the mini-SAS cable to the HP Smart Array SAS
RAID controller
3
Connect the I
2
C cable
9. Slide the drive cage assembly fully into the server chassis and install the four screws.
10. Install the hard drives and hard disk blanks in the hard drive cage.
CAUTION: To prevent improper cooling and thermal damage, do not operate the server unless
all bays are populated with either a component or a blank.
