HP V1905 Series User Manual

60

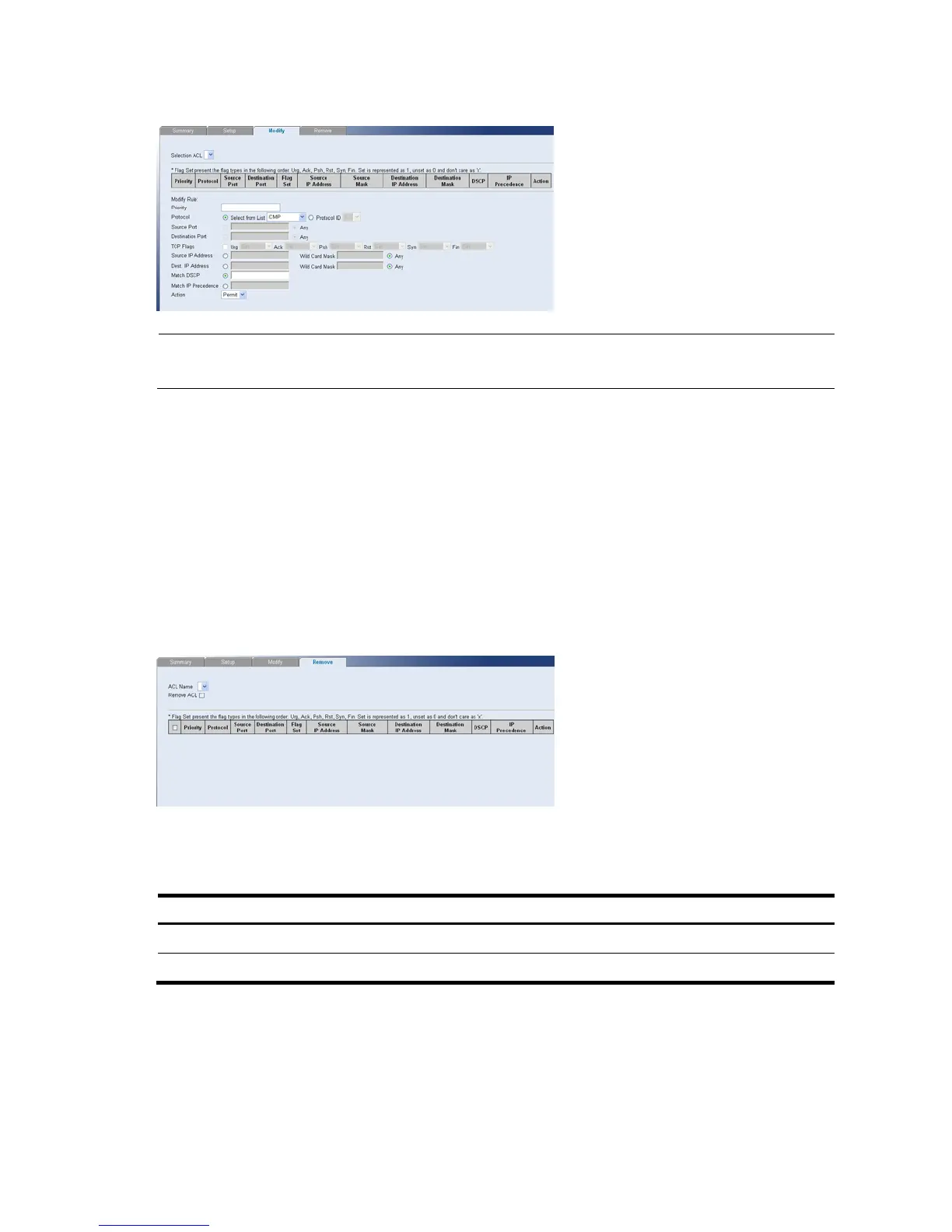

Figure 96 IP Based ACL Modify Page
NOTE:
The description of parameters in the page refers to Defining IP Based ACL.
1. Selects the ACL to be modified.
2. Selects the Rule to be modified.
3. Modifies the fields of the Rule.
4. Click Apply.
Removing IP Based ACL
The IP Based ACL Remove Page allows the network administrator to remove IP-based ACL or IP-based ACL
rules.
Click Device  ACL  IP Based ACL  Remove. The IP Based ACL Remove Page opens.
Figure 97 IP Based ACL Remove Page
The IP Based ACL Remove Page contains the following fields:
Table 77 IP Based ACL Remove Page item description
Item Descri
p
tion
ACL Name Selects an IP-based ACL for removal.
Remove ACL Enables the ACL to be removed.
To remove an IP-based ACL:
1. Select an ACL Name to be removed.
2. Check Remove ACL.
3. Click Remove.

HP V1905 Series Specifications

General

Model	HP V1905 Series
VLAN Support	No
QoS	No
Management	Unmanaged
Jumbo Frame Support	No
Type	Unmanaged
Ports	8, 16, 24, or 48 ports
Uplink Ports	Gigabit uplink ports
MAC Address Table Size	4K entries
Power Consumption	Varies by model
Dimensions	Varies by model
Weight	Varies by model
Operating Temperature	0°C to 40°C
Operating Humidity	10% to 90% non-condensing
