1. AP4050DN-E 2. IoT card 3. M2x7 screws

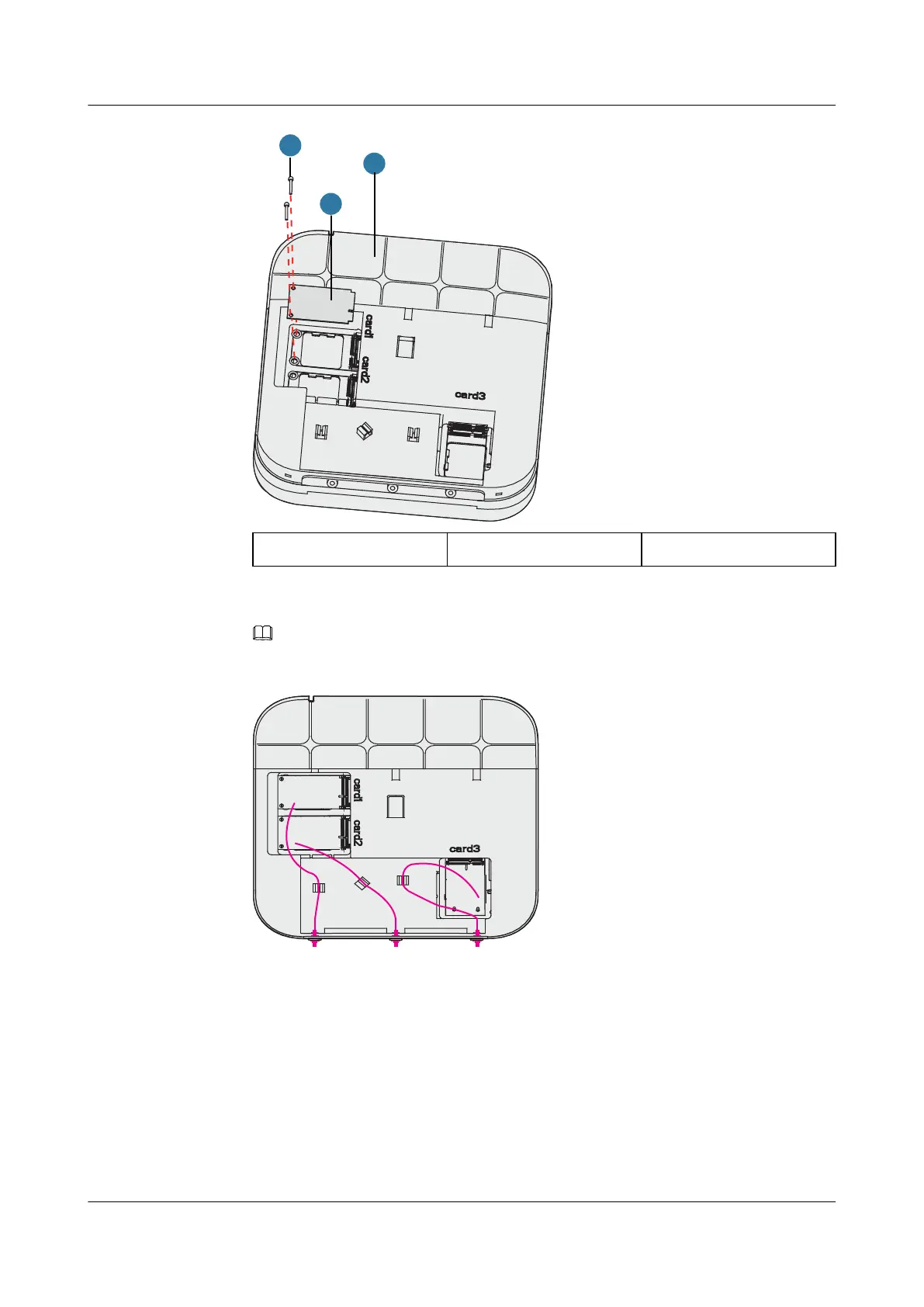

4. Install RF cables and sort cables following the instruction shown in the figure.
NOTE
l The diagonal size of a hexagon SMA connector must be less than or equal to 8 mm; otherwise, the
cable cannot be installed.
5. Slide the cover back.
Two-Cable per Card
In this mode, only one RFID card can be installed. The card1 slot is preferentially used.
1. Remove the front cover of an AP.
AP4050DN-E
Hardware Installation and Maintenance Guide
2 AP Installation
