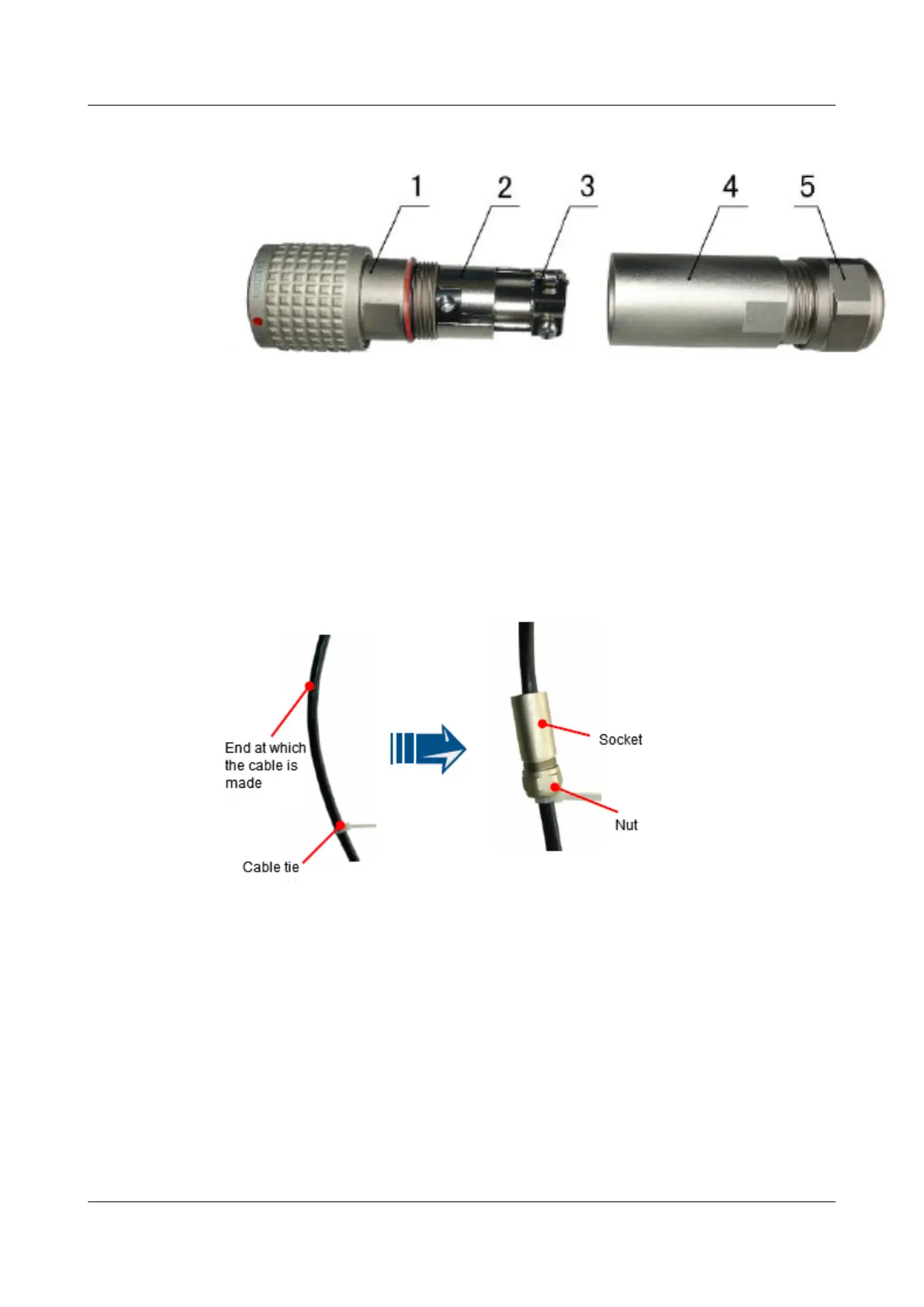

Figure 5-1 Components of DC 2-pin round connector A
1. Enclosure 2. Shield circle 3. Clip 4. Socket 5. Nut
Procedure
Step 1 Bind a cable tie, separate the socket and nut, and install them on the cable, as shown in Figure
5-2.
Figure 5-2 Installing the nut on the cable
Step 2 Strip the cable as shown in Figure 5-3.
AP4050DN-E
Hardware Installation and Maintenance Guide
5 Appendix
Issue 05 (2018-02-02) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
37
