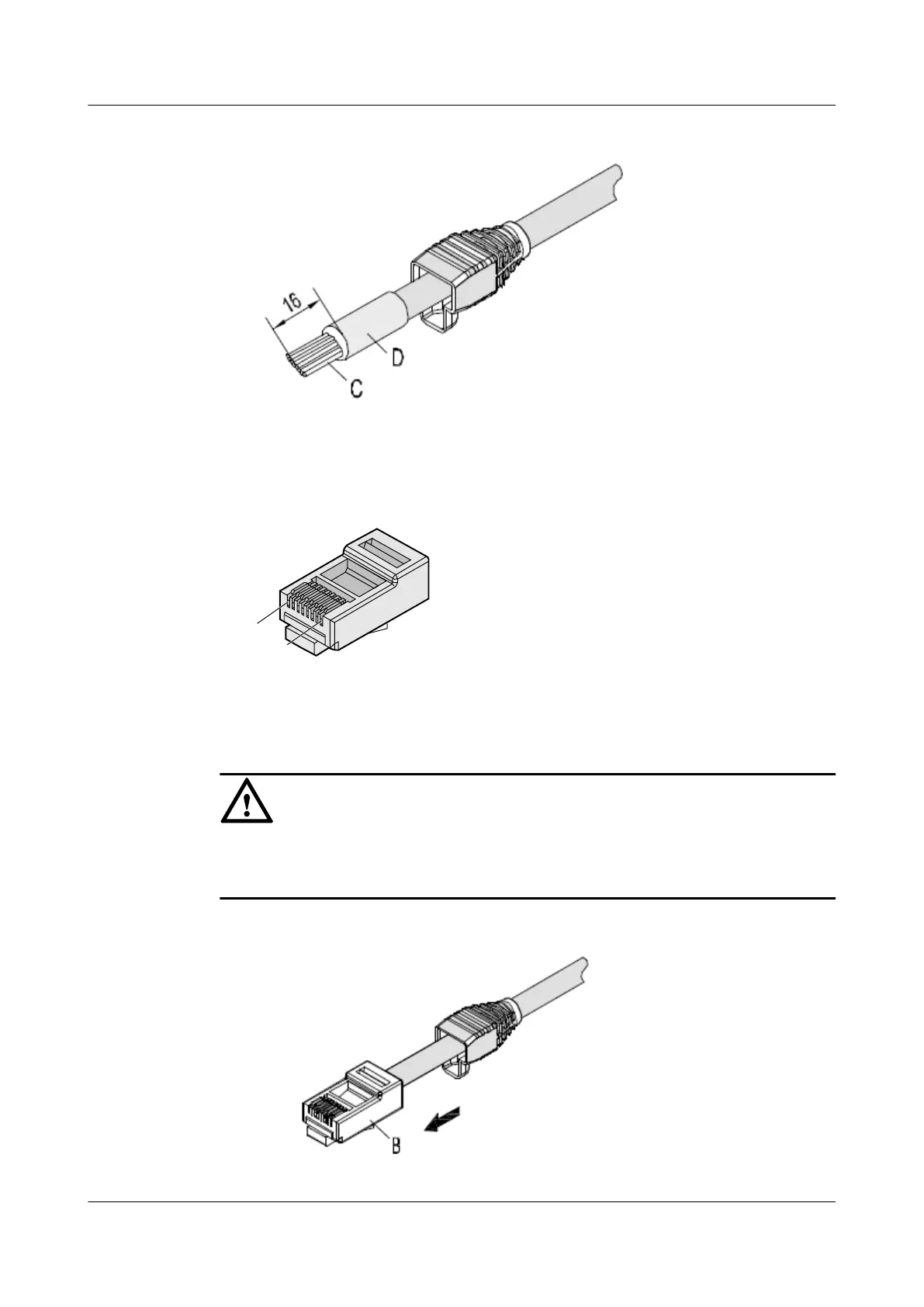

Figure 5-70 Neatly cutting the twisted pair
Figure 5-71 Pin arrangement of the connector
Step 5 Insert the arranged four twisted pair cables into the connector, as shown in Figure 5-72.
NOTICE
l Cables must be inserted into the bottom.
l The aluminum foil must keep intact after cables are inserted into the connector.
Figure 5-72 Inserting cables into the connector
AP4050DN-E
Hardware Installation and Maintenance Guide
5 Appendix
Issue 05 (2018-02-02) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
73
