Step 6 Use the crimping tool dedicated for FTP network cables to crimp the connector and neatly cut
the aluminum foil along the end face of the connector, as shown in Figure 5-73.

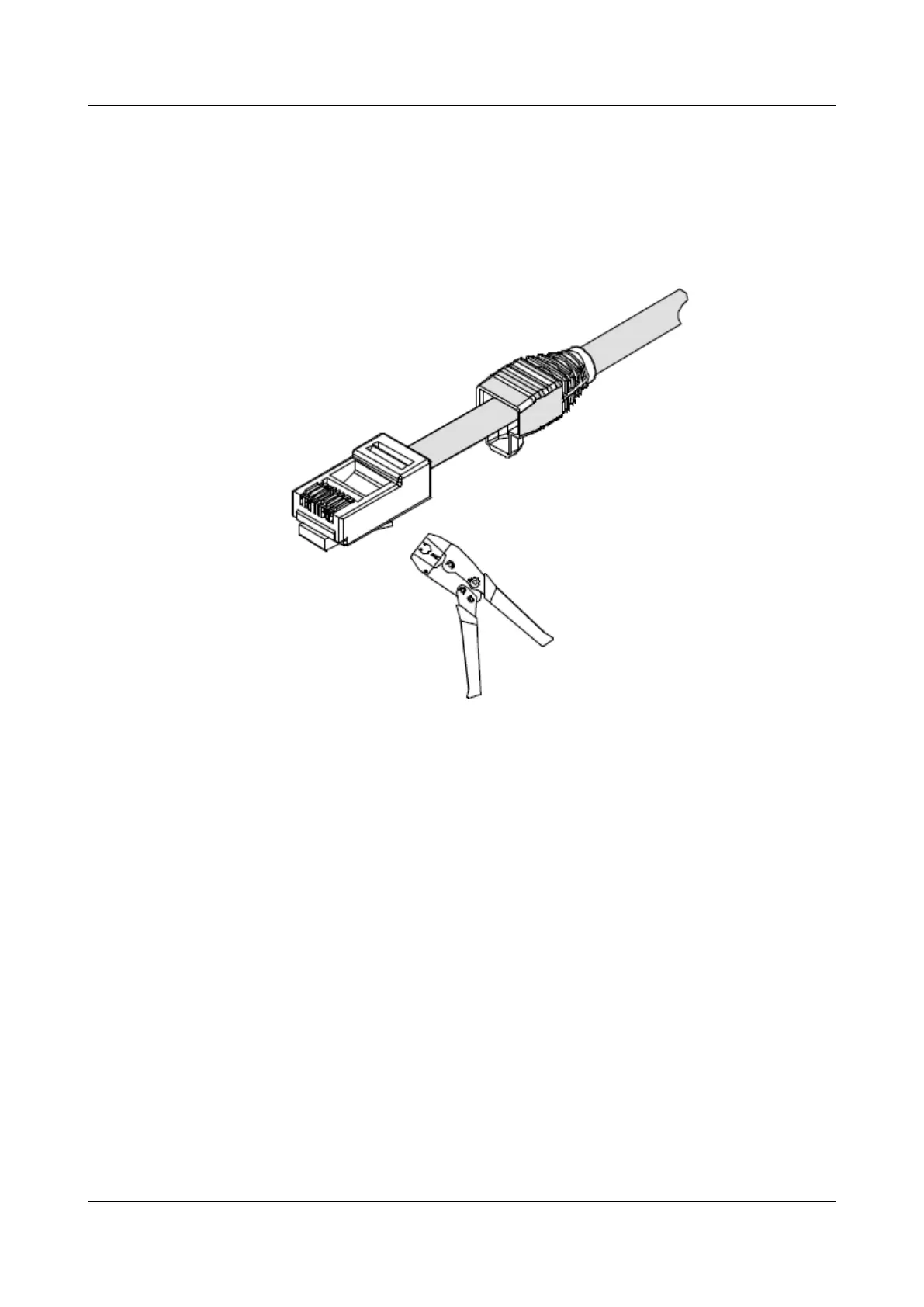

Figure 5-73 Crimping the connector
Step 7 Move the connector jacket to the connector body to wrap the connector shell, as shown in
Figure 5-74.
